Deceleration Sensor (W/Abs): Components

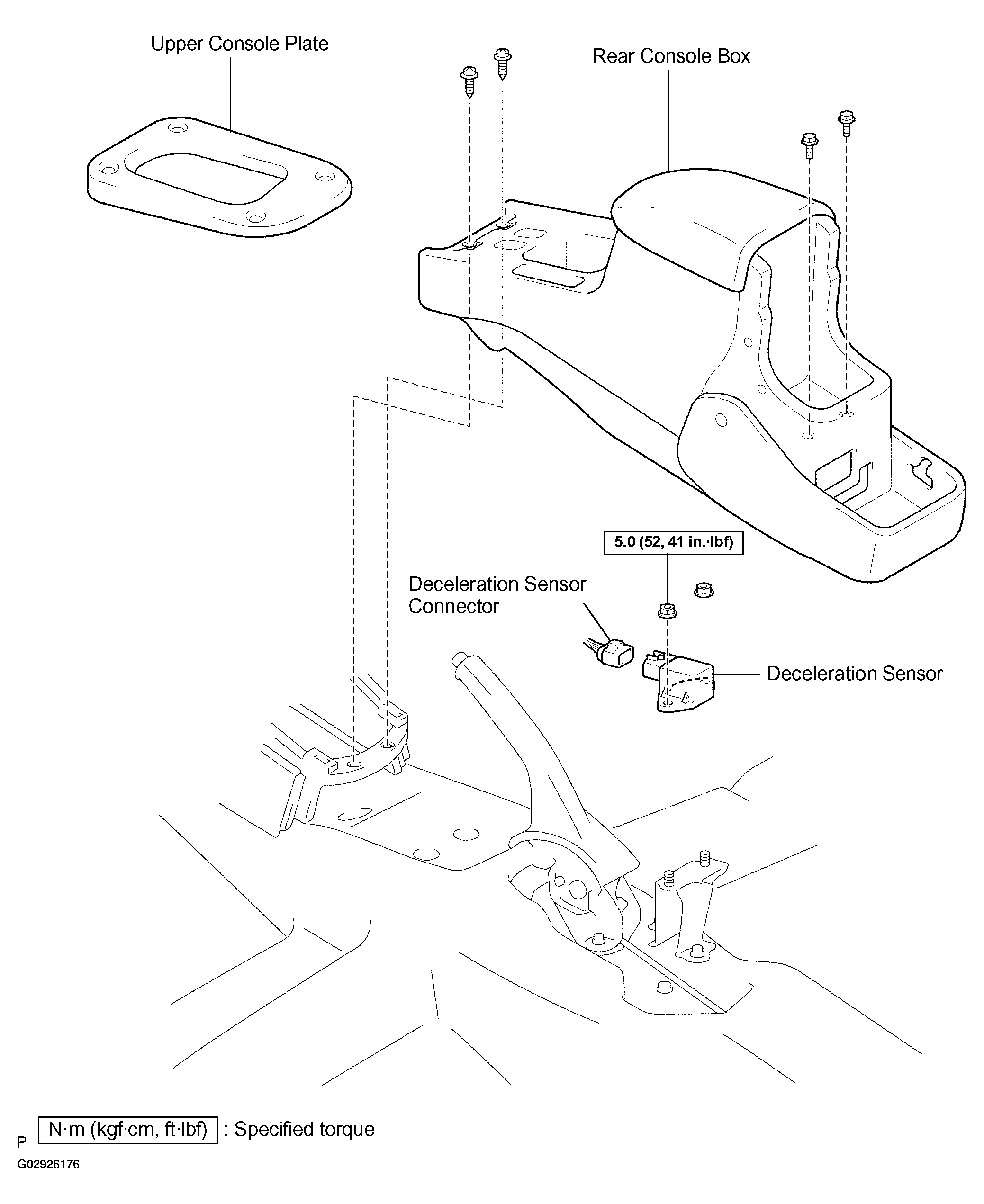

Fig 1: Locating Deceleration Sensor (W/ABS) Components

G02926176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
