Component Locations
WARNING: This page is about a different car, the 2003 Lexus GS 430, 2003 Lexus GS 300, 2002 Lexus GS 430, and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

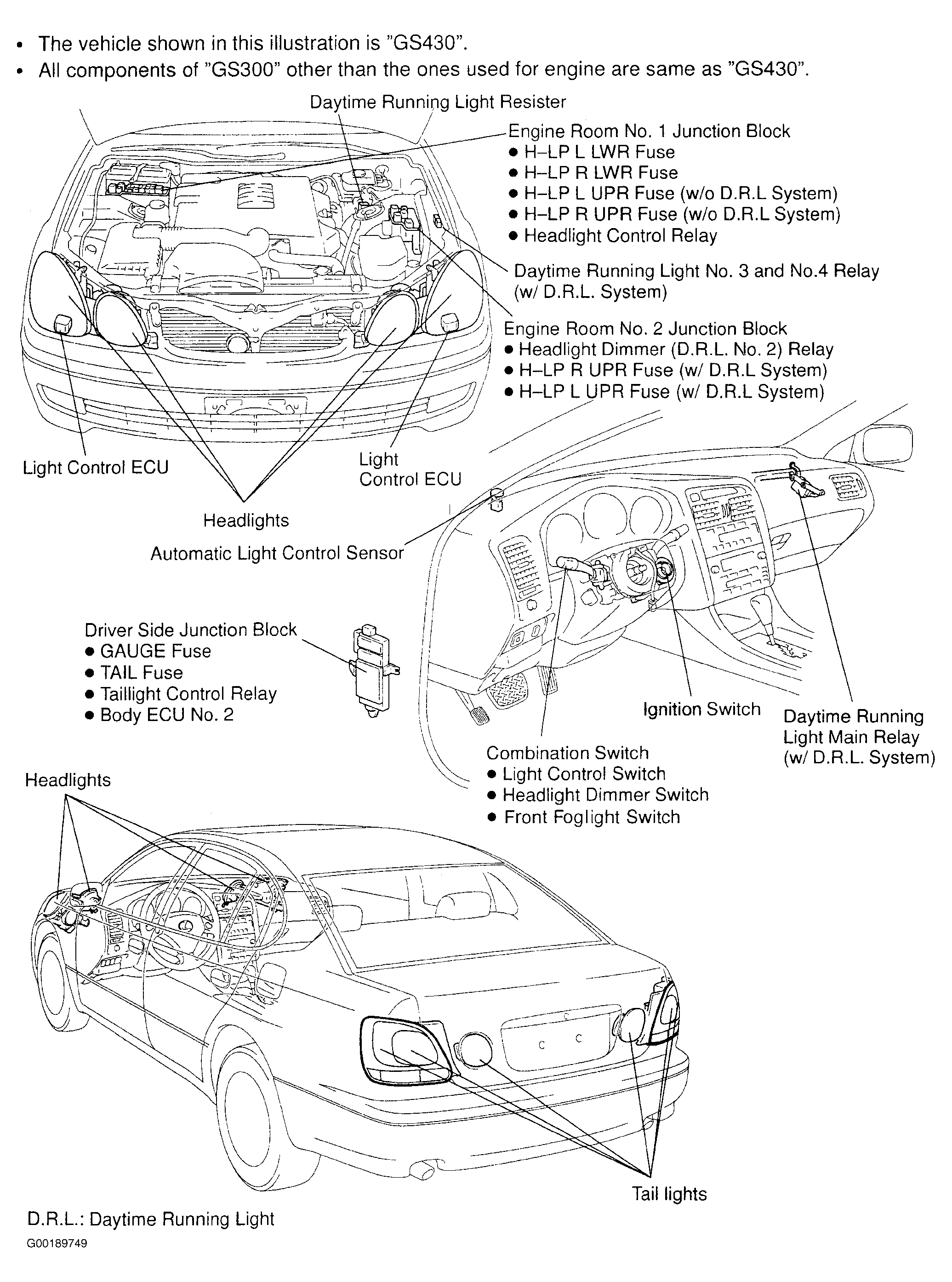

| Automatic Light Control Sensor | Fig 1 |
| Body ECU No. 1 | In Passenger Side Junction Block Behind Right Kick Panel |
| Body ECU No. 2 | In Driver Side Junction Block Behind Left Kick Panel |
| Combination Switch | Fig 1 |
| Daytime Running Light Main Relay (W/ DRL System) | Fig 1 |
| Daytime Running Light No. 3 & No. 4 Relay (W/ DRL System) | Fig 1 |
| Daytime Running Light Resister | Fig 1 |
| DOME Fuse | In Passenger Side Junction Block Behind Right Kick Panel |
| Driver Side Junction Block | Fig 1 |
| Engine Room No. 1 Junction Block | Fig 1 |
| ECU-IG Fuse | In Driver Side Junction Block Behind Left Kick Panel |
| FOG Fuse | In Driver Side Junction Block Behind Left Kick Panel |
| Fog Light Relay | In Driver Side Junction Block Behind Left Kick Panel |
| GAUGE Fuse | In Driver Side Junction Block Behind Left Kick Panel |

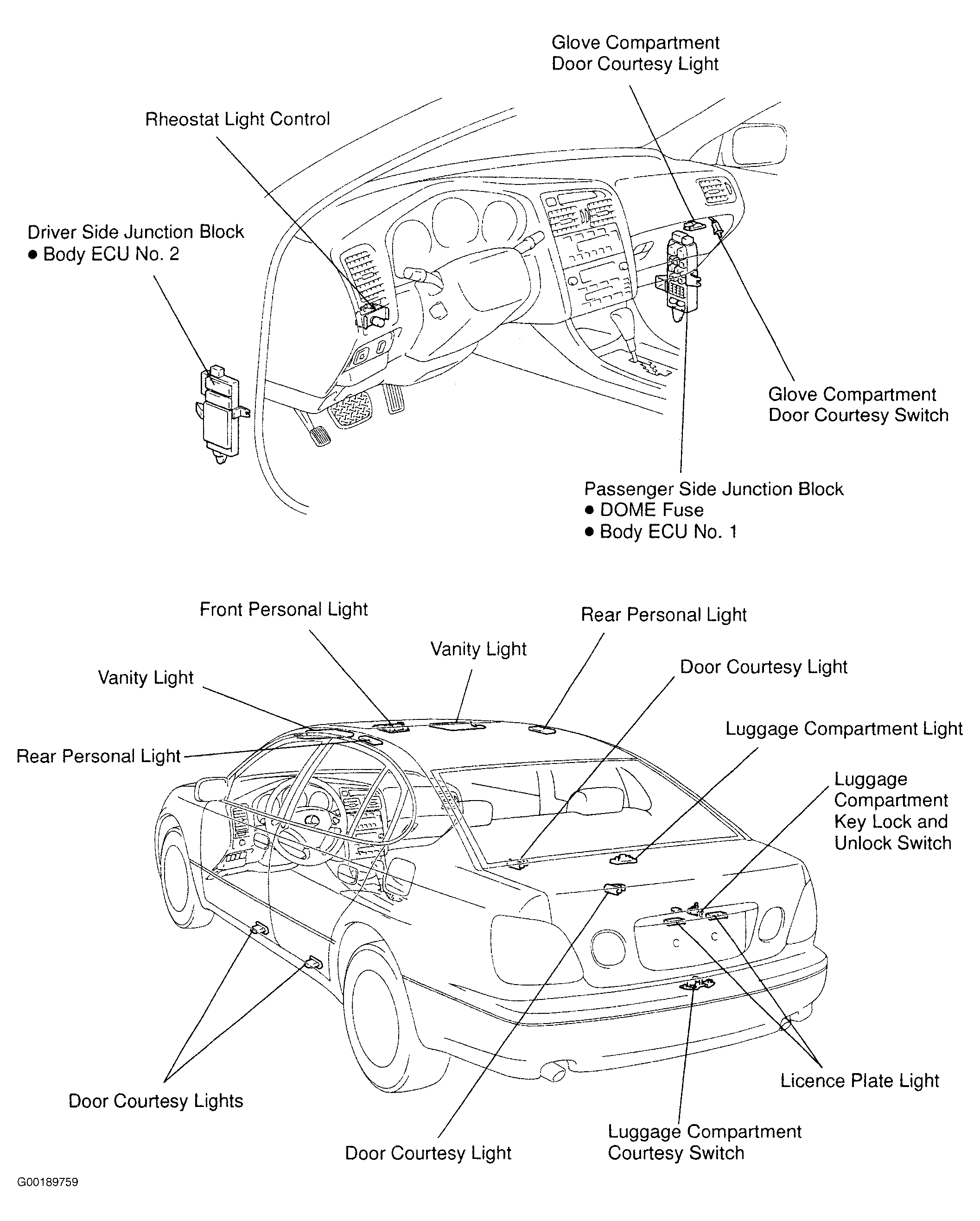

| Glove Compartment Door Courtesy Switch | Fig 2 |
| H-LP L LWR Fuse & H-LP R LWR Fuse | In Engine Room No. 1 Junction Block |
| H-LP L UPR Fuse & H-LP R UPR Fuse (W/O DRL System) | In Engine Room No. 1 Junction Block |
| Headlights | Fig 1 |

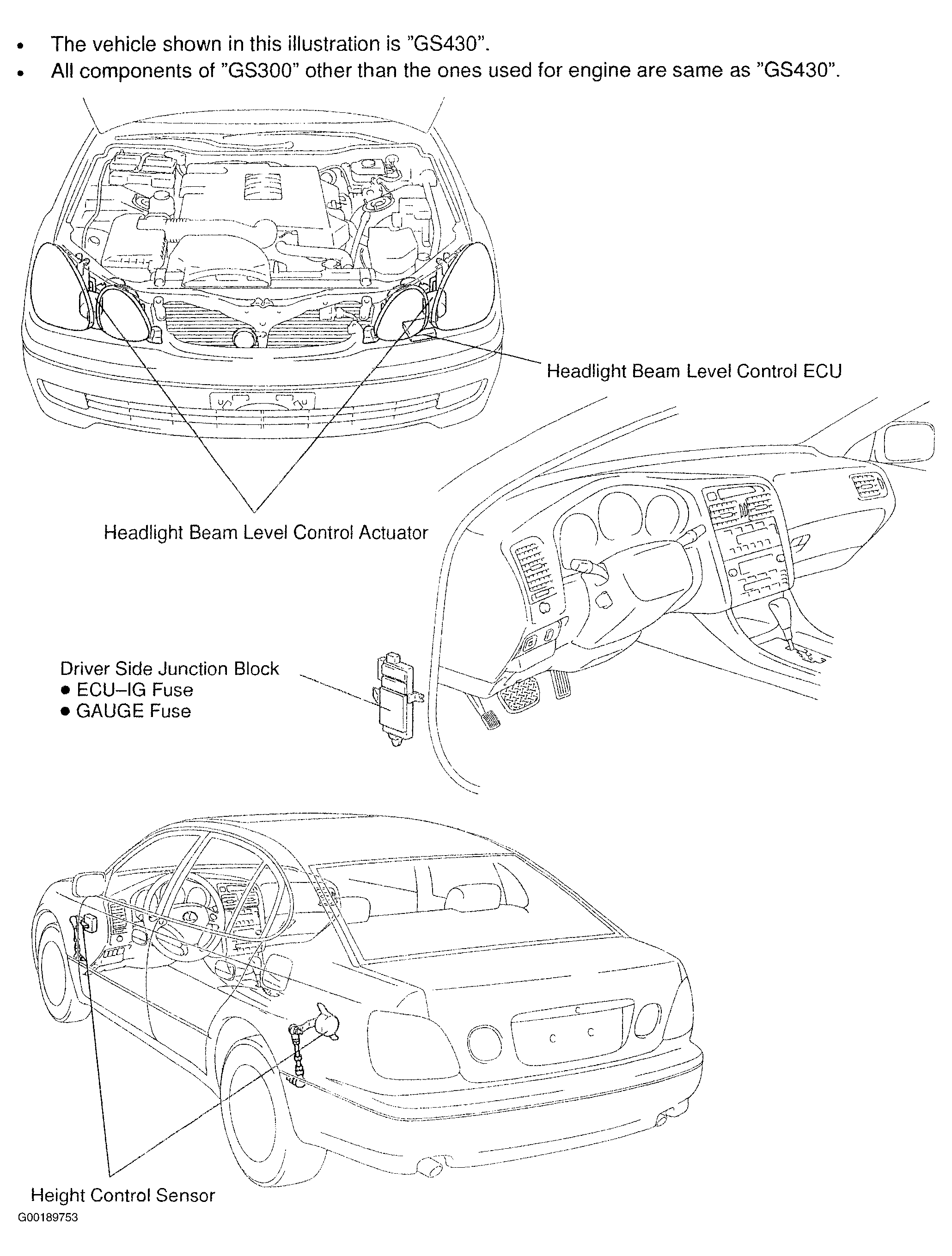

| Headlight Beam Level Control Actuator | Fig 3 |
| Headlight Beam Level Control ECU | Fig 3 |
| Headlight Control Relay | In Engine Room No. 1 Junction Block |
| Height Control Sensor | Fig 3 |
| Ignition Switch | Fig 1 |
| Light Control ECU | Fig 1 |
| Luggage Compartment Courtesy Switch | Fig 2 |
| Luggage Compartment Key Lock & Unlock Switch | Fig 2 |
| Passenger Side Junction Block | Fig 2 |
| Rheostat Light Control | Fig 2 |
| Taillight Control Relay | In Driver Side Junction Block Behind Left Kick Panel |
| TAIL Fuse | In Driver Side Junction Block Behind Left Kick Panel |
