Oxygen Sensor Location (2AZ-FE PZEV)

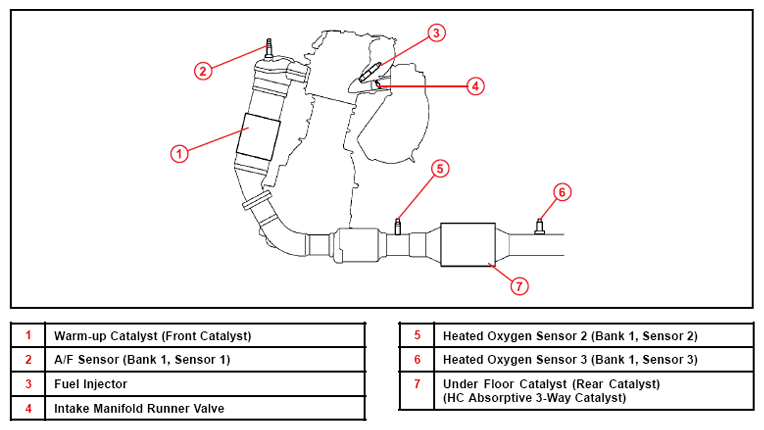

Fig 1: A/F And O2 Sensor Identification - 2AZ-FE PZEV

G06375695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
