Key Unlock Warning Switch Circuit: Wiring Diagram

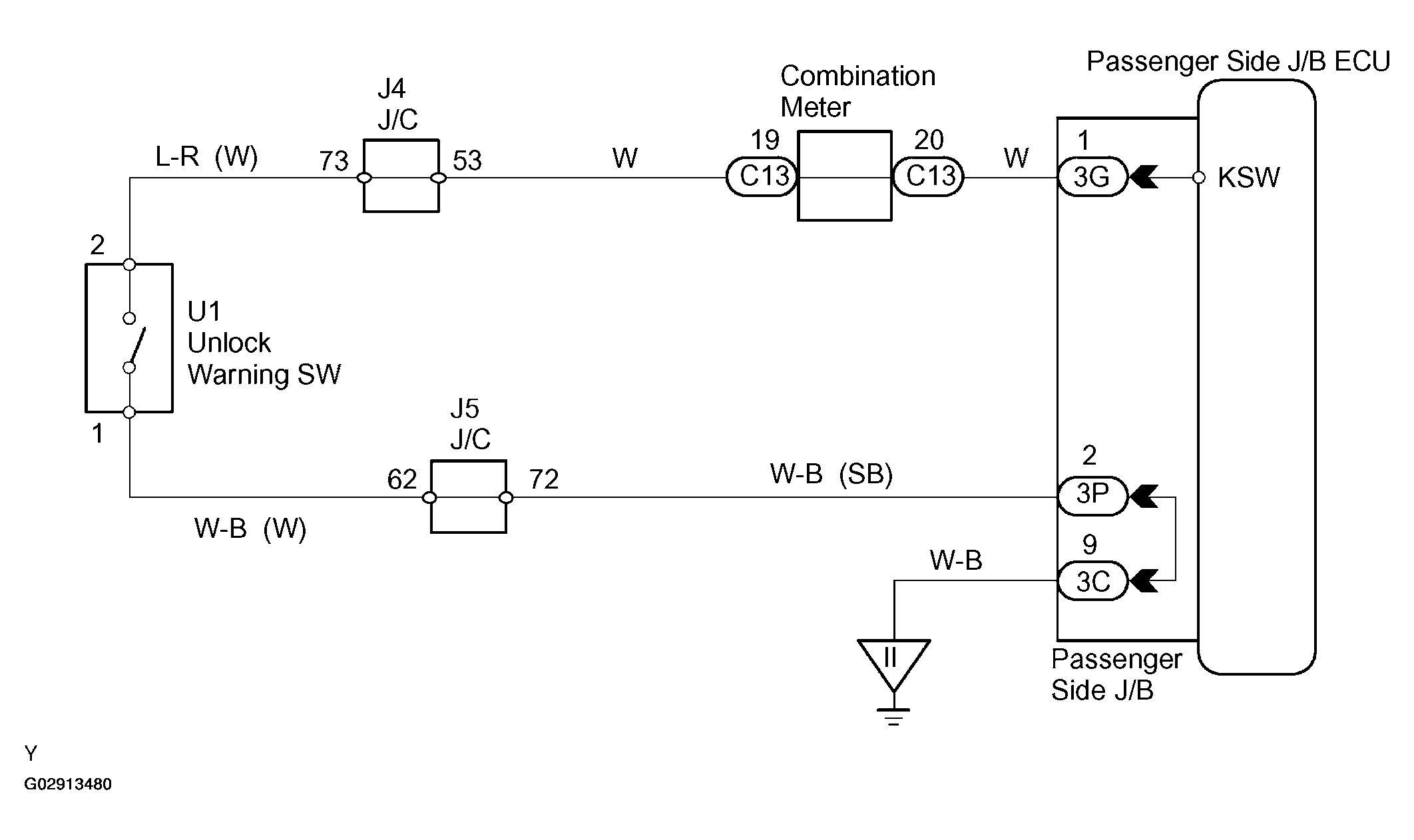

Fig 1: Wiring Diagram Of Key Unlock Warning Switch Circuit

G02913480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
