Automatic Transmission Shift Control System - Diagnosis
>>
Location
Automatic Transmission Shift Control System - Diagnosis: Location

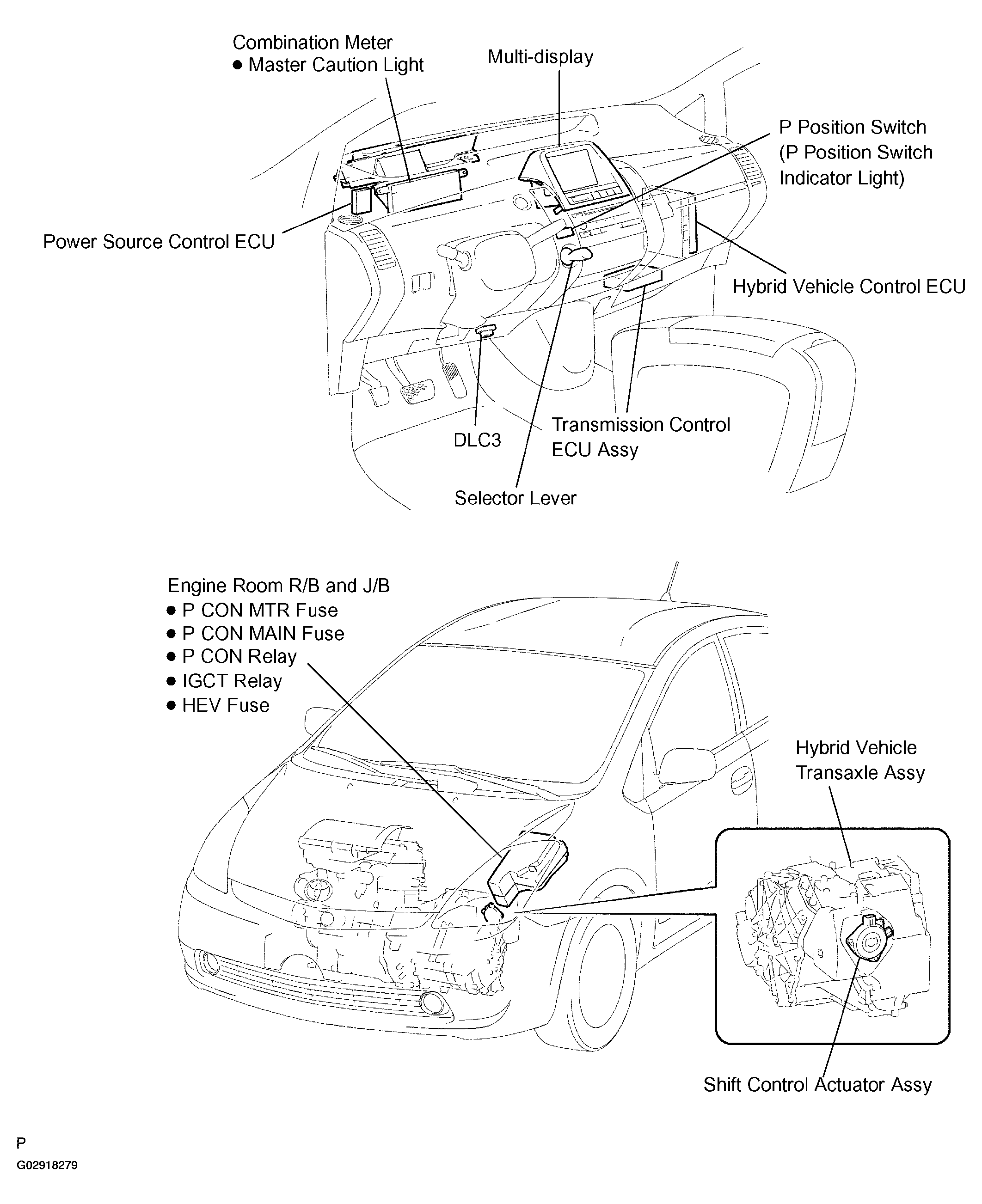

Fig 1: Locating Shift Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
