Steering Gear ASSY: Components

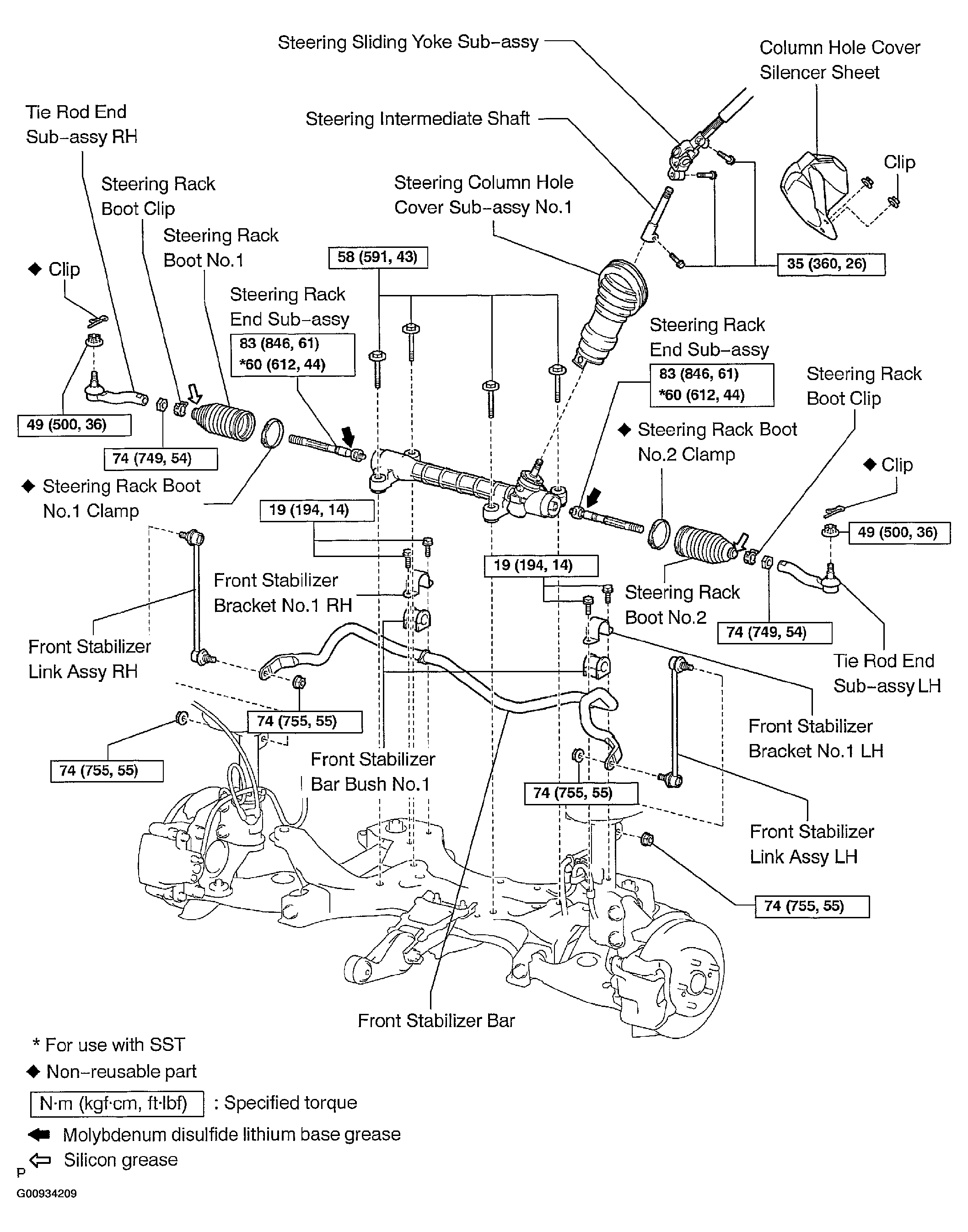

Fig 1: Identifying Steering Gear Assy Components

G00934209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
