Home >> Toyota >> 2004 >> Prius >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts >> Rear Seat Belt >> Components

Rear Seat Belt: Components

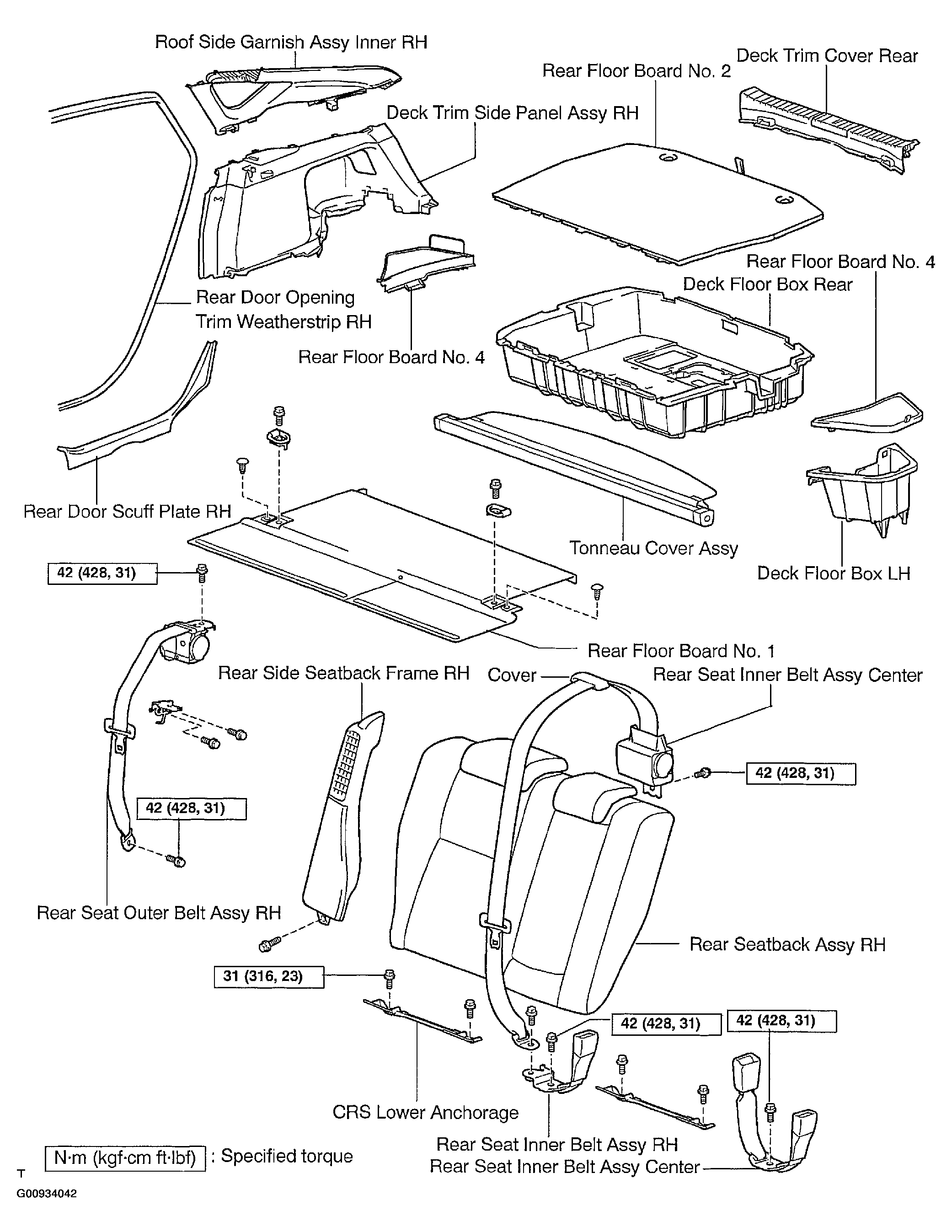

Fig 1: Identifying Rear Seat Belt Components

G00934042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
