Engine Control System (SFI) - Diagnosis: Location

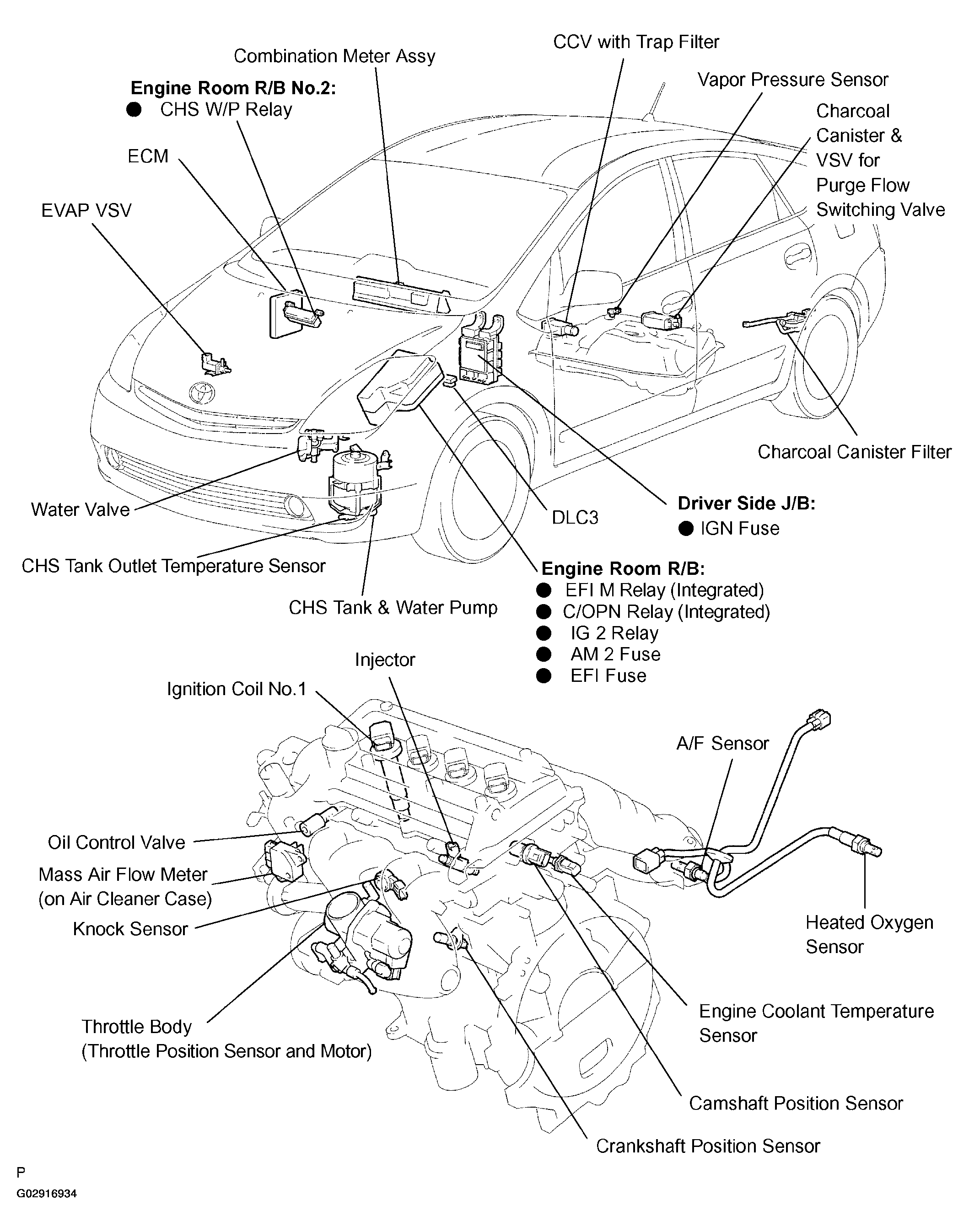

Fig 1: SFI System Components

G02916934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
