List Of Disable A Monitor

HINT:

The table below shows the ECM monitoring status for the components listed in the top of the table when the DTCs on the left of the table are set.

As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.

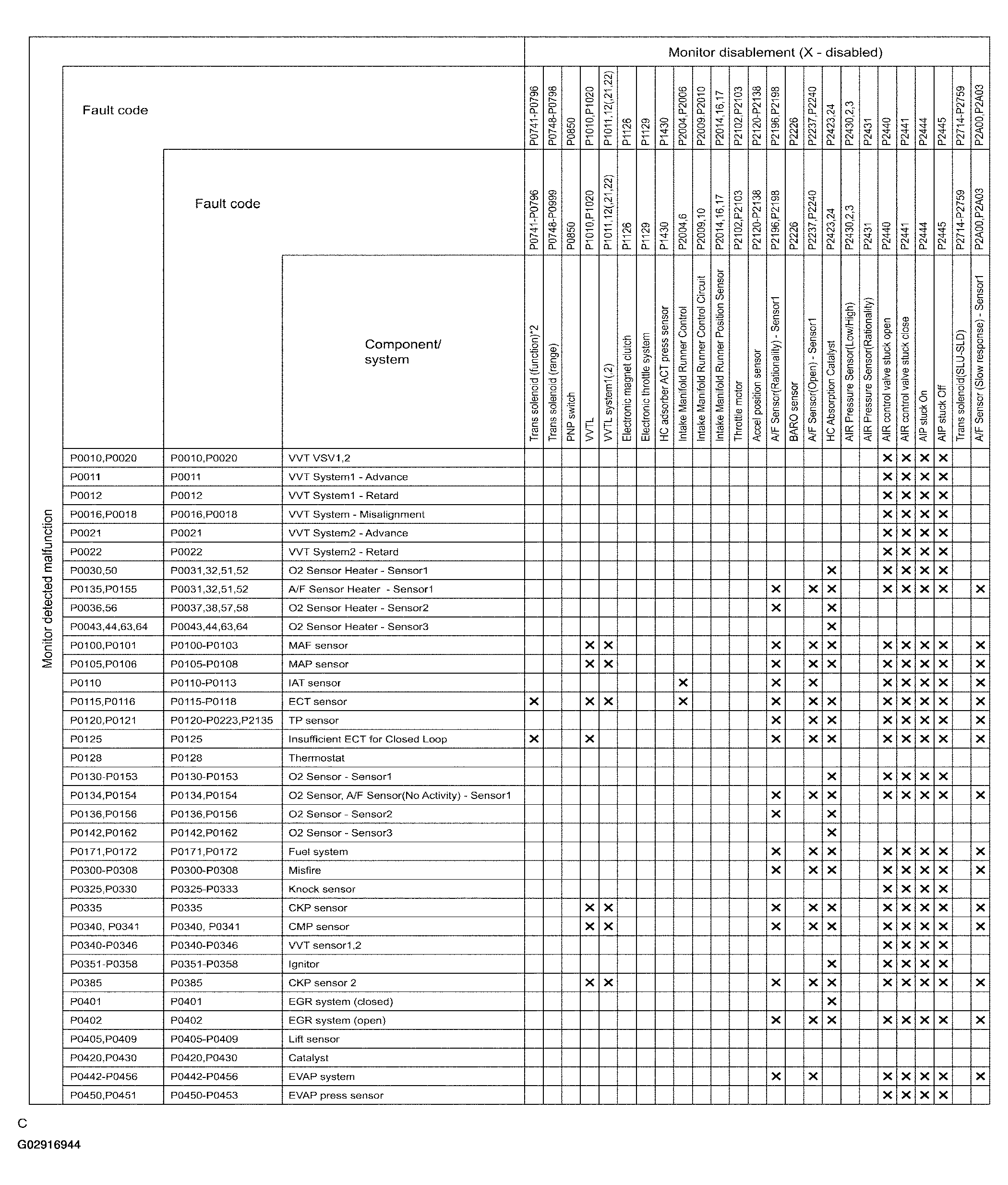

Fig 1: Monitor Disablement Table (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

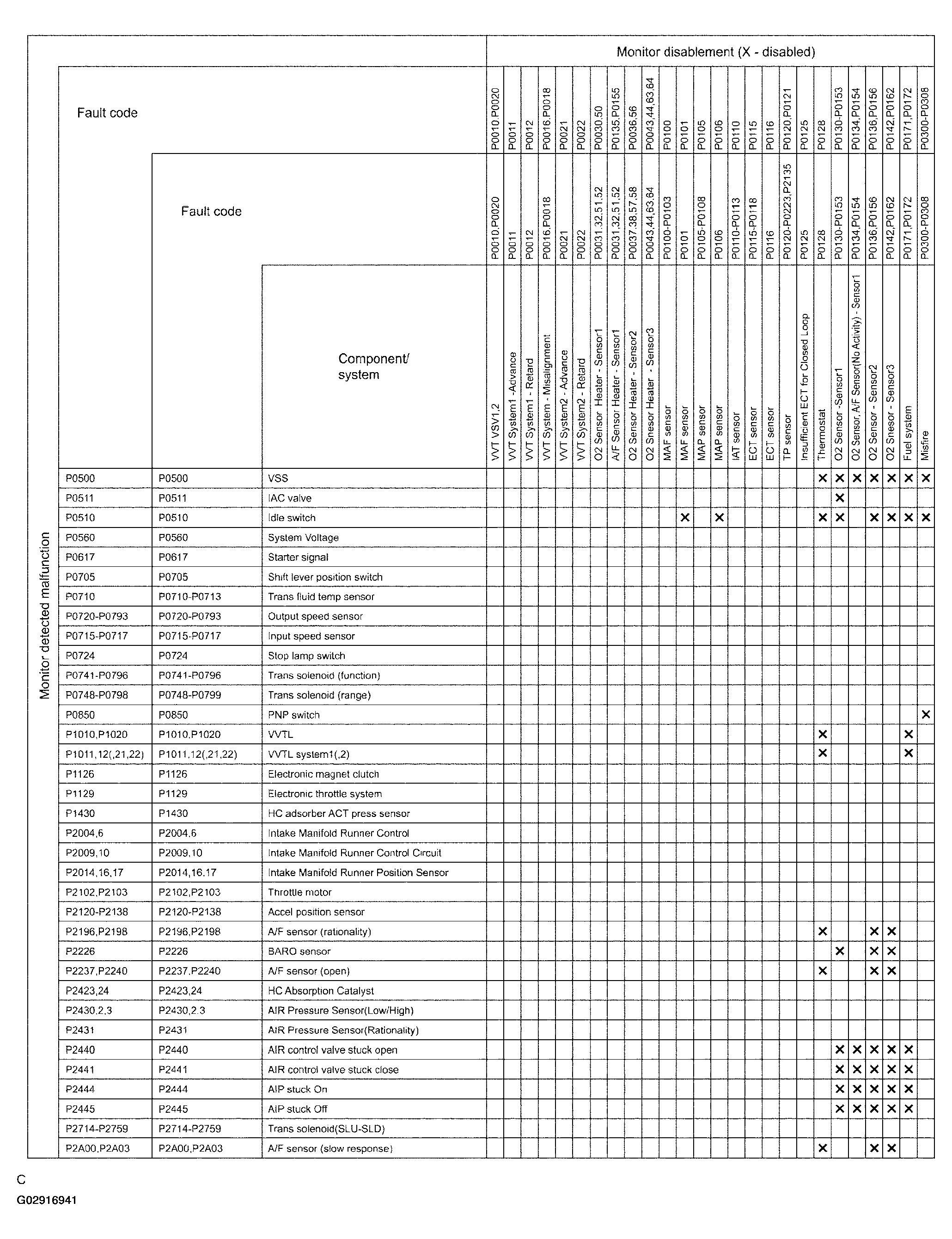

Fig 2: Monitor Disablement Table (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

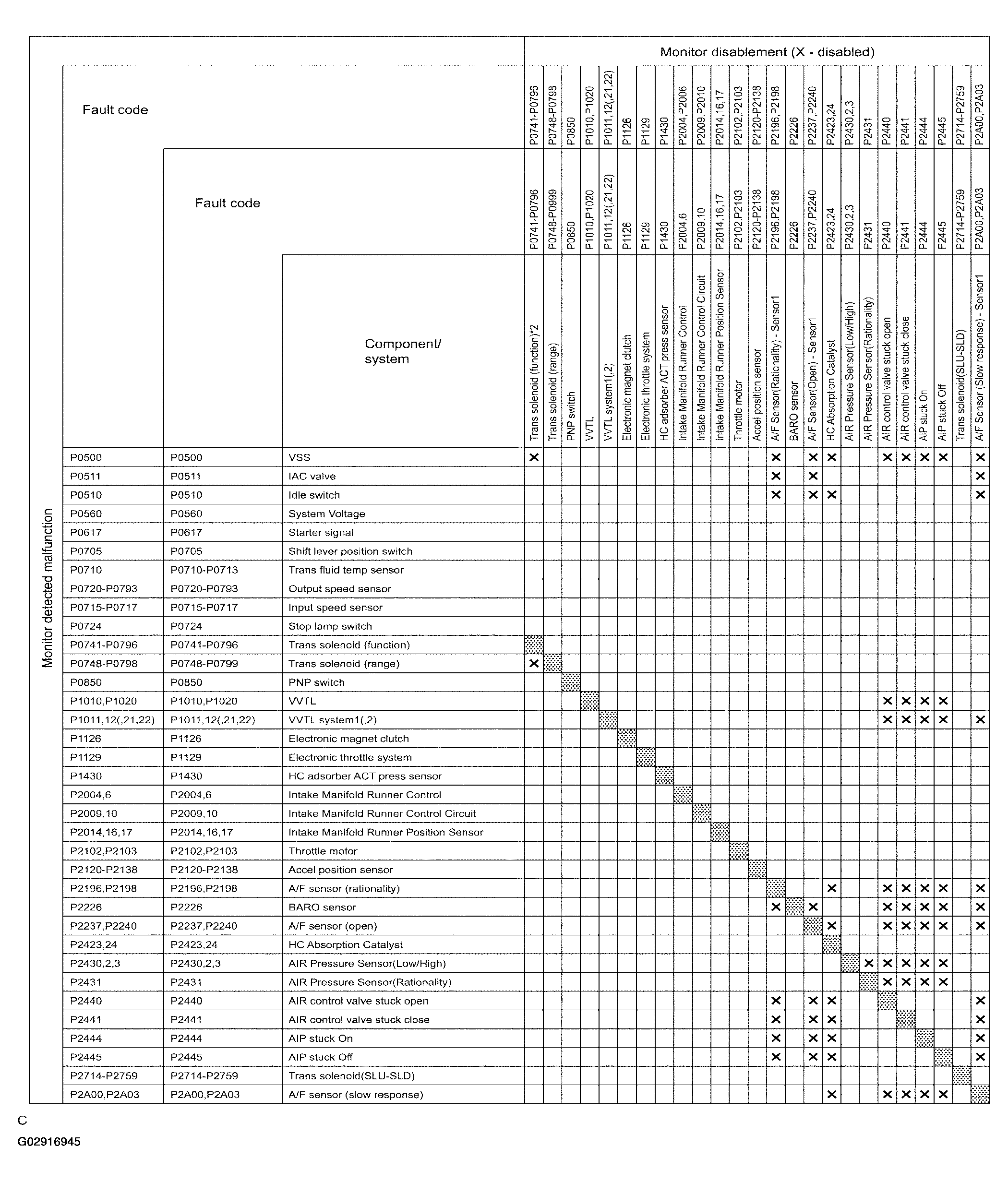

Fig 3: Monitor Disablement Table (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

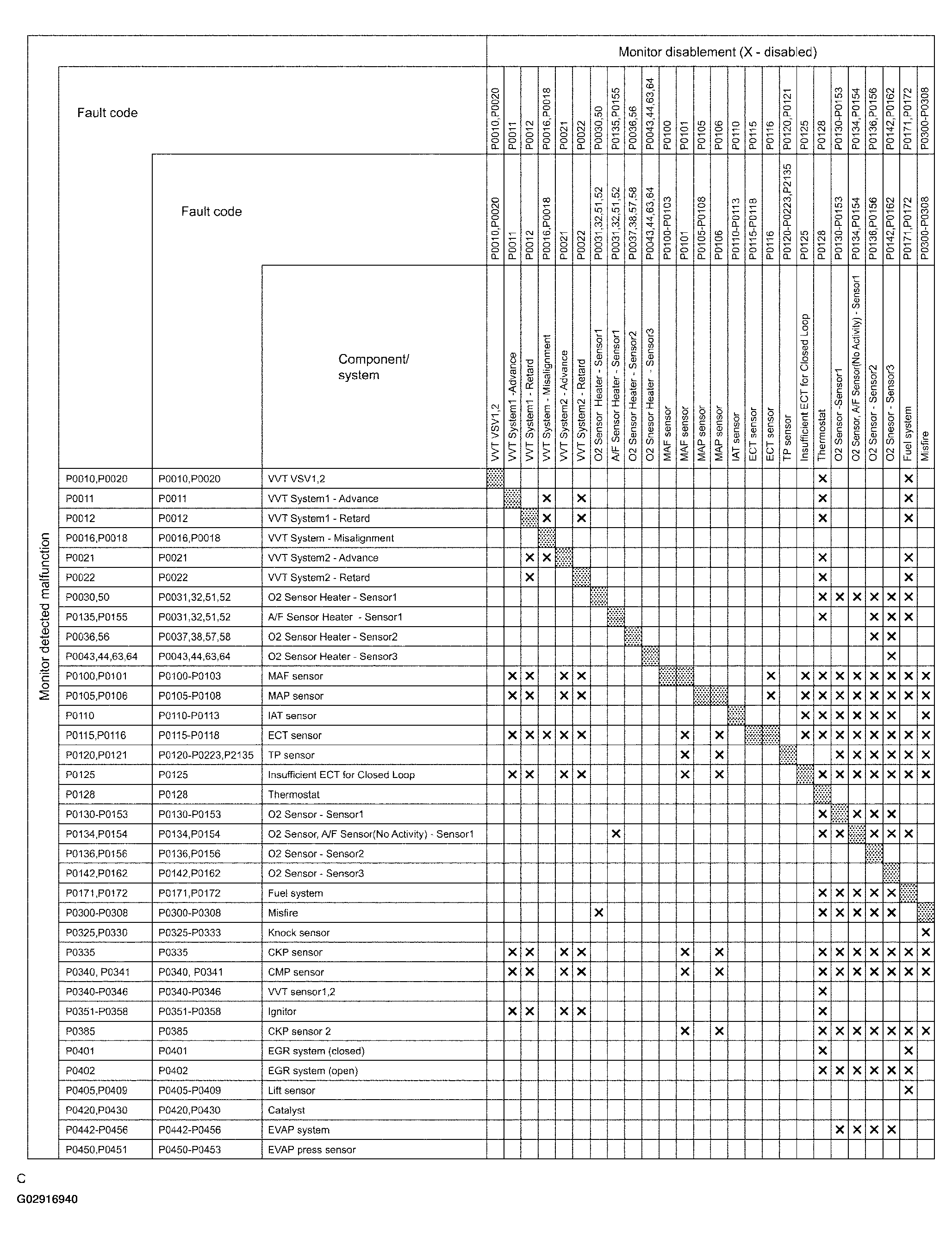

Fig 4: Monitor Disablement Table (4 Of 6)

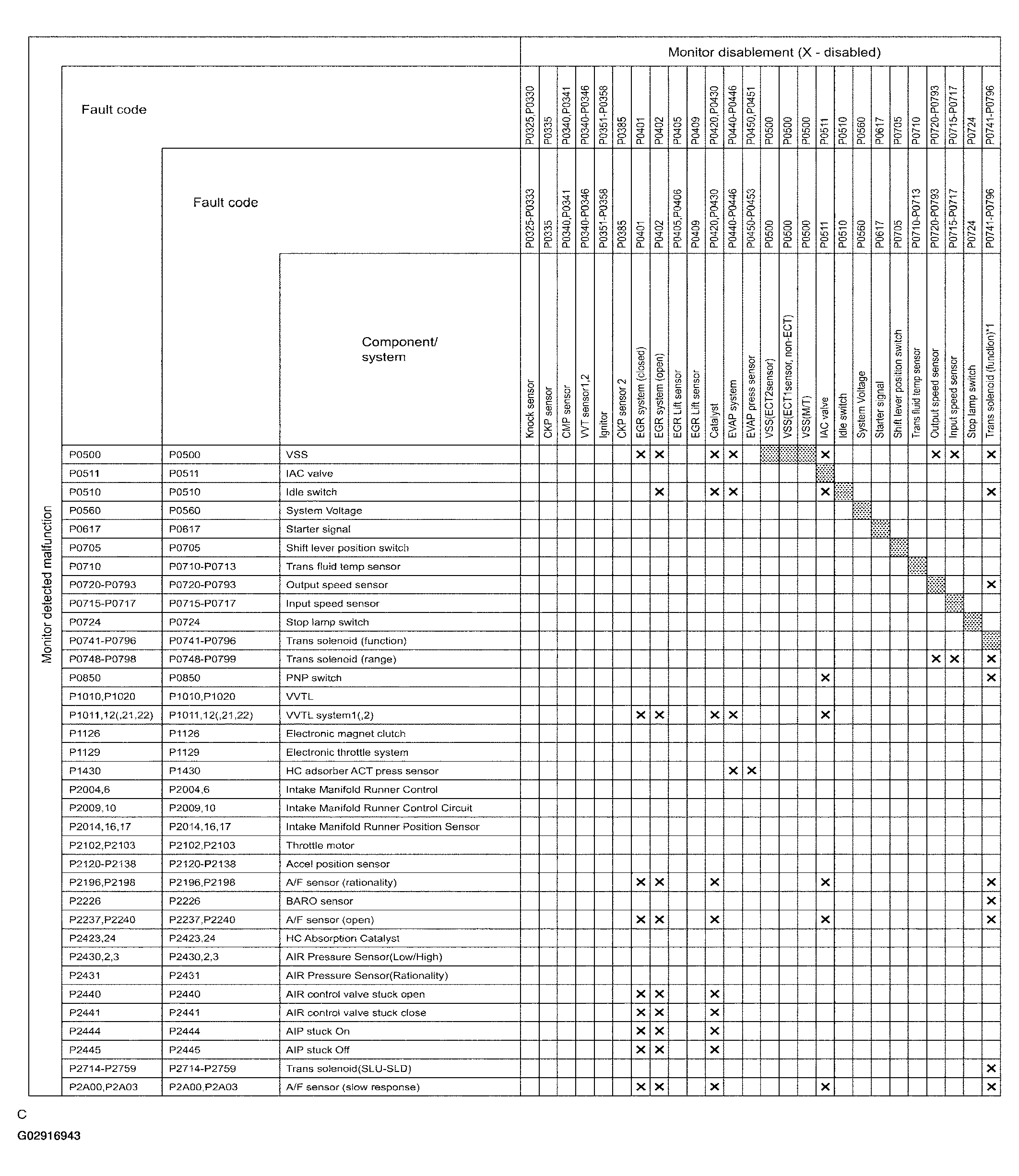

Fig 5: Monitor Disablement Table (5 Of 6)

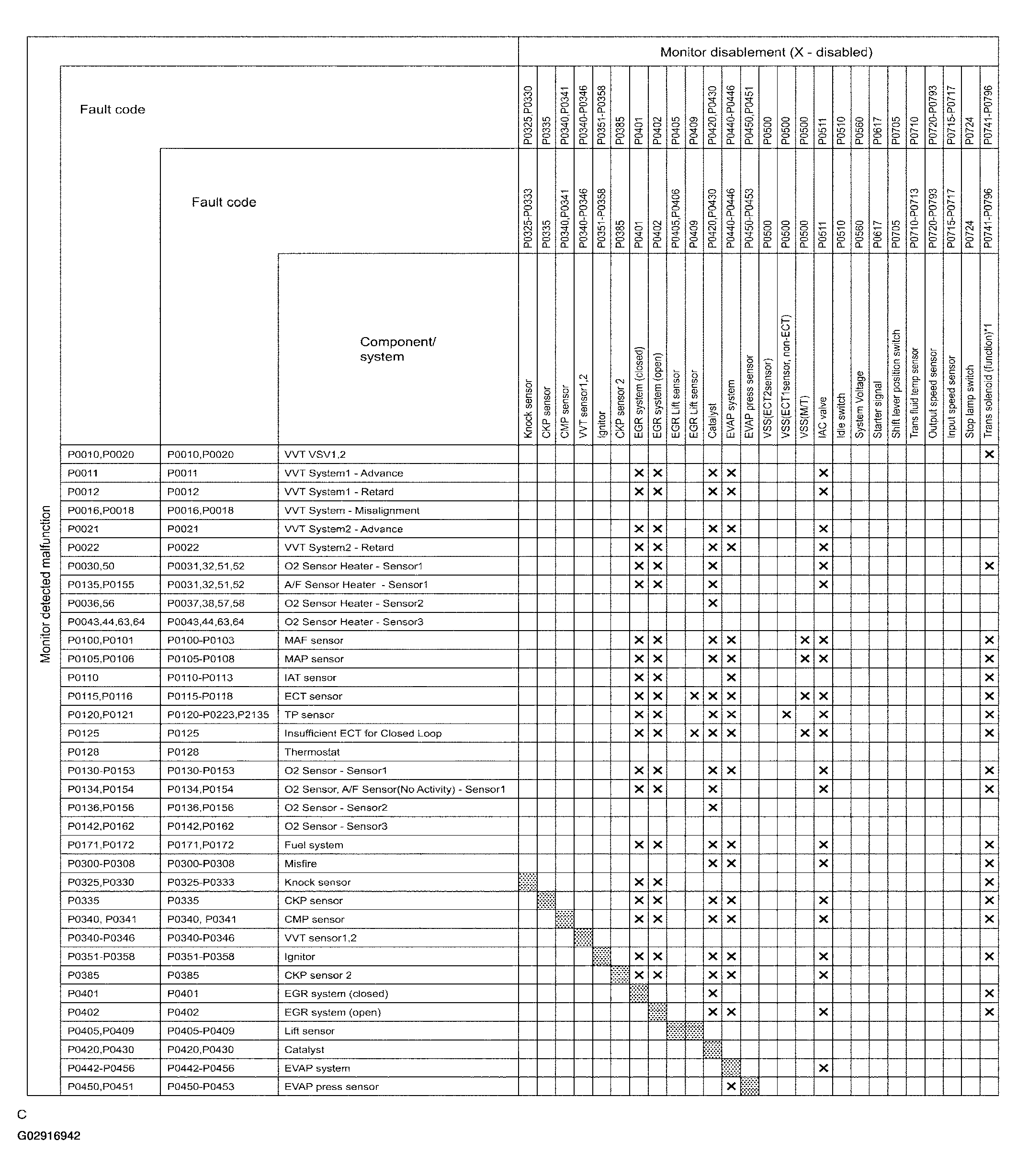

Fig 6: Monitor Disablement Table (6 Of 6)
