Fuel Pump Control Circuit: Wiring Diagram

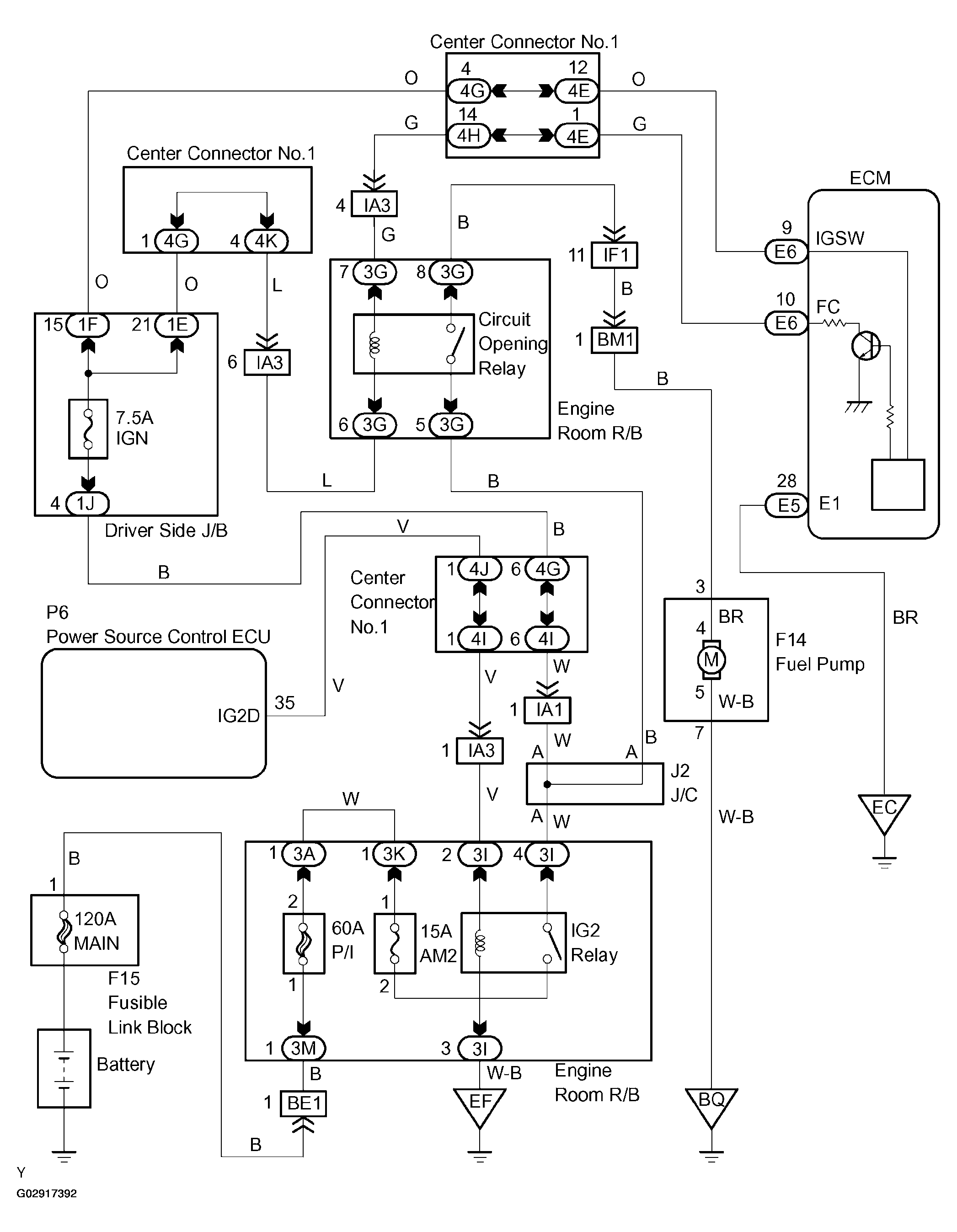

Fig 1: Fuel Pump Control Circuit Wiring Diagram

G02917392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
