ECM Power Source Circuit: Wiring Diagram

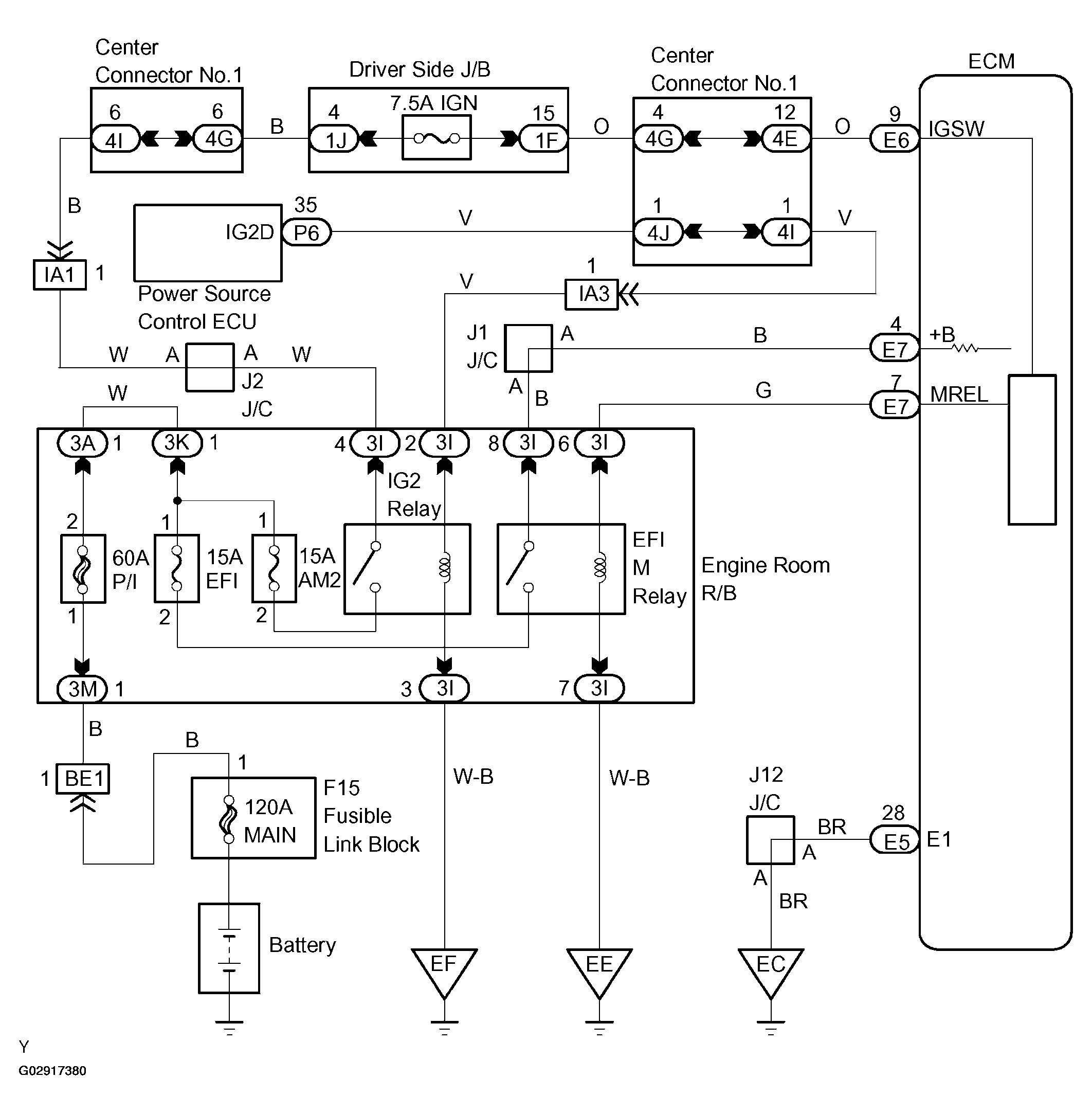

Fig 1: ECM Power Source Circuit Diagram

G02917380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
