Chain Sub-ASSY (1NZ-FXE): Components

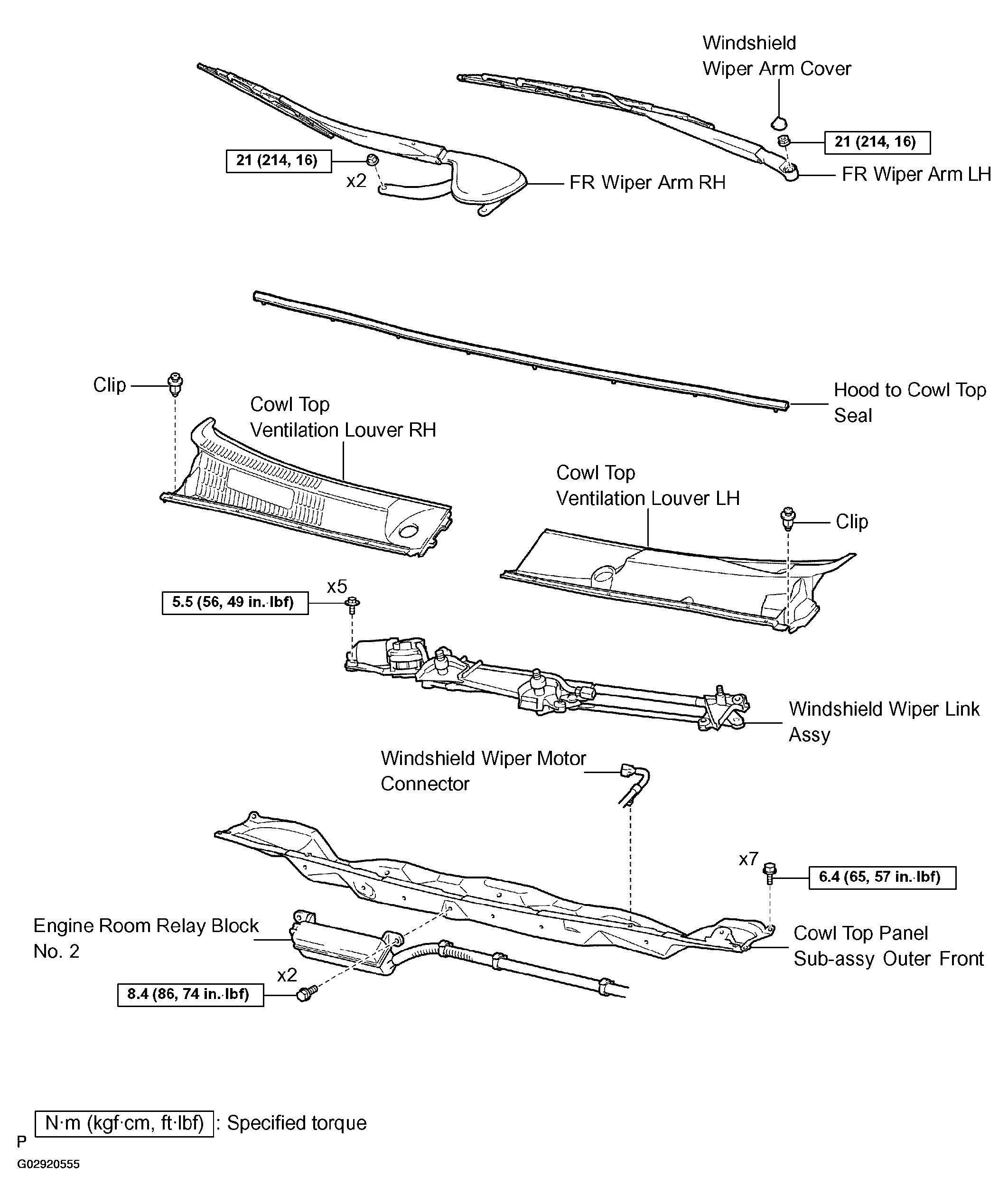

Fig 1: Disassembling Chain Sub-Assy -(1NZ-FXE) Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

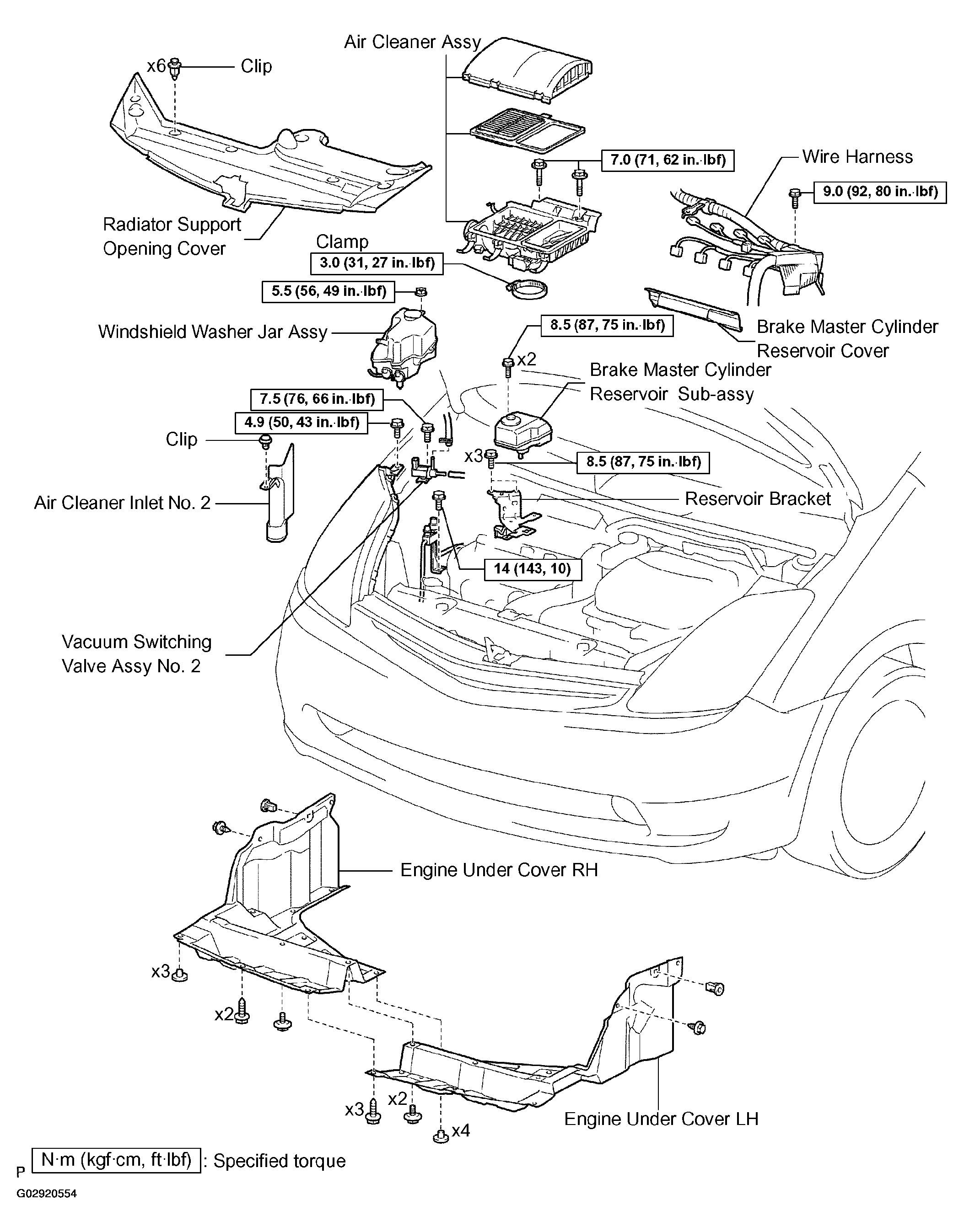

Fig 2: Disassembling Chain Sub-Assy -(1NZ-FXE) Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

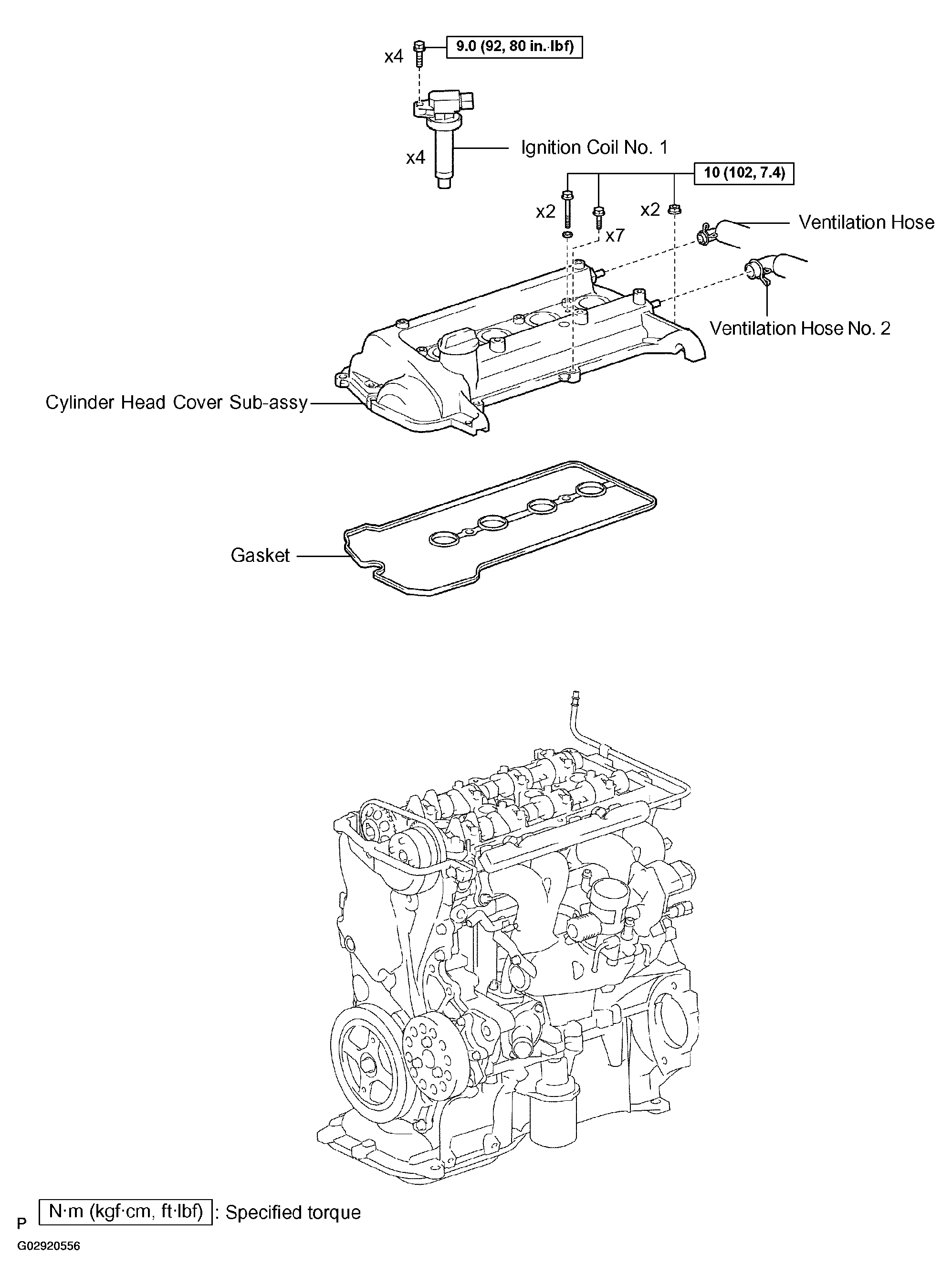

Fig 3: Disassembling Chain Sub-Assy -(1NZ-FXE) Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

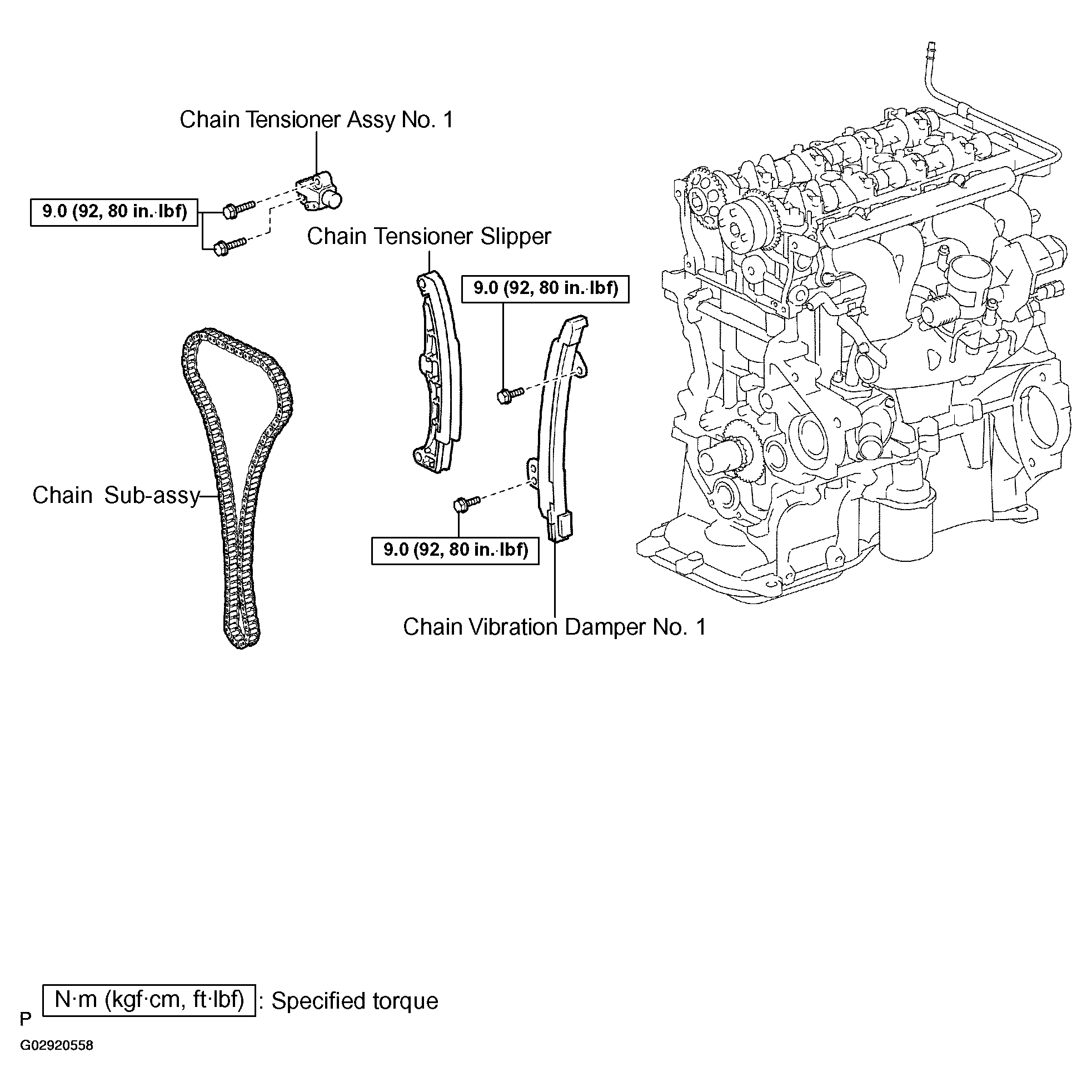

Fig 4: Disassembling Chain Sub-Assy -(1NZ-FXE) Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

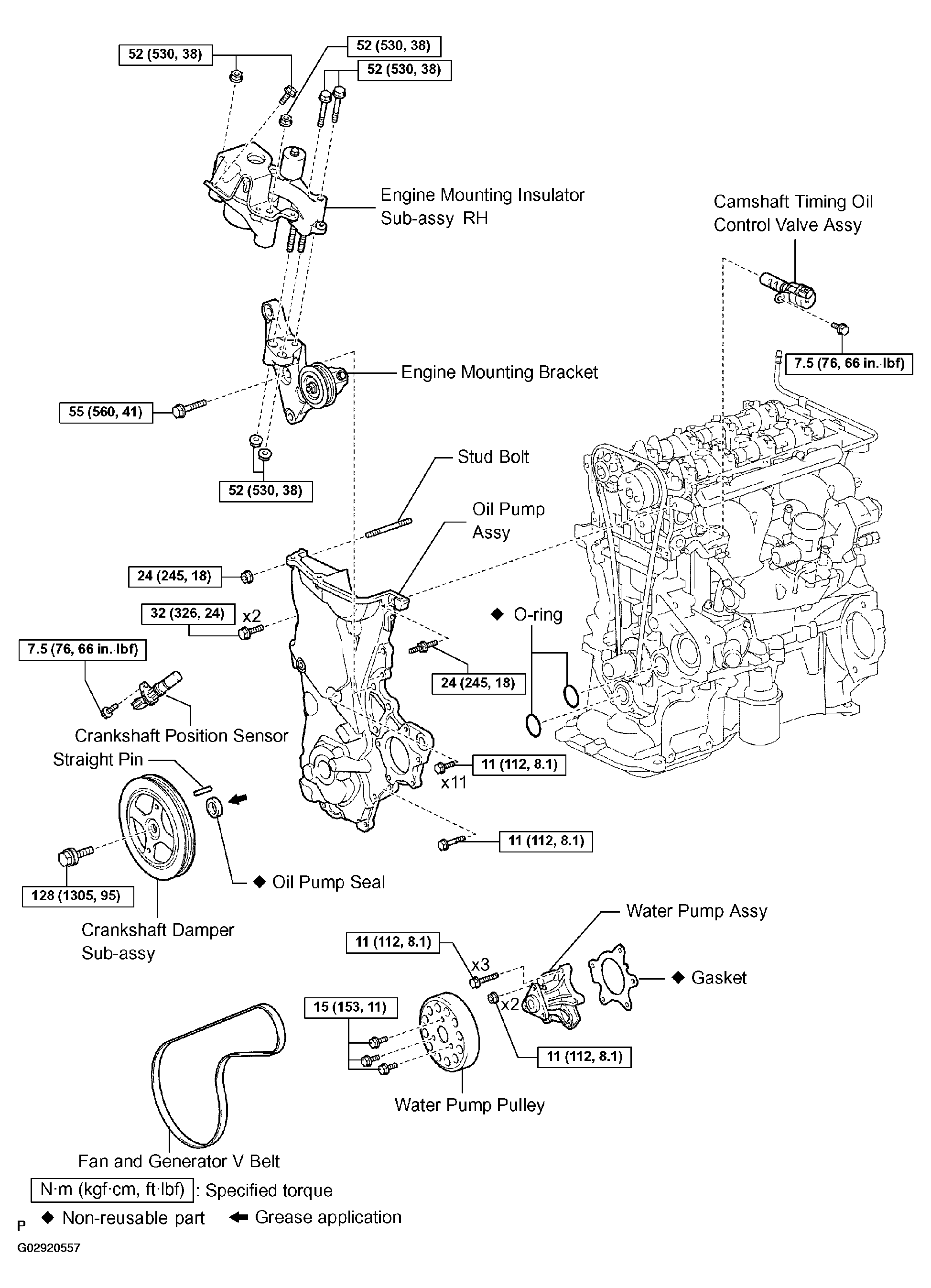

Fig 5: Disassembling Chain Sub-Assy -(1NZ-FXE) Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
