Push Button Start System - Diagnosis
>>
System Diagram
System Diagram

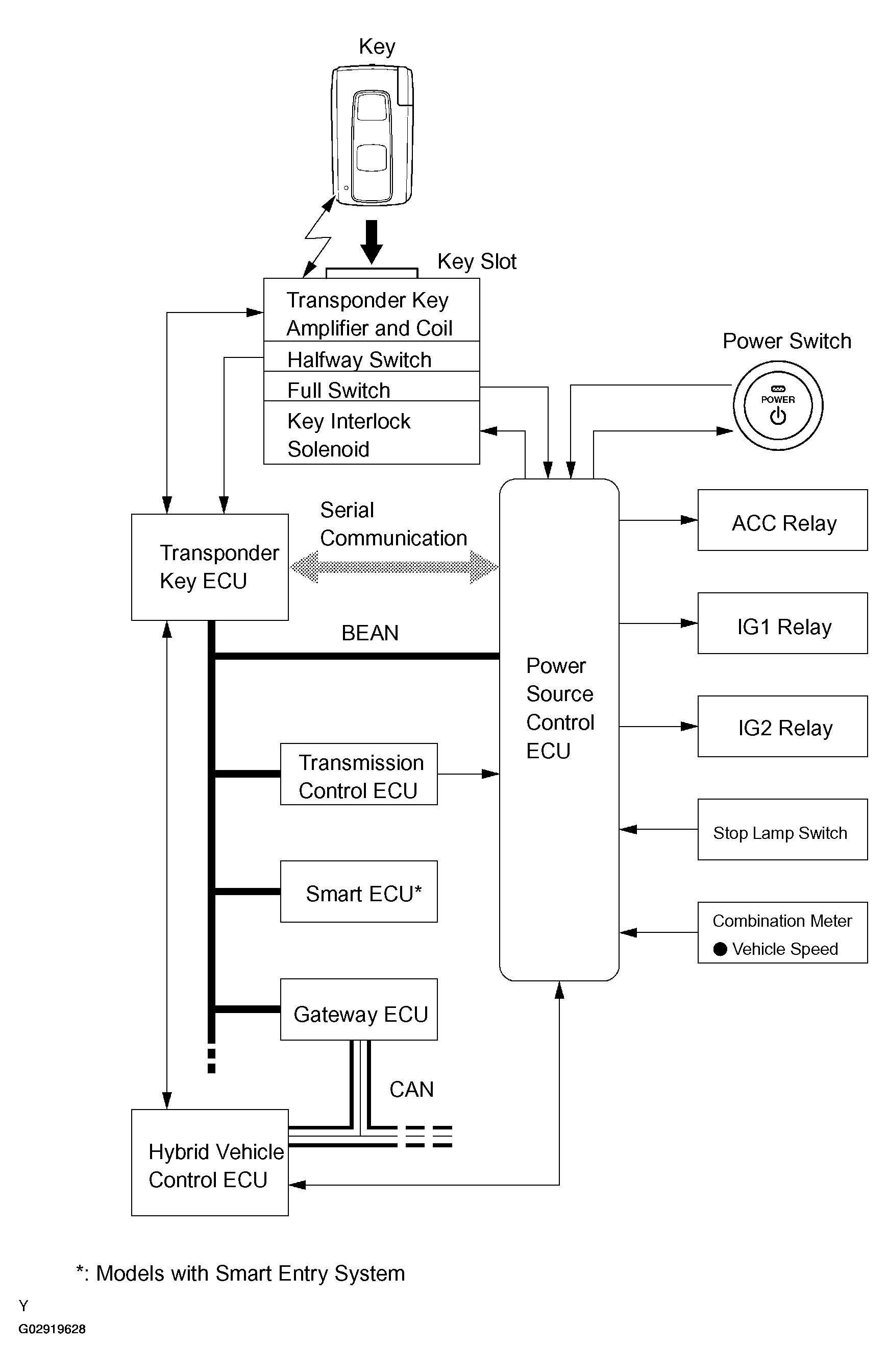

Fig 1: Diagram Of Push Button Start System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

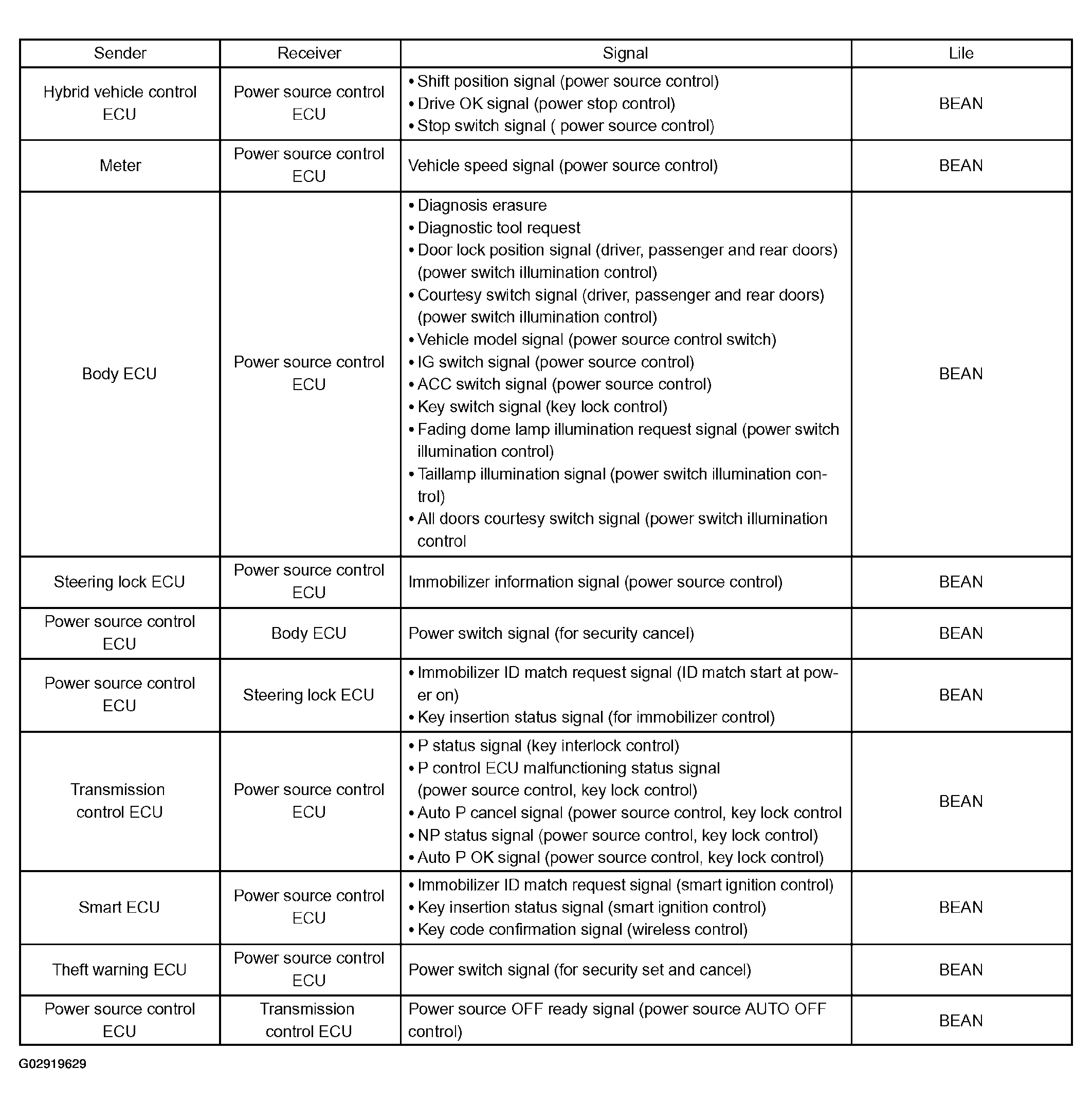

Fig 2: Receiver Signal Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
