Push Button Start System - Diagnosis: Location

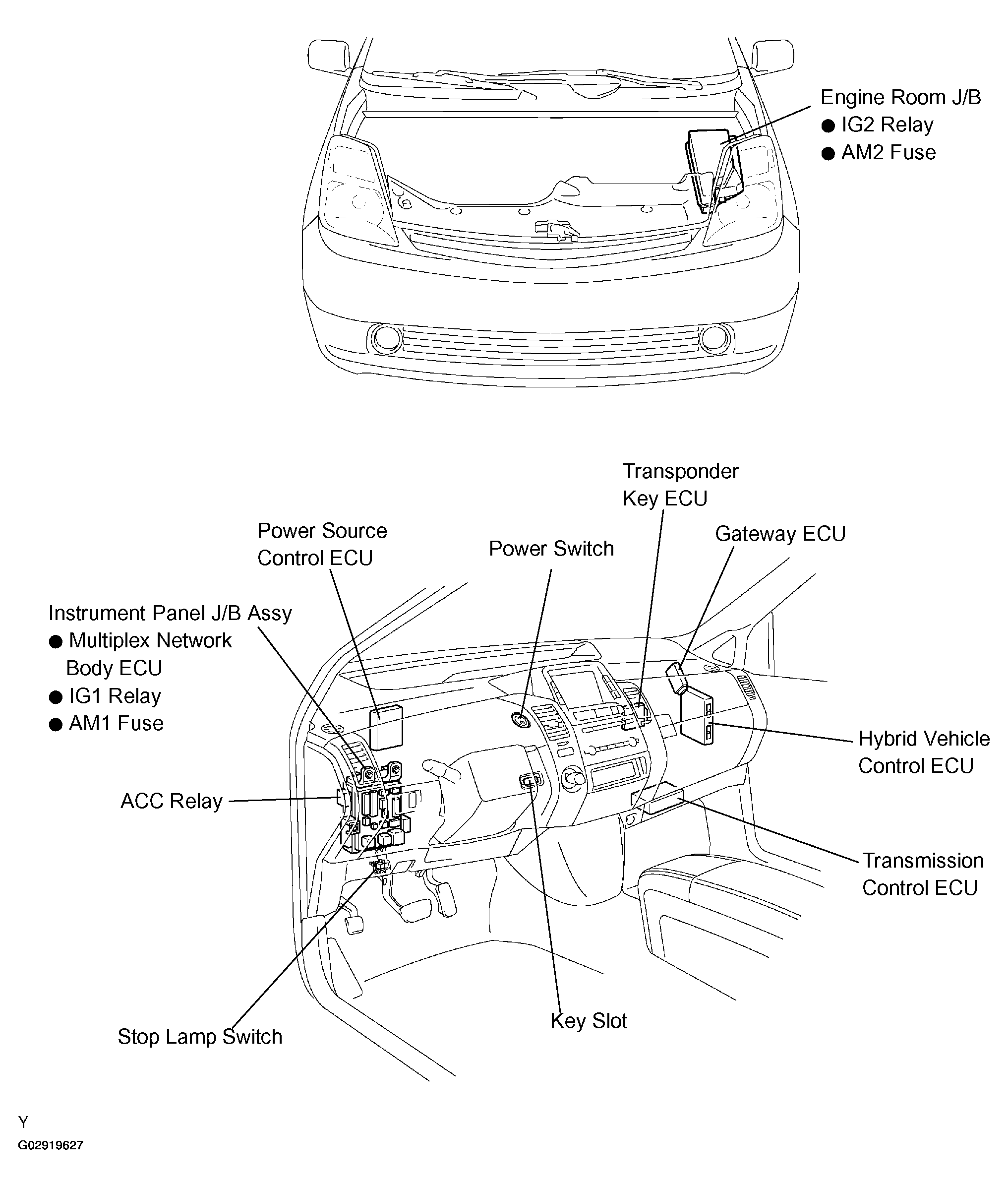

Fig 1: Location Pushbutton Start System Components

G02919627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
