Diagnostic Trouble Code Chart

  1. DTC CHECK

    If a malfunction code is displayed during the DTC check, check the suspected area listed for that code in the table below, and proceed to the appropriate page.

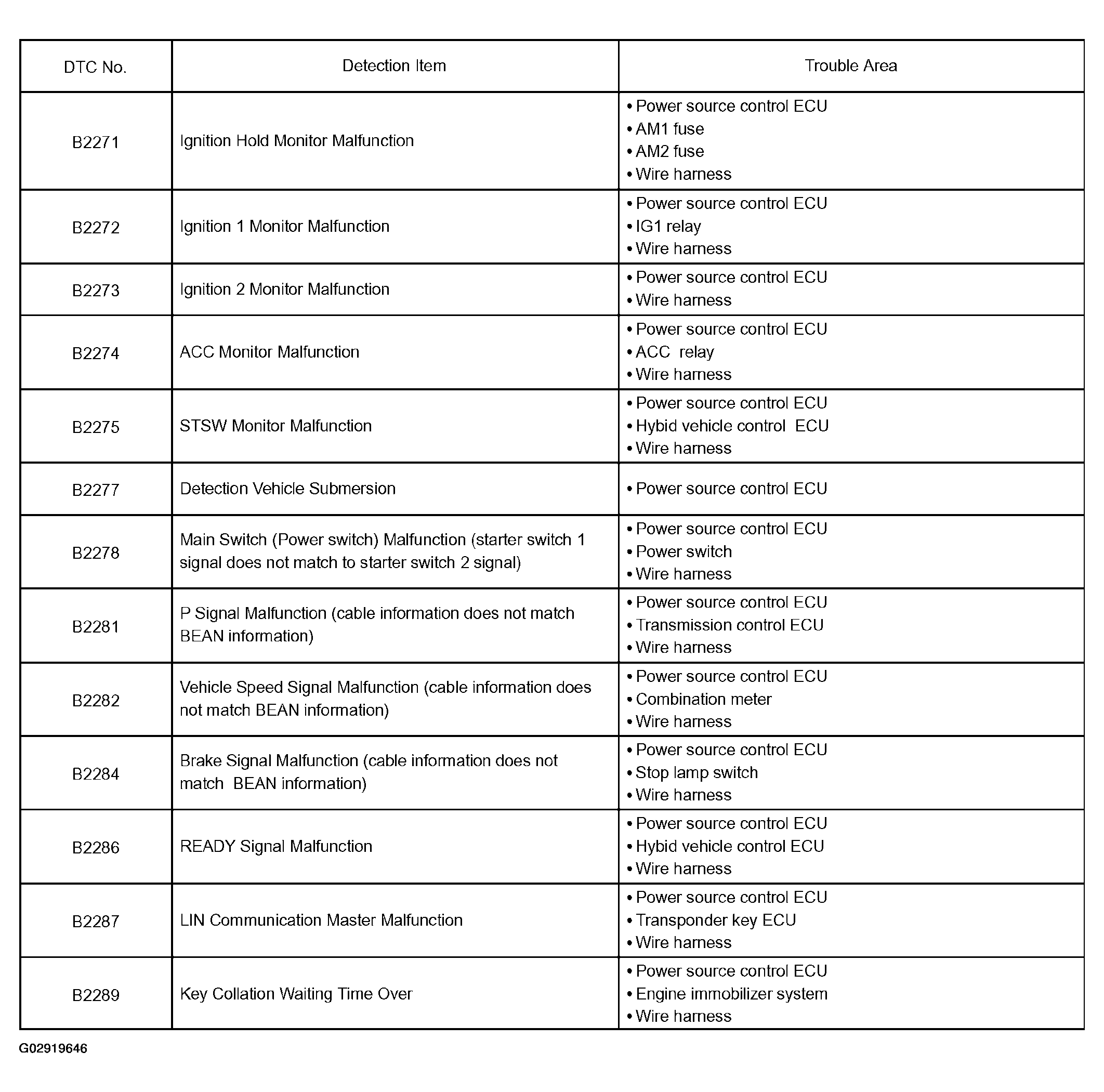

    Fig 1: DTC Detection Item/Trouble Area Table
    G02919646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
