Remote Up/Down Function Does Not Operate: Wiring Diagram

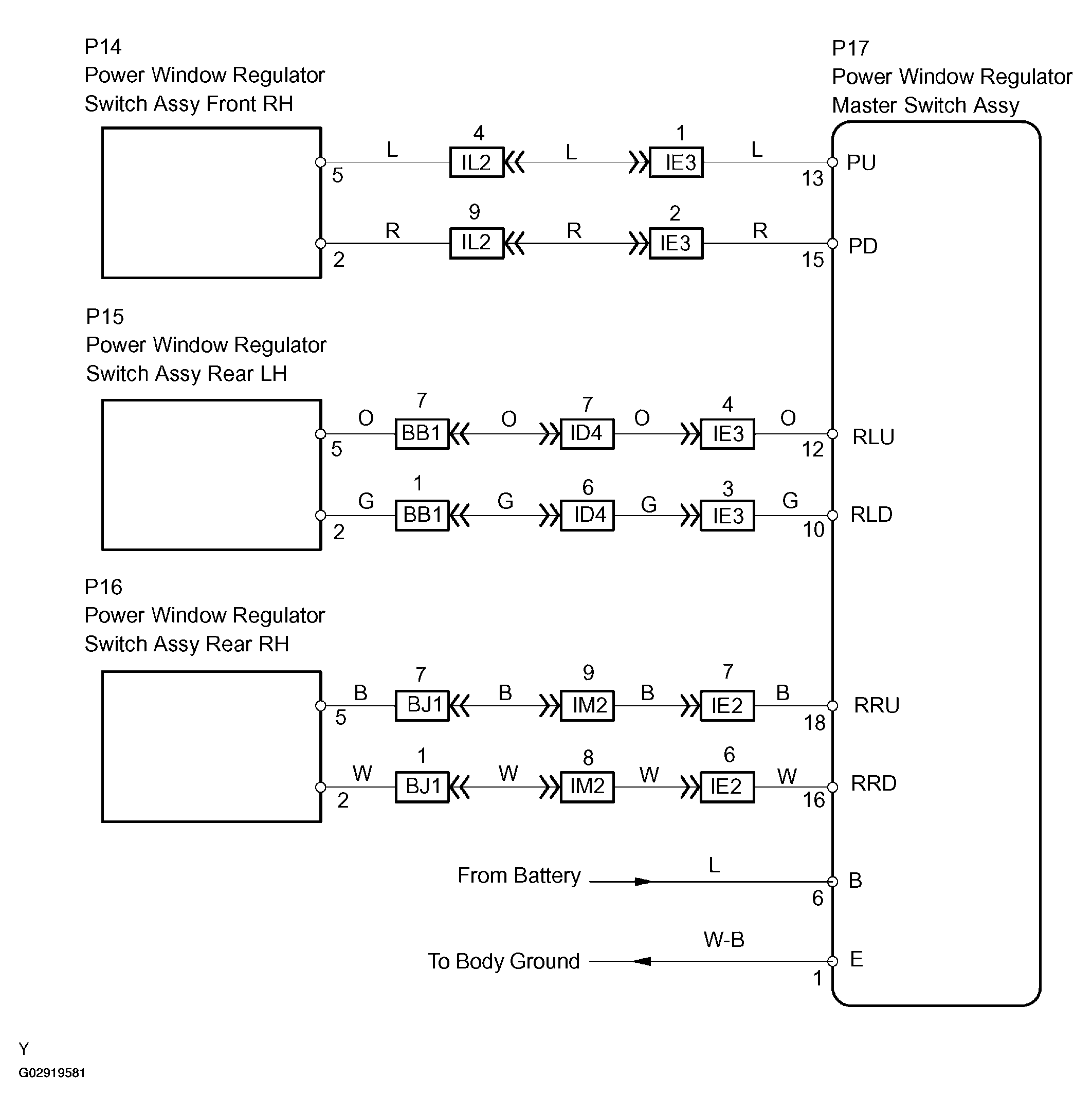

Fig 1: Wiring Diagram - Remote UP/Down Function

G02919581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
