Power Windows Do Not Operate At All: Wiring Diagram

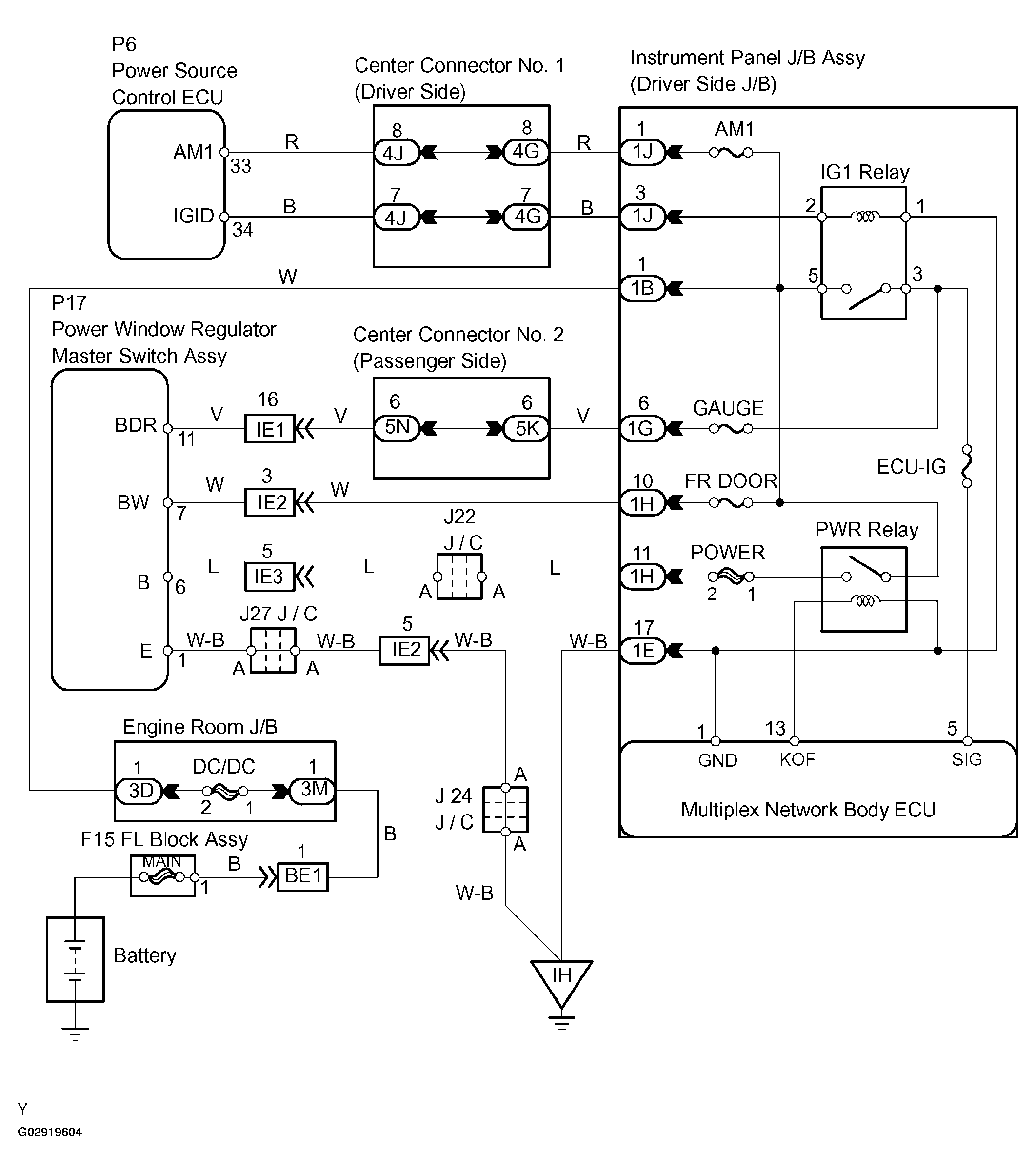

Fig 1: Wiring Diagram-Power Window

G02919604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
