Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

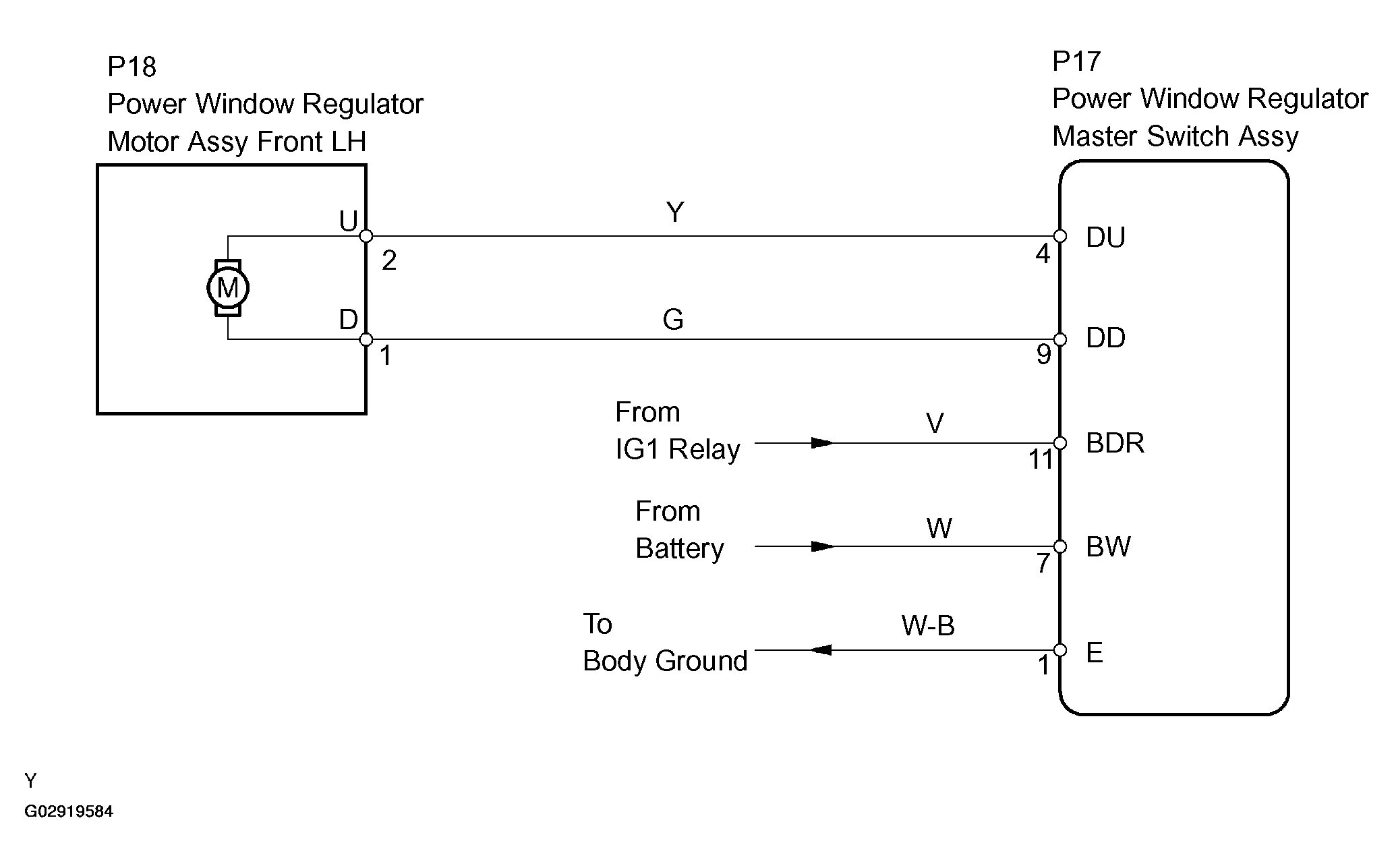

Fig 1: Wiring Diagram-Manual UP/DOWN Function (Driver Side)

G02919584

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
