Power Window Control System - Diagnosis: Location

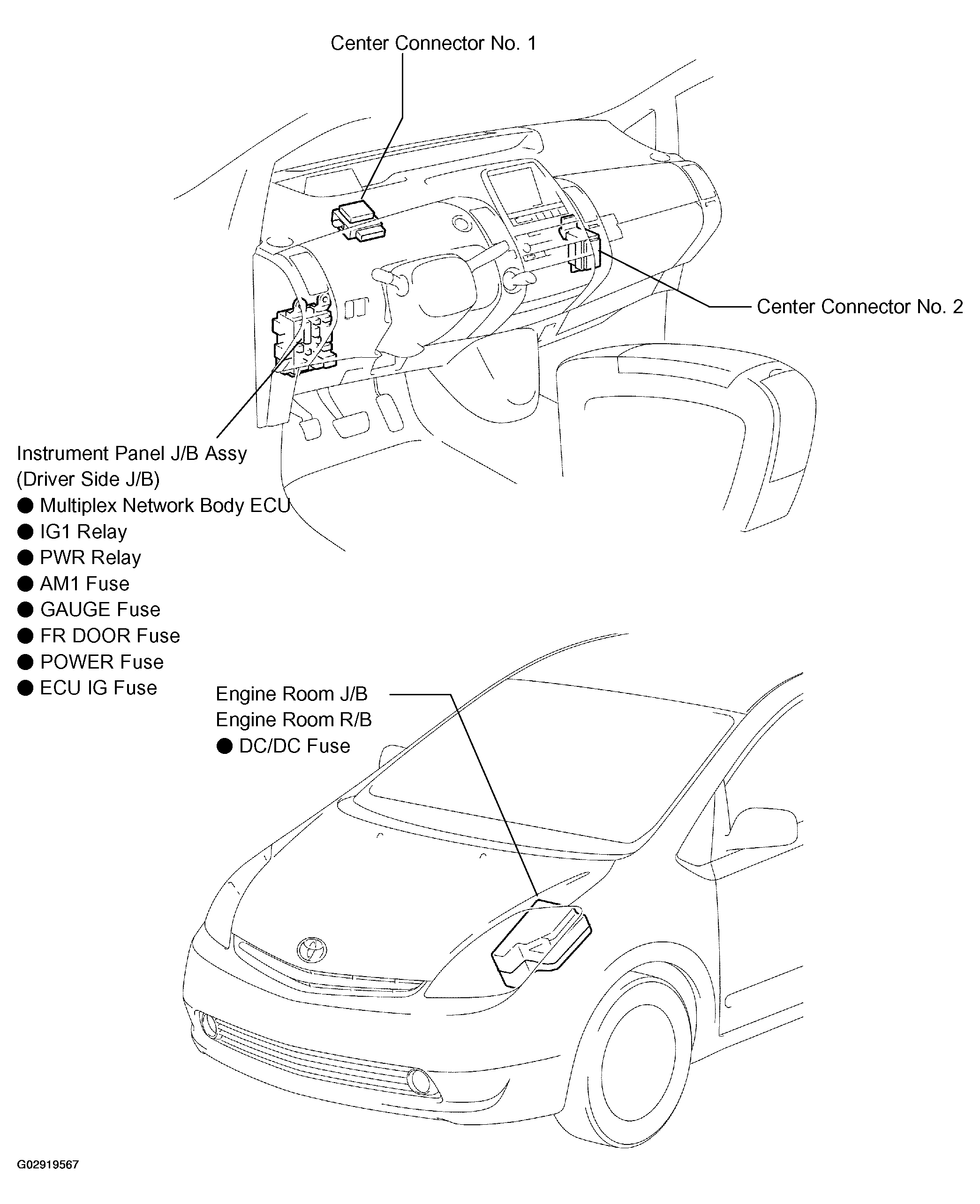

Fig 1: Power Window Control System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

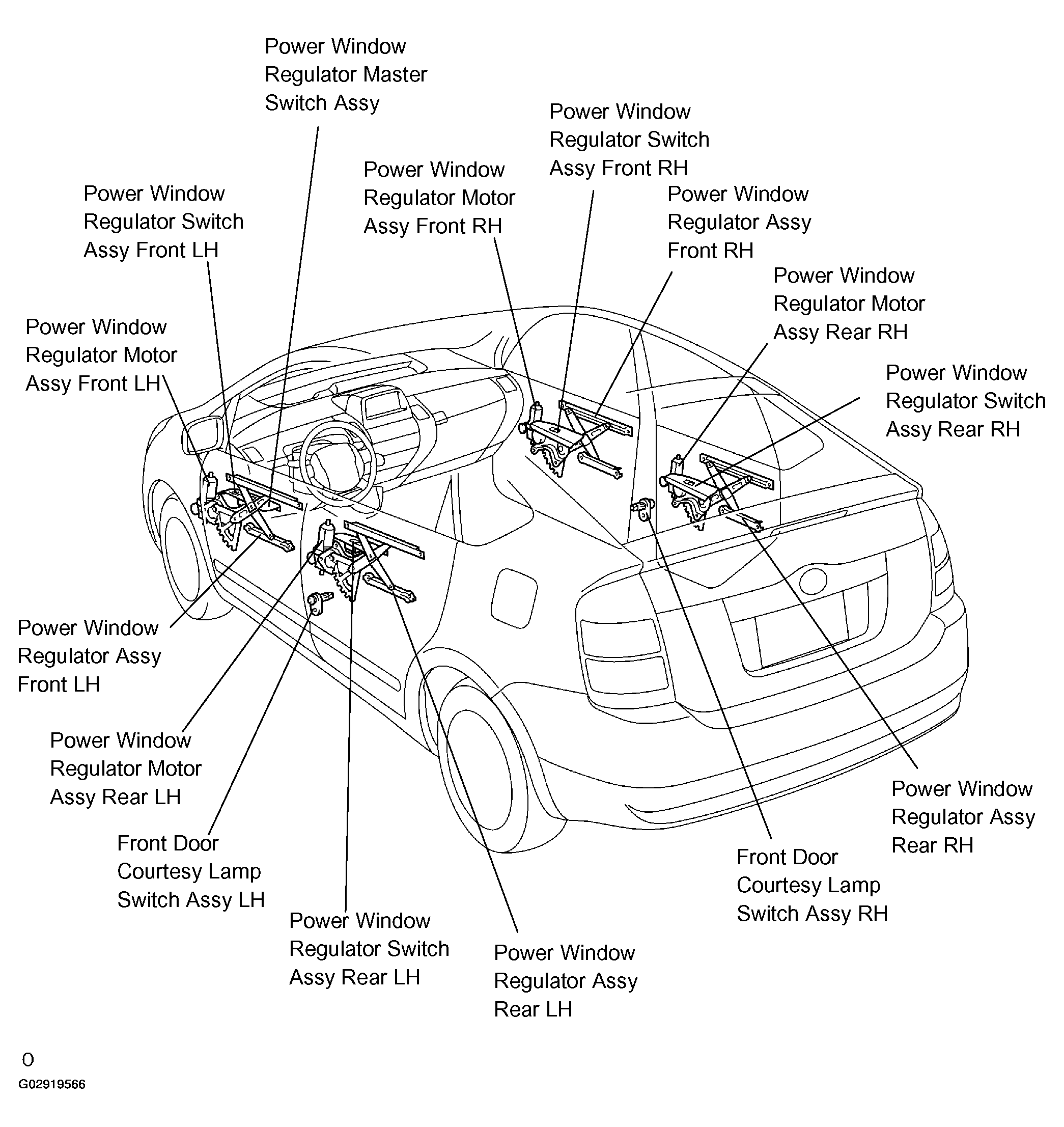

Fig 2: Power Window Control System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
