Home >> Toyota >> 2004 >> Prius >> Repair and Diagnosis (Single Page) >> Hybrid/Electric Powertrain >> Testing and Diagnosis >> Hybrid Control System - Diagnosis >> DTC P3108/535: Lost Communication With A/C System Control Module, DTC P3108/536 Lost Communication With A/C System Control Module, DTC P3108/538 Lost Communication With A/C System Control Module >> Circuit Description

Circuit Description

The HV control ECU detects a wiring malfunction in the serial communication line of the A/C inverter.

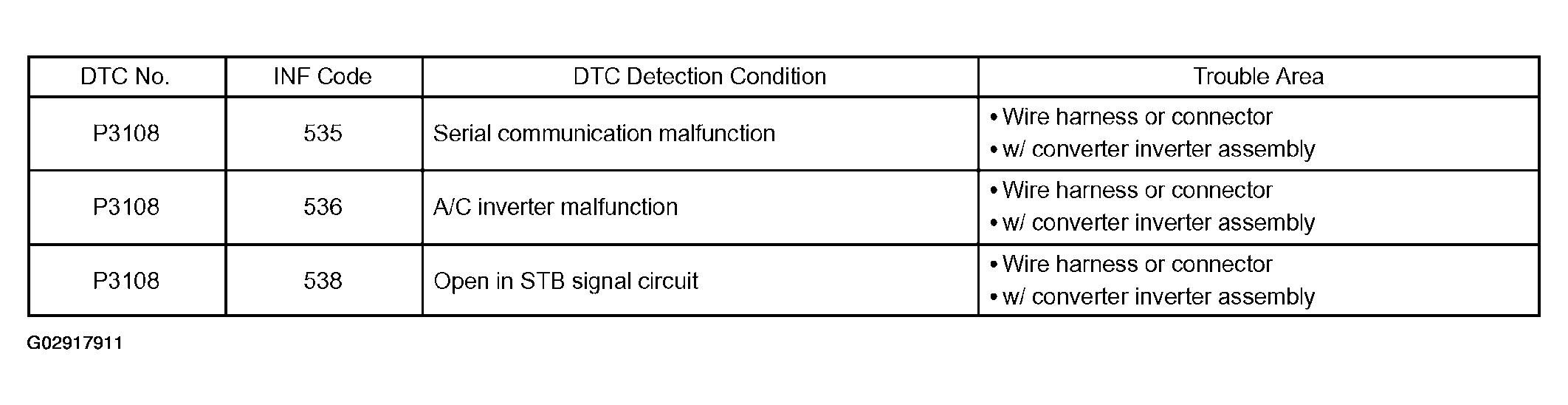

Fig 1: DTC Trouble Detection Table
G02917911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
