Home >> Toyota >> 2004 >> Prius >> Repair and Diagnosis (Single Page) >> Hybrid/Electric Powertrain >> Testing and Diagnosis >> Hybrid Control System - Diagnosis >> DTC P3107/213: Lost Communication With Airbag System Control Module, DTC P3107/214 Lost Communication With Airbag System Control Module, DTC P3107/215 Lost Communication With Airbag System Control Module >> Circuit Description

Circuit Description

The HV control ECU detects a malfunction of the collision signal circuit from the airbag ECU and gives warning to the driver.

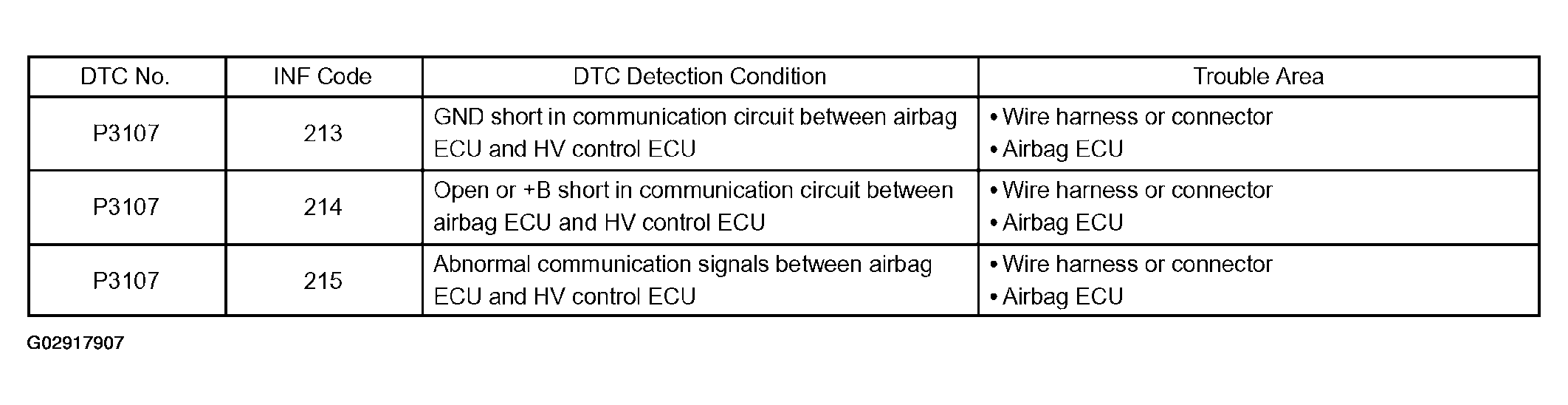

Fig 1: DTC Trouble Detection Table
G02917907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
