Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Hand-held tester:
- PERFORM ACTIVE TEST BY HAND-HELD TESTER (OPERATE VSV FOR IAC VALVE NO. 2)
- Disconnect the vacuum hose.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / INTAKE CTL VSV1. Operate the VSV.

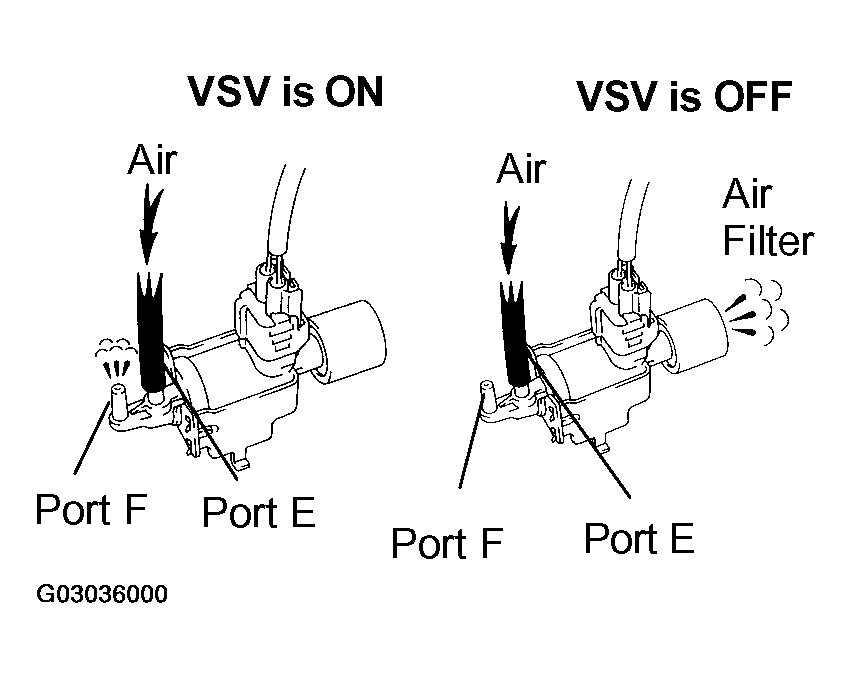

- Check the VSV operation when it is operated by the hand-held tester.
Standard:
SPECIFIED CONDITIONTester Operation Specified Condition VSV is ON Air from port E flows out through port F VSV is OFF Air from port E flows out through the air filter
- OK : Go to step 4
- NG : Go To Next Step.

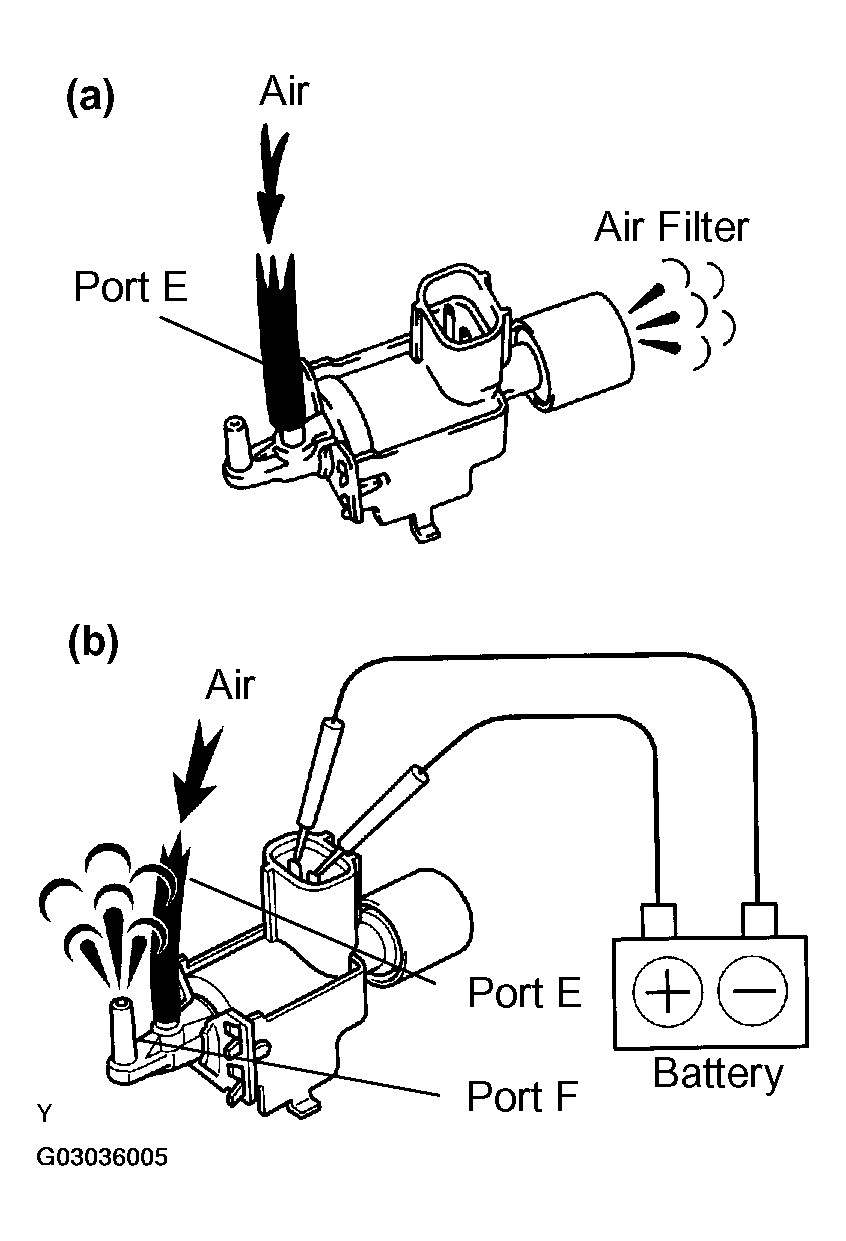

- CHECK VSV FOR IAC VALVE NO. 2 (OPERATION)
- Check that air flows from port E to the air filter.

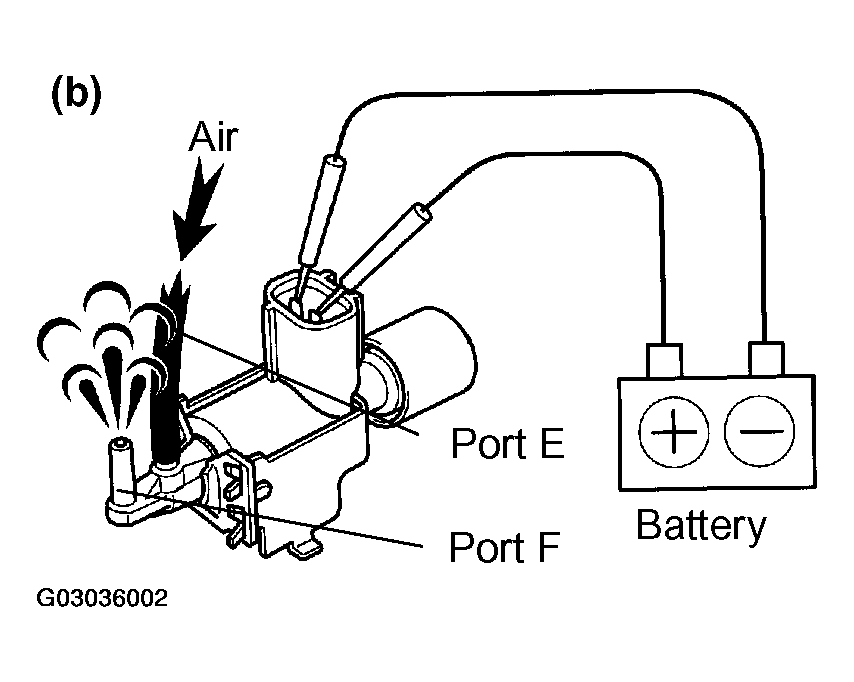

- Apply battery positive voltage across the terminals.
- Check that air flows from port E to port F.
- NG : REPLACE VSV
- OK : Go To Next Step.
- CHECK WIRE HARNESS (VSV FOR IAC VALVE NO. 2 - ECM, VSF FOR IAC VALVE NO. 2 - EFI RELAY)

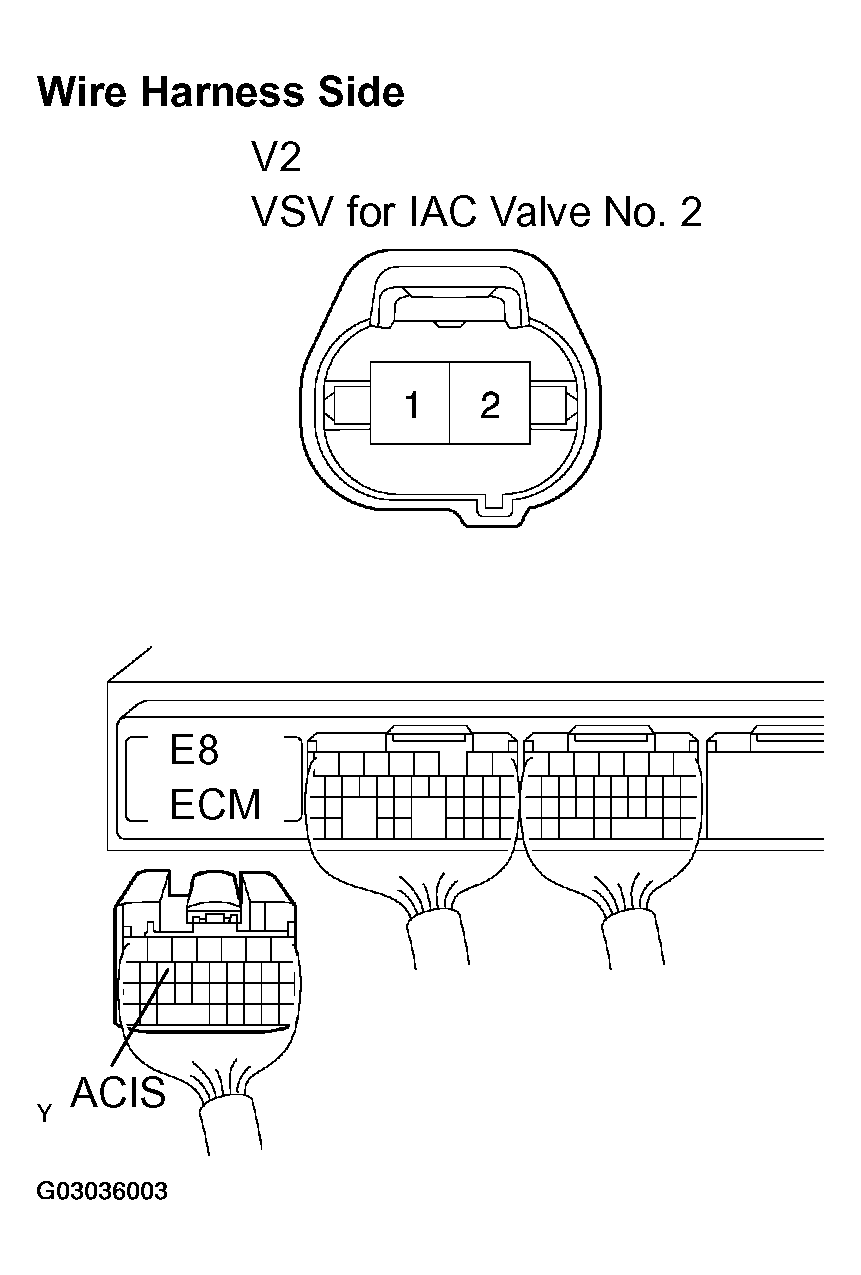

- Check the wire harness between the VSV and the ECM.
- Disconnect the V2 VSV connector.
- Disconnect the E8 ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition V2-2 - E8-15 (ACIS) Below 1 Ω V2-2 or E8-15 (ACIS) - Body ground 10 kΩ or higher - Check the wire harness between the VSV and EFI relay.

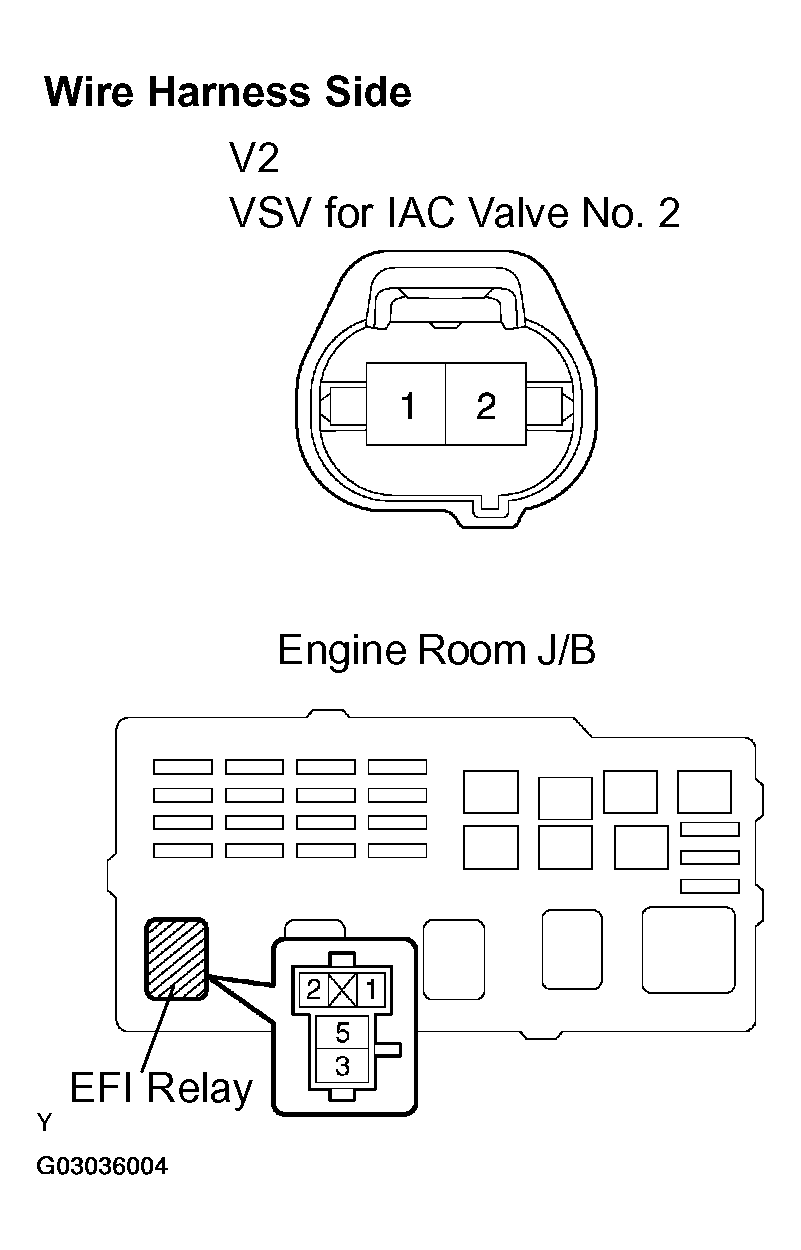

- Disconnect the V2 VSV connector.
- Remove the EFI relay from the engine room J/B.
- Measure the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition V2-1 - J/B EFI relay terminal 3 Below 1 Ω
- NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK : Go To Next Step.
- Check the wire harness between the VSV and the ECM.
- CHECK VACUUM HOSES (INTAKE MANIFOLD - INTAKE AIR CONTROL VALVE, INTAKE AIR CONTROL)
Check that the vacuum hoses are:
- Connected correctly.
- Are not loose or disconnected.
- Do not have cracks, holes or damage.
- NG : REPAIR OR REPLACE VACUUM HOSES
- OK : Go To Next Step.
- INSPECT INTAKE AIR CONTROL VALVE (See INSPECTION
)
- NG : REPLACE INTAKE AIR CONTROL VALVE
- OK : REPLACE ECM (See REPLACEMENT )
OBD II scan tool (excluding hand-held tester):

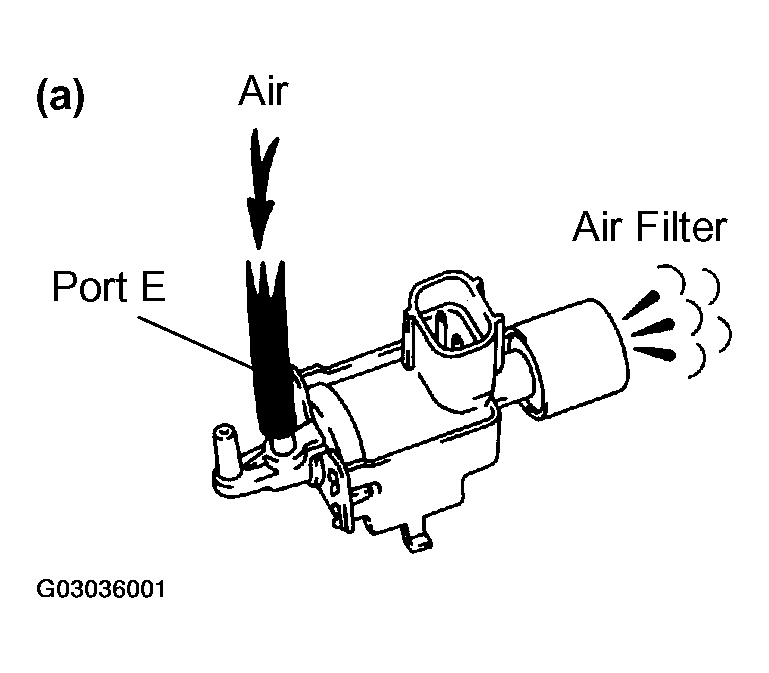

- INSPECT VSV FOR IAC VALVE NO. 2 (OPERATION)
- Disconnect the VSV connector.
- Check operation of the VSV when battery positive voltage is applied to the terminals of the VSV.
Standard:
Battery positive voltage is not applied:
Air from port E flows out through the air filter.
Battery positive voltage is applied:
Air from port E flows out through port F.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : REPLACE VSV
- OK : Go To Next Step.

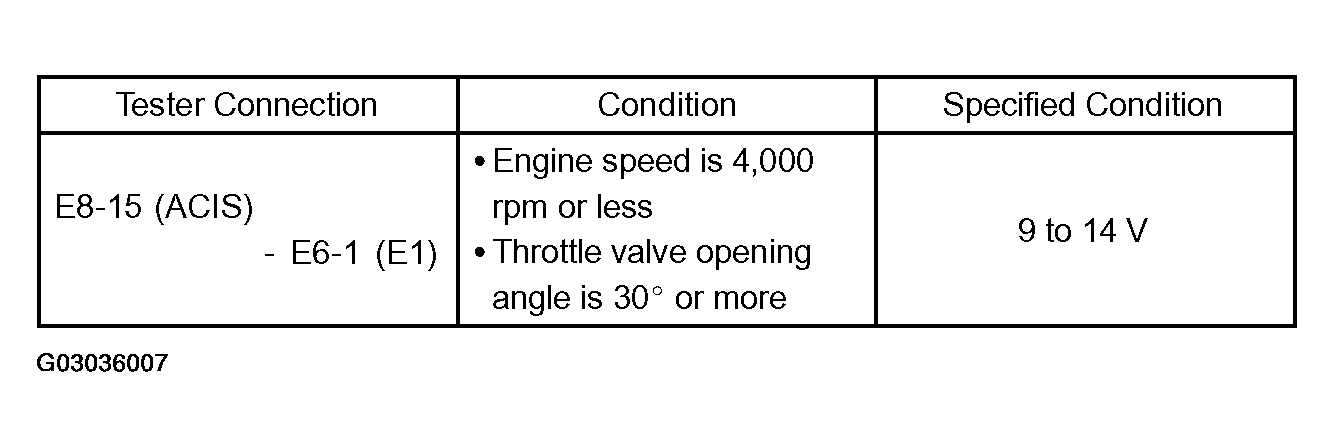

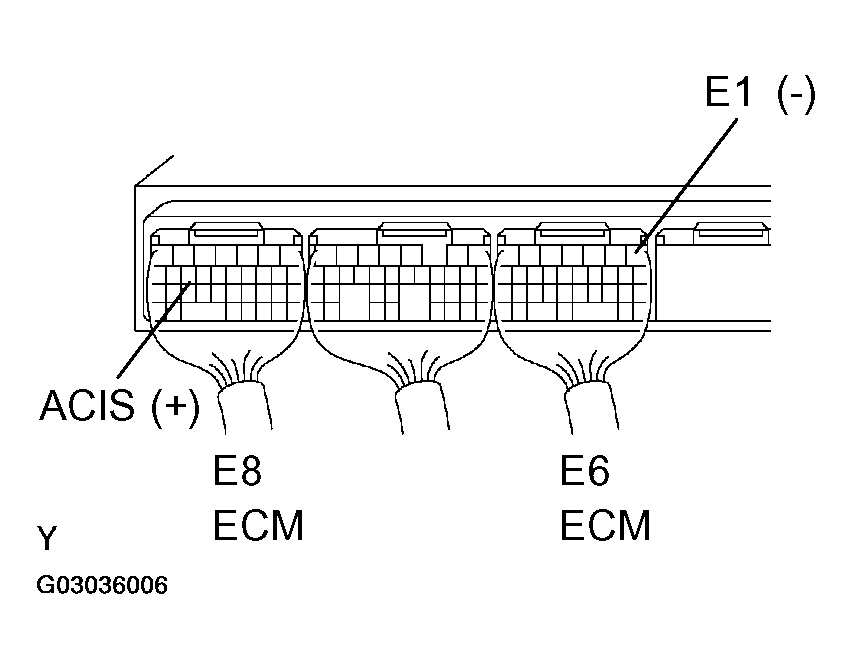

- CHECK ECM (ACIS VOLTAGE)
- Start the engine.
- Measure the voltage of the ECM connectors.
Standard
- OK : Go to step 4
- NG : Go To Next Step.
- CHECK WIRE HARNESS (VSV FOR IAC VALVE NO. 2 - ECM, VSV FOR IAC VALVE NO. 2 - EFI RELAY)

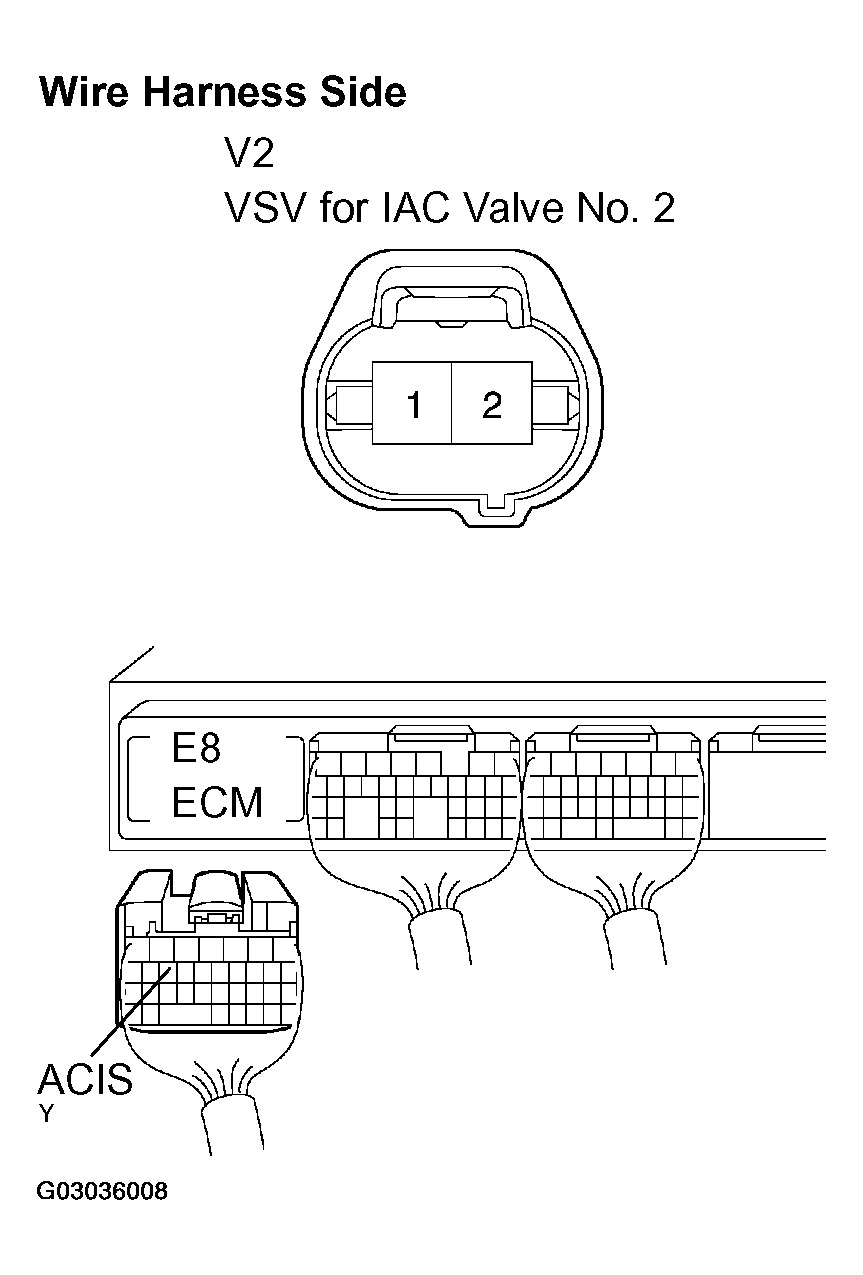

- Check the wire harness between the VSV and the ECM.
- Disconnect the V2 VSV connector.
- Disconnect the E8 ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition V2-2 - E8-15 (ACIS) Below 1 Ω V2-2 or E8-15 (ACIS) - Body ground 10 kΩ or higher - Check the wire harness between the VSV and EFI relay.

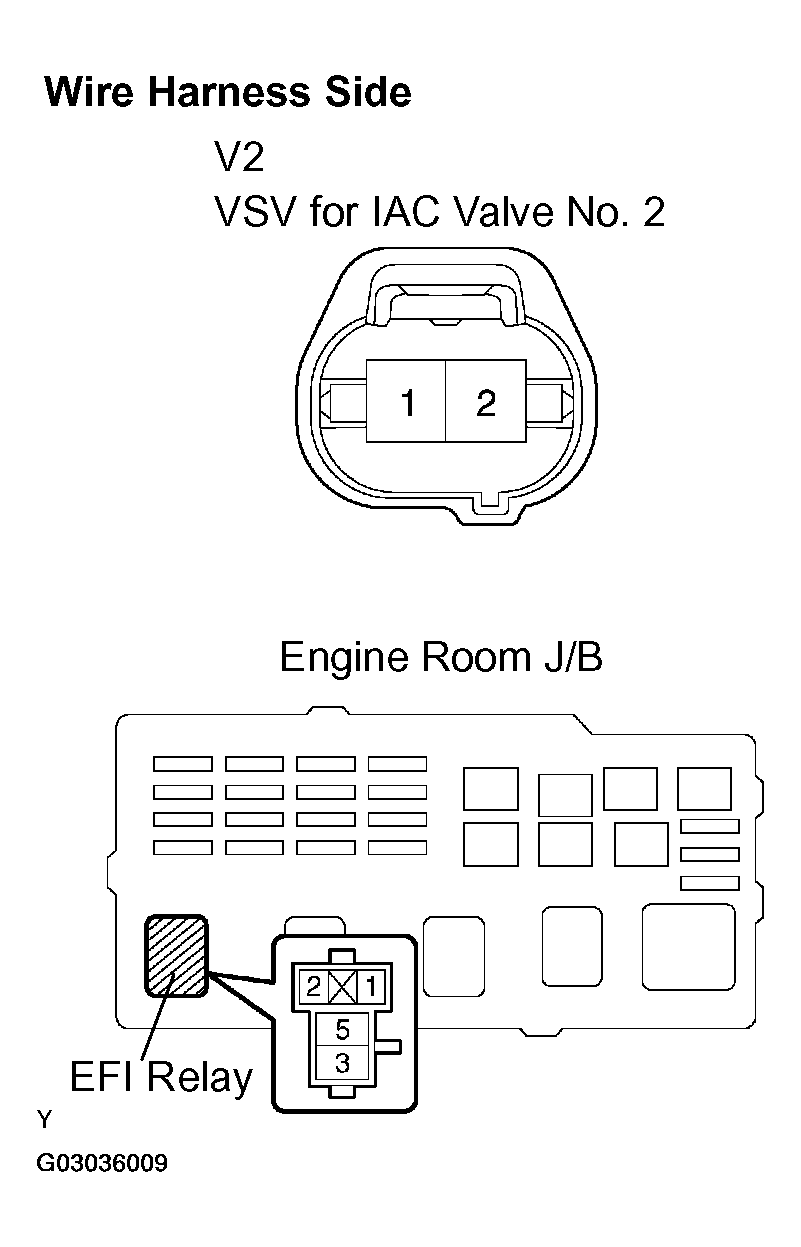

- Disconnect the V2 VSV connector.
- Remove the EFI relay from the engine room J/B.
- Measure the resistance OF the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition V2-1 (VSV for ACIS) - J/B EFI relay terminal 3 Below 1 Ω
- NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK : Go To Next Step.
- Check the wire harness between the VSV and the ECM.
- CHECK VACUUM HOSES (INTAKE MANIFOLD - INTAKE AIR CONTROL VALVE, INTAKE AIR CONTROL)
Check that the vacuum hoses are:
- Connected correctly.
- Are not loose or disconnected.
- Do not have cracks, holes or damage.
- NG : REPAIR OR REPLACE VACUUM HOSE
- OK : Go To Next Step.
- INSPECT INTAKE AIR CONTROL VALVE (See INSPECTION
)
- NG : REPLACE INTAKE AIR CONTROL VALVE
- OK : REPLACE ECM (See REPLACEMENT )
