Section 572 (Interior Light System): Location

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

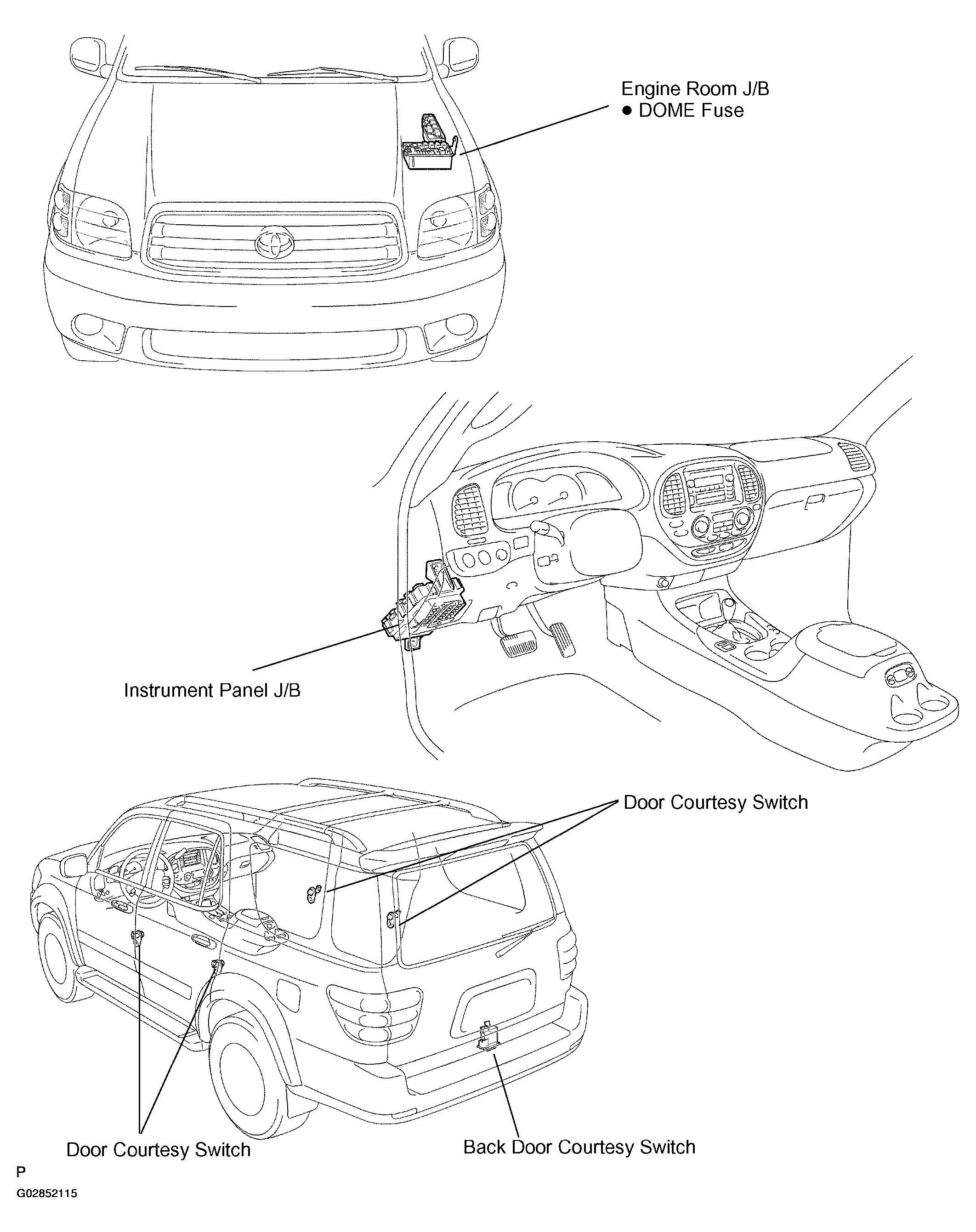

Fig 1: Locating Interior Light System Components (1 Of 2)
G02852115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

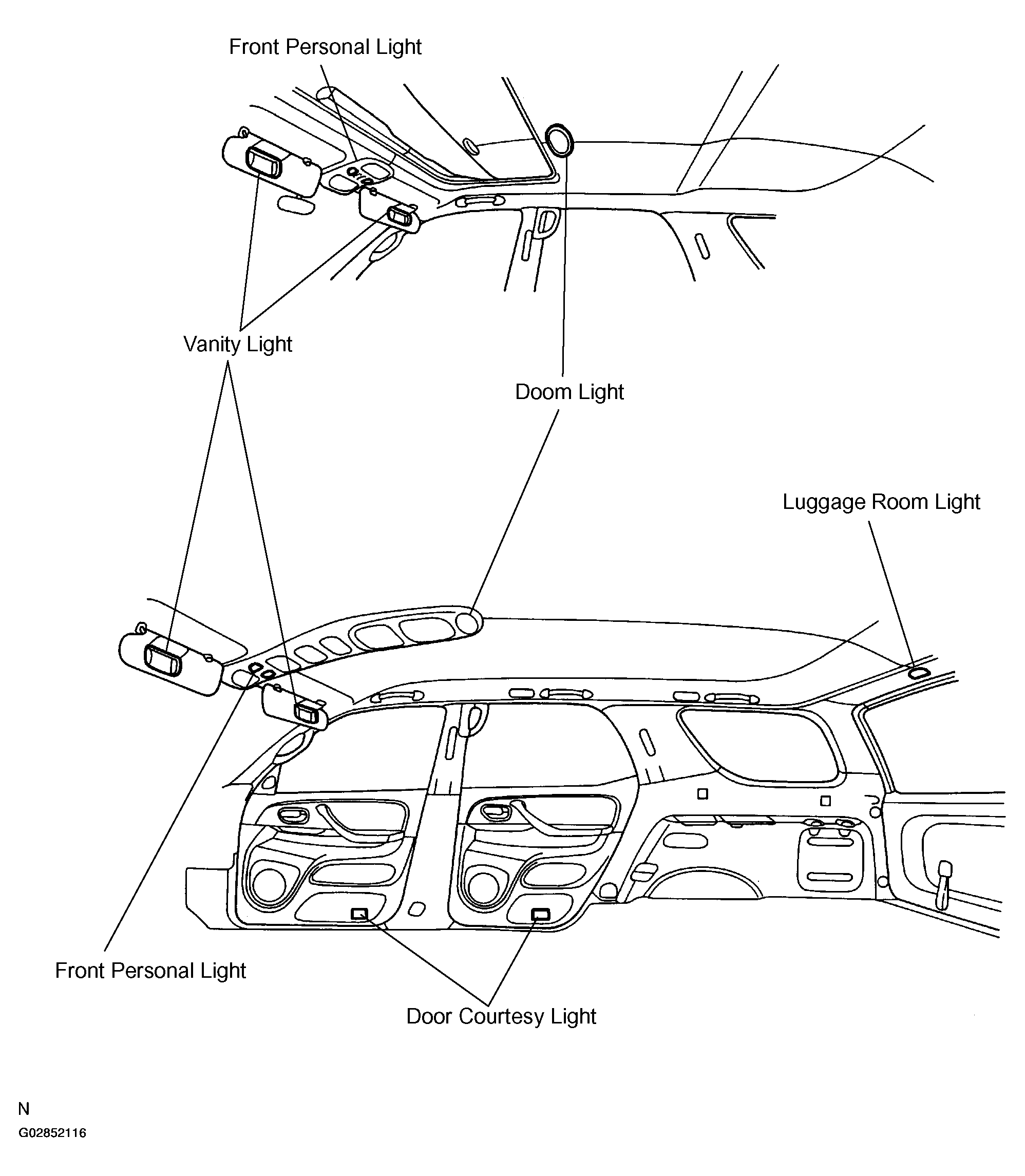

Fig 2: Locating Interior Light System Components (2 Of 2)
G02852116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
