Back Door Power Window Switch

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

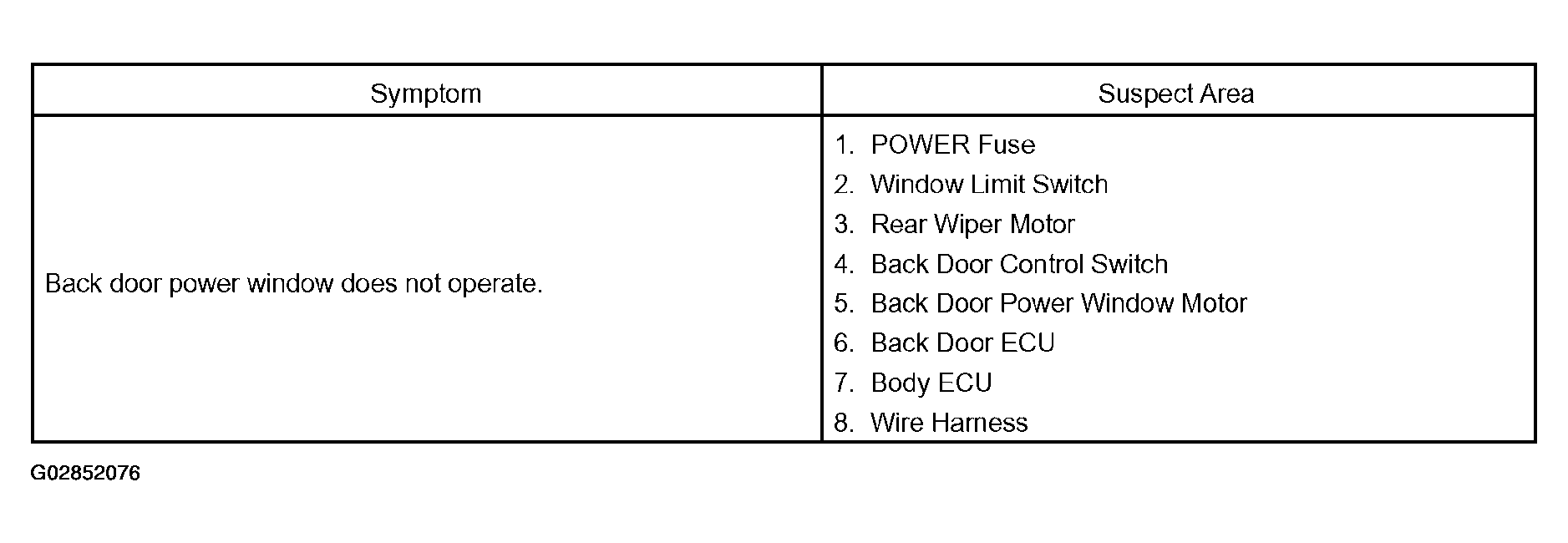

Fig 1: Problem Symptoms Chart - Back Door Power Window Switch
G02852076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
