Glossary Of Sae And TOYOTA Terms

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This glossary lists all SAE-J1930 terms and abbreviations used in this manual in compliance with SAE recommendations, as well as their Toyota equivalents.

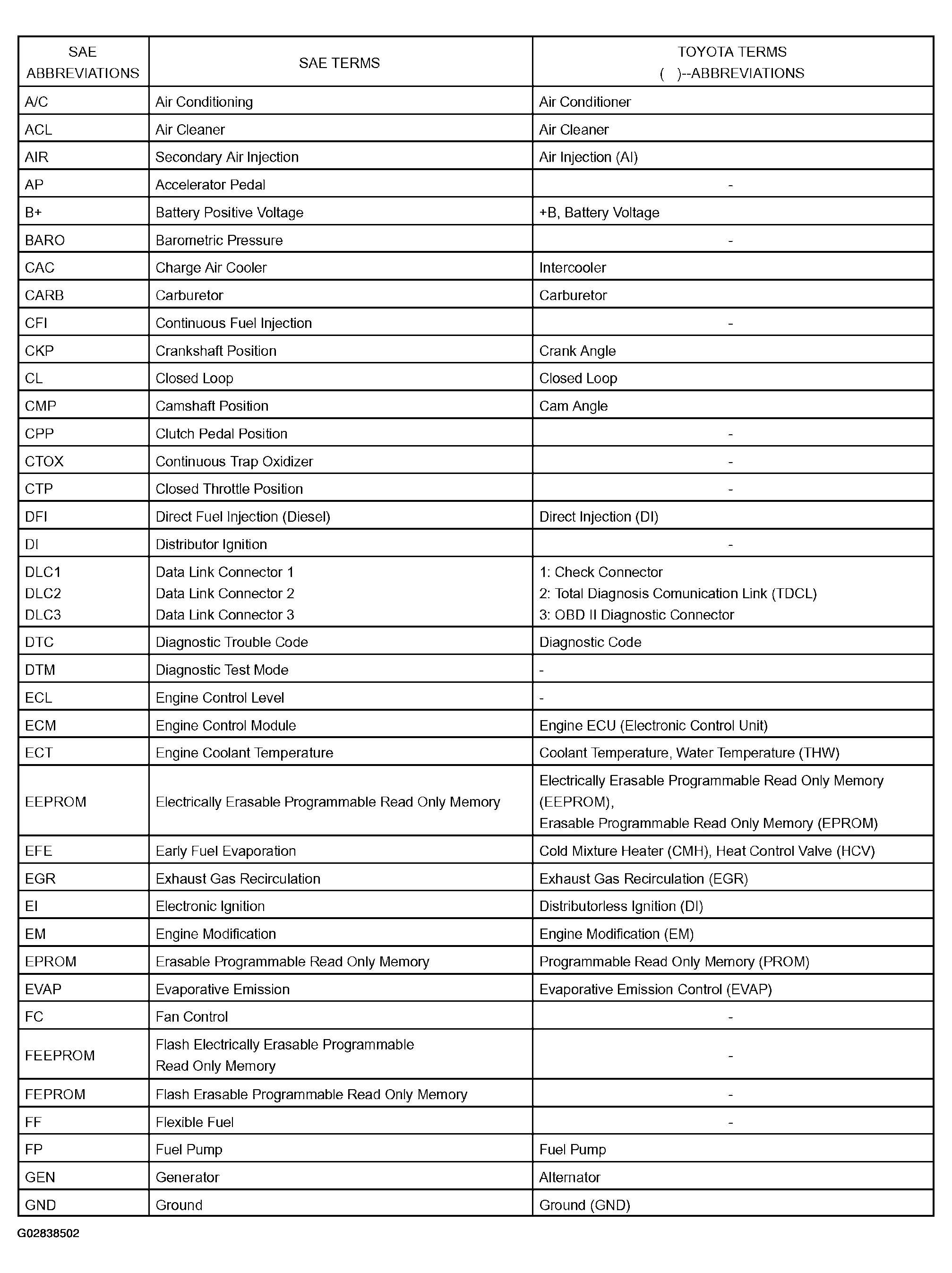

Fig 1: Glossary Of SAE And Toyota Terms (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

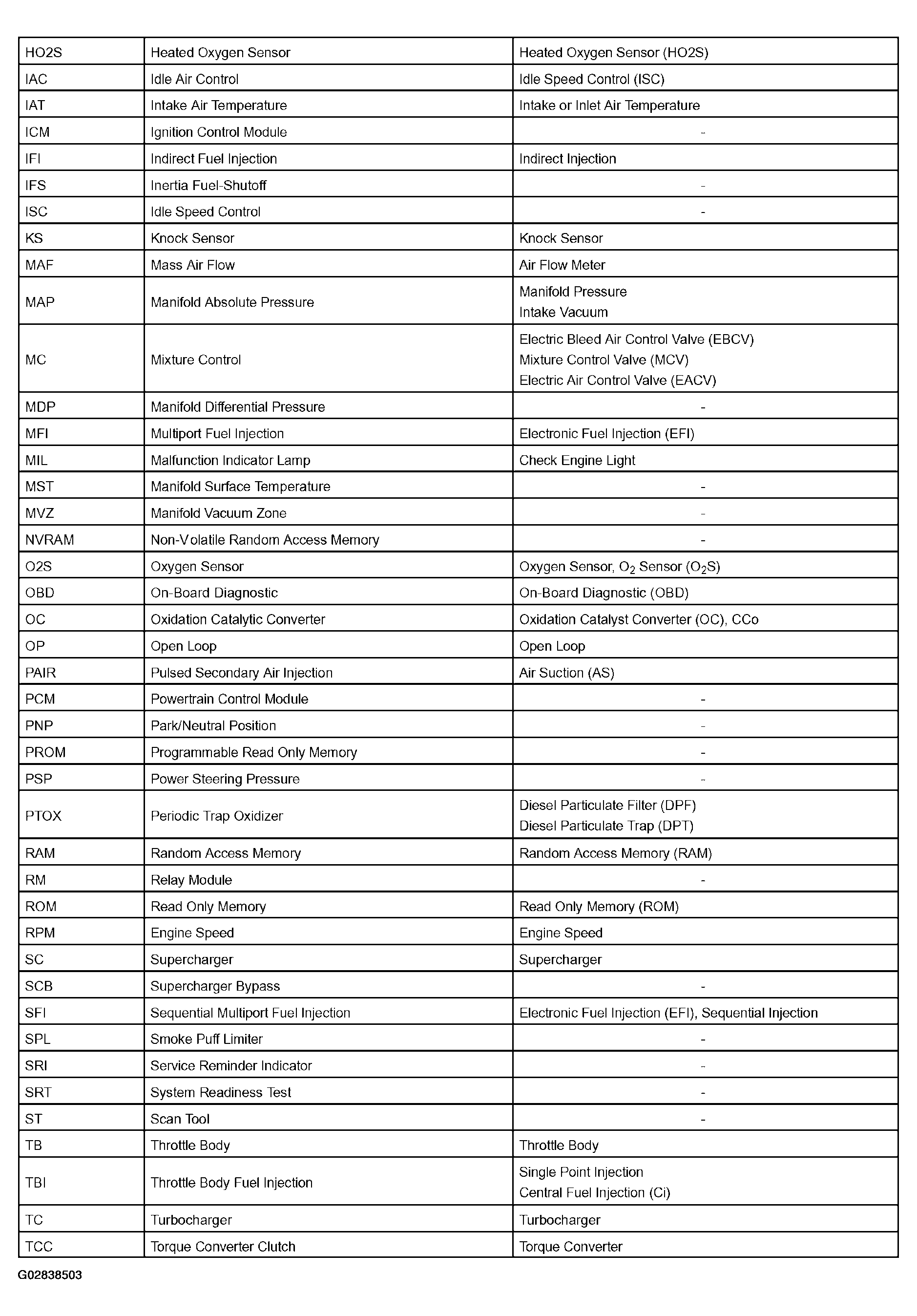

Fig 2: Glossary Of SAE And Toyota Terms (2 Of 3)

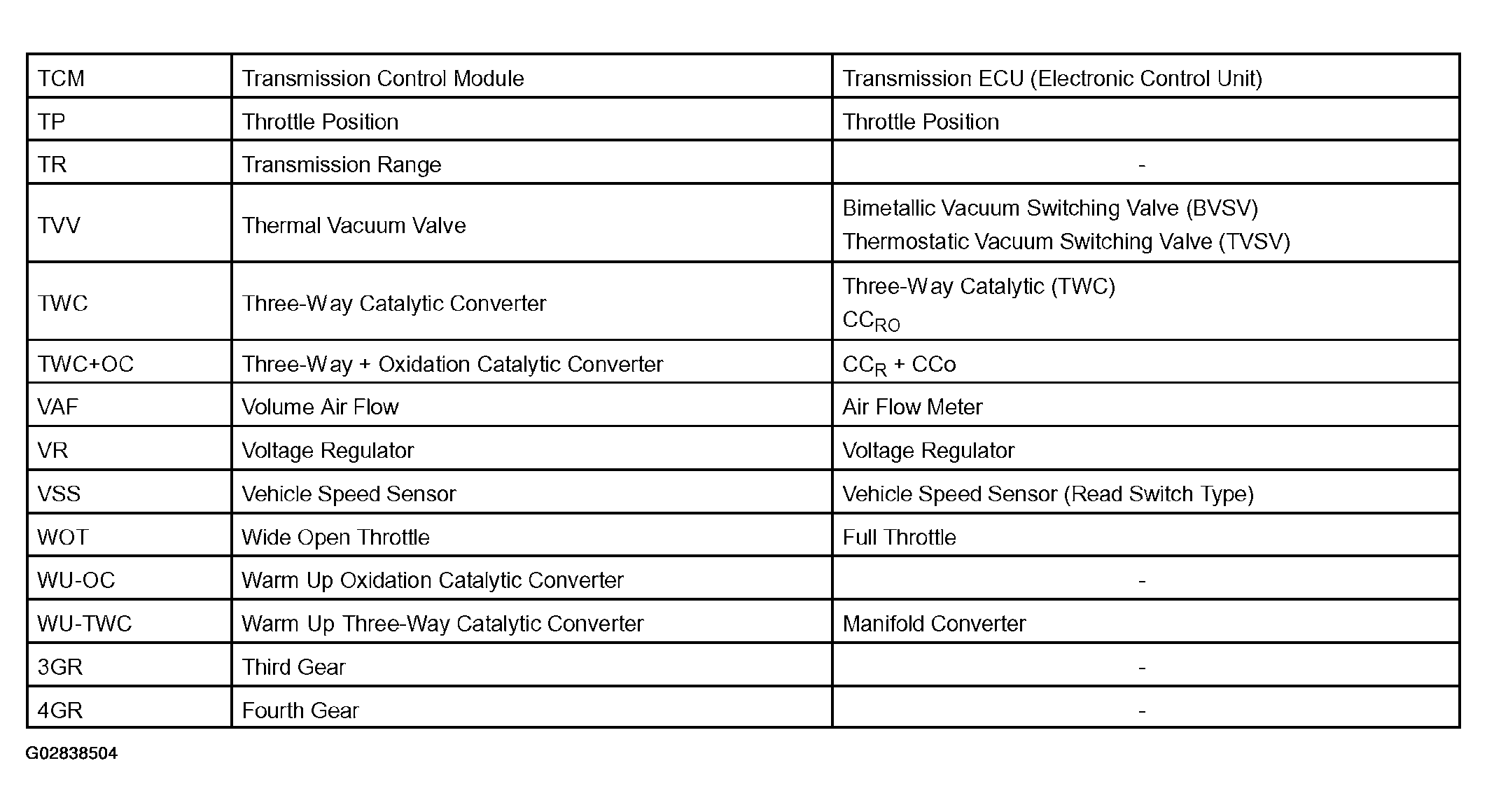

Fig 3: Glossary Of SAE And Toyota Terms (3 Of 3)
