Combination Meter ASSY: Overhaul

HINT:

• Installation is in the reverse order of removal.
• See: COMPONENTS

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  REPLACEMENT  )
2. REMOVE COMBINATION METER ASSY

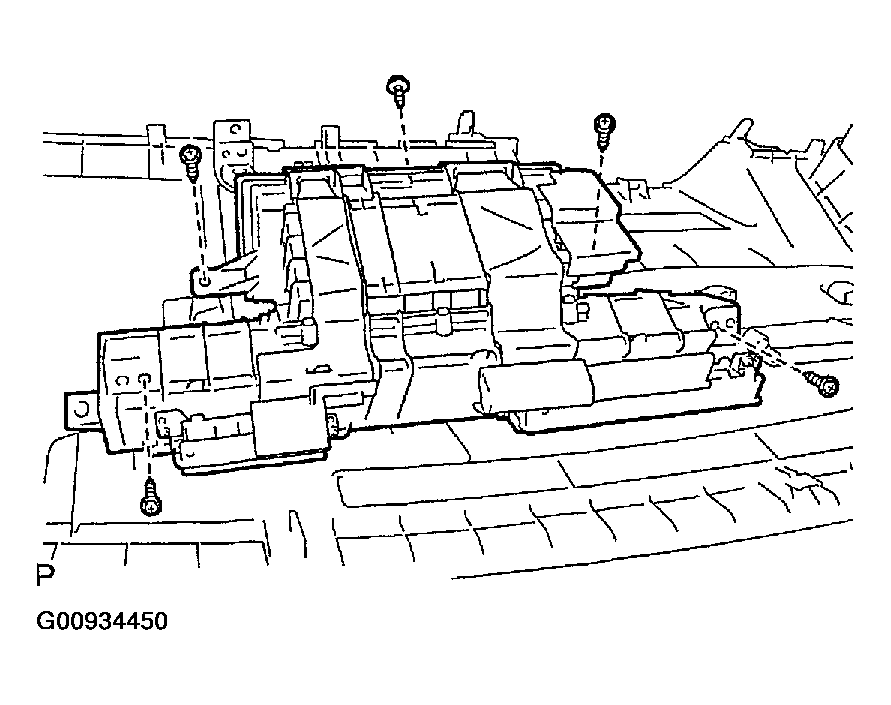

   1. Remove the 5 screws and then the combination meter assy.
   Fig 1: Removing Combination Meter Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE COMBINATION METER COVER No. 1
   1. Remove the 2 screws.
      Fig 2: Removing Combination Meter Cover No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 2 claws and then remove the combination meter cover No. 1.
   Fig 3: Removing Combination Meter Cover No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE METER CIRCUIT PLATE
   NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
   1. Pull the connector lock in the direction indicated by the arrow in the illustration and separate the meter circuit plate No. 3 from the meter circuit plate.
      Fig 4: Disconnecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 5 claws and then remove the meter circuit plate.
   Fig 5: Removing Meter Circuit Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE COMBINATION METER CASE NO. 2
6. REMOVE COMBINATION METER COVER NO. 2
   NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
   1. Remove the 2 screws.
      Fig 6: Removing Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 2 claws and then remove the combination meter cover No. 2.
   Fig 7: Removing Combination Meter Cover No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE METER CIRCUIT PLATE NO. 2
   NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
   1. Pull the connector lock in the direction indicated by the arrow in the illustration and separate the meter circuit plate No. 4 from the meter circuit plate No. 2.
      Fig 8: Disconnecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 4 claws, and then remove the meter circuit plate No. 2.
   Fig 9: Removing Meter Circuit Plate No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE COMBINATION METER NO. 3 CASE
9. REMOVE COMBINATION METER REFLECTOR NO. 1
   1. Remove the 4 clips.
      Fig 10: Removing Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the screw and then the combination meter reflector No. 1.
   Fig 11: Removing Combination Meter Reflector No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE COMBINATION METER COVER No. 3
    1. Remove the 4 screws.
    2. Widen the 2 claws along the outside to disengage them.
    3. Raise the cover from the bottom and remove the combination meter reflector No. 1.
    Fig 12: Removing Combination Meter Cover No. 3

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE METER CIRCUIT PLATE No. 3
    NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

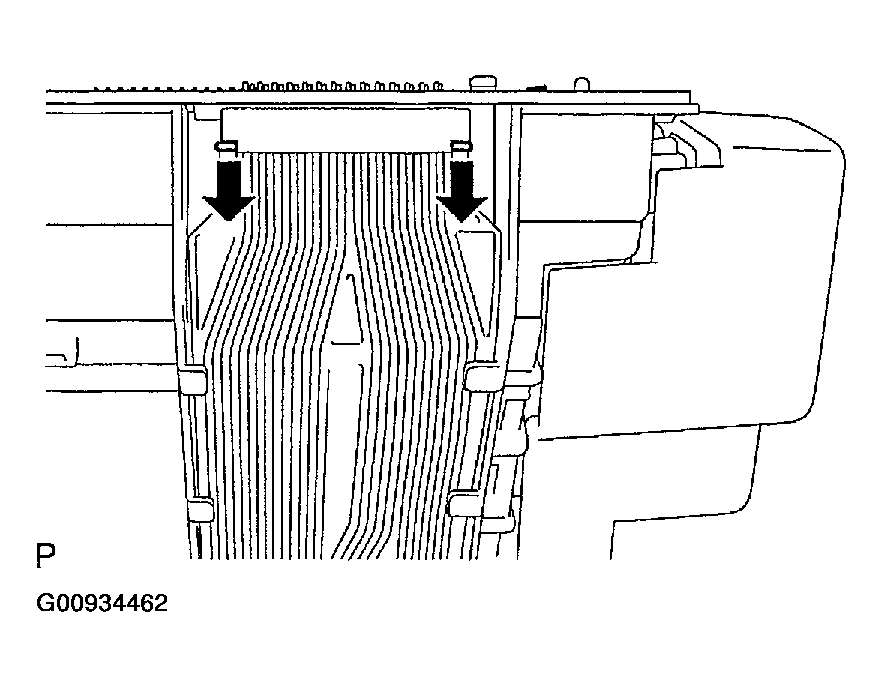

    1. Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate No. 3.
    Fig 13: Removing Meter Circuit Plate No. 3

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE METER CIRCUIT PLATE No. 4
    NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

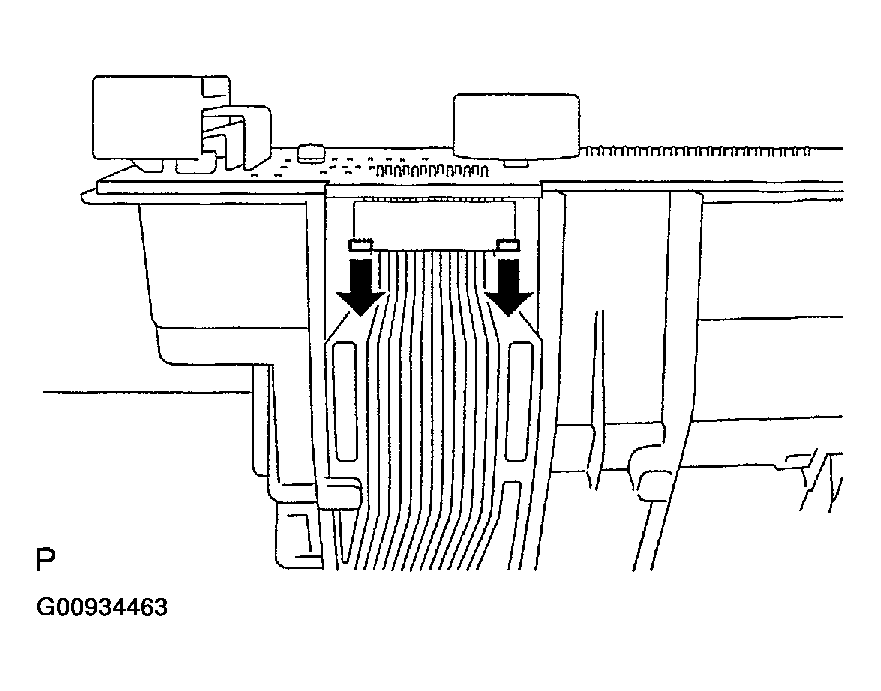

    1. Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate No. 4.
    Fig 14: Removing Meter Circuit Plate No. 4

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE COMBINATION METER CASE
14. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  REPLACEMENT  )
