Engine Control System (SFI) - Diagnostics (2ZZ-GE)
>>
Terminals Of ECM
Terminals Of ECM

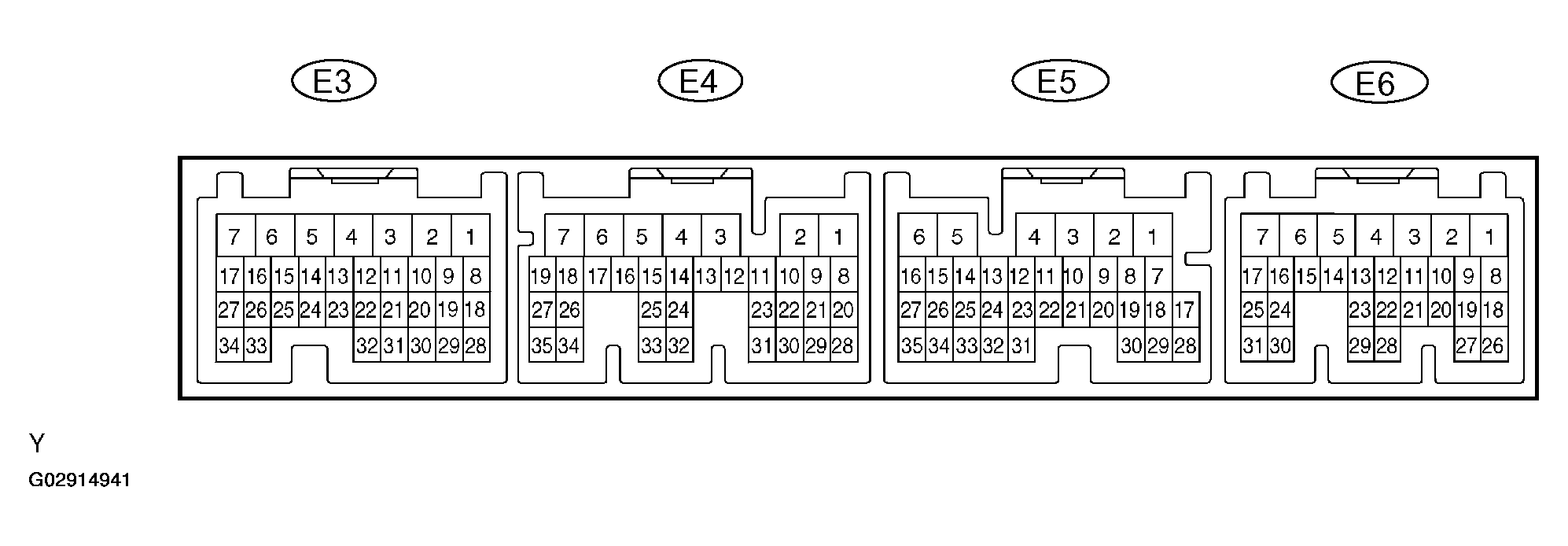

Fig 1: ECM Connector Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

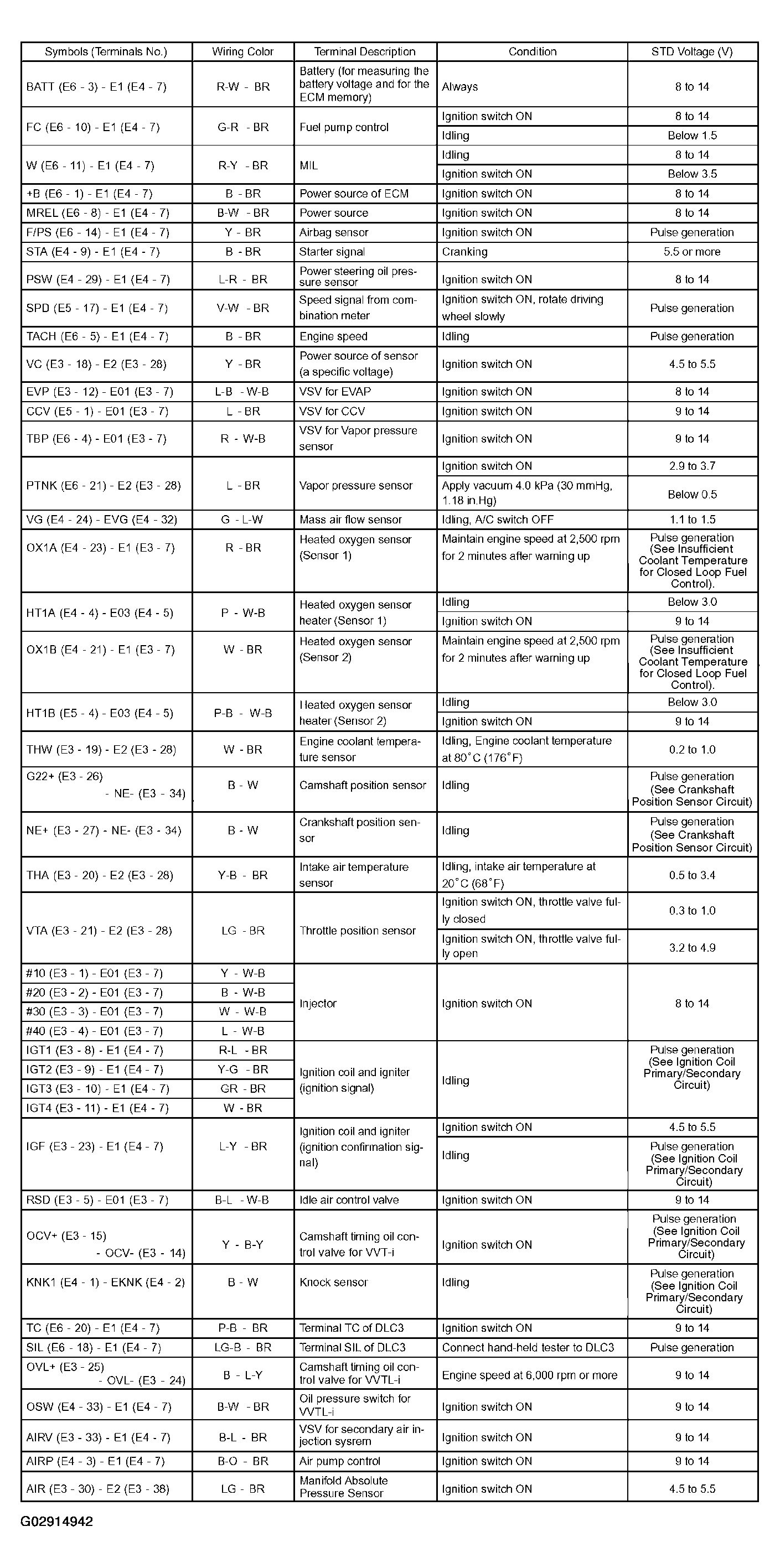

Fig 2: Terminal Condition Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
