Rear Door: Components

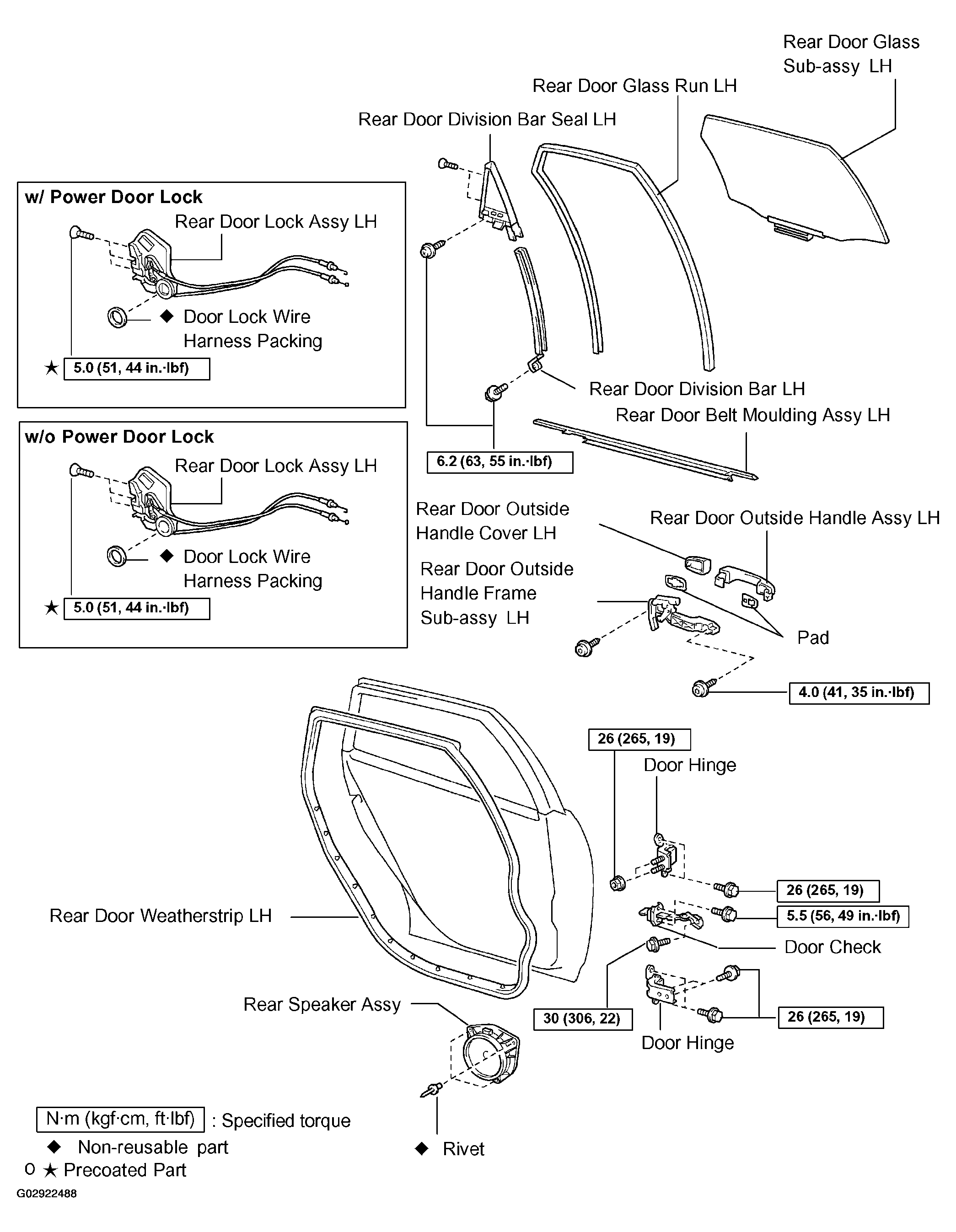

Fig 1: Identifying Components Of Rear Door (1 Of 2)
G02922488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

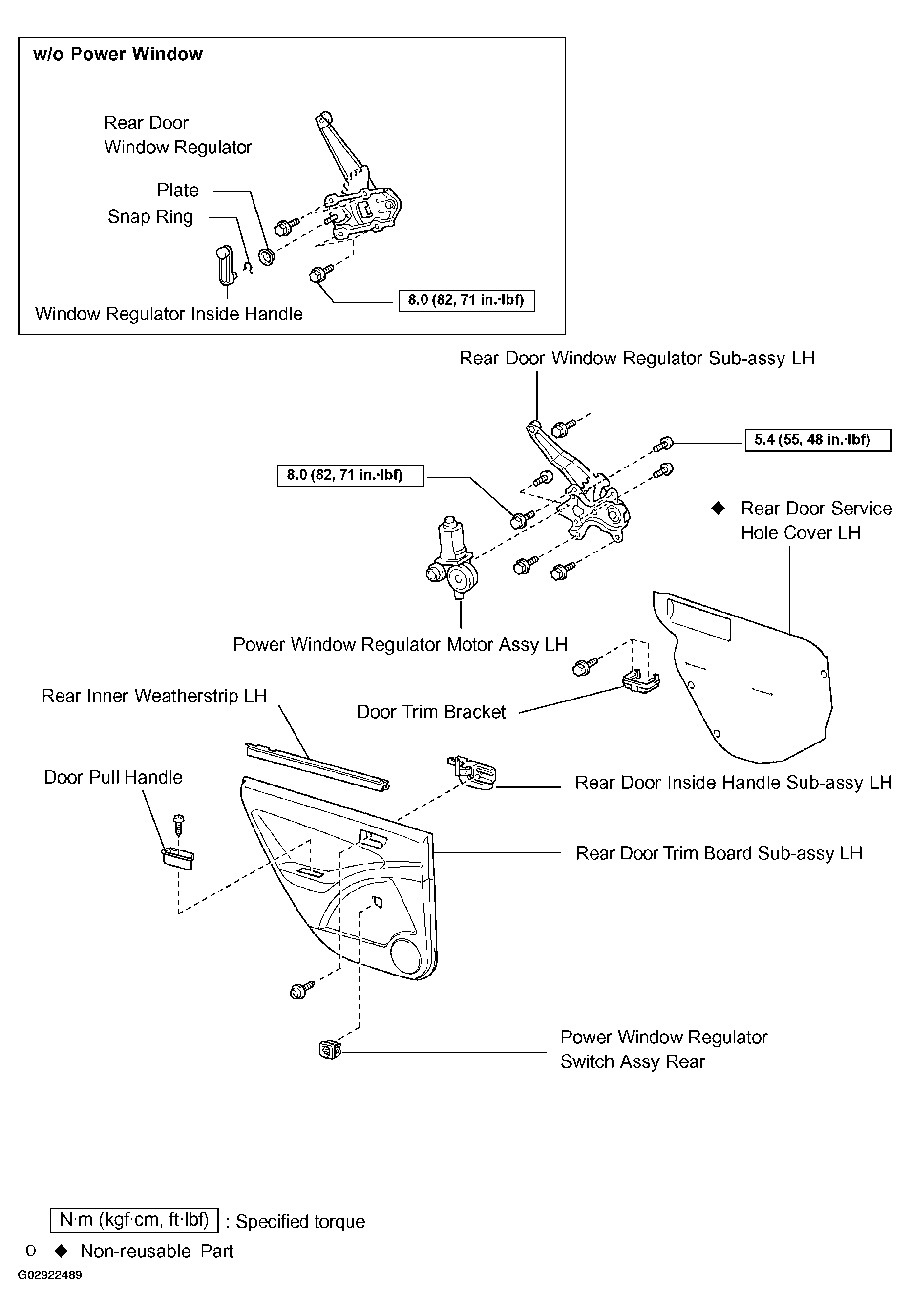

Fig 2: Identifying Components Of Rear Door (2 Of 2)
G02922489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
