LEMON Manuals: Even more car manuals for everyone
Home >> Toyota >> 2004 >> Matrix XRS >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (SFI) - Diagnostics (2ZZ-GE) >> DTC P0133: Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) >> Typical Enabling Condition

Typical Enabling Condition

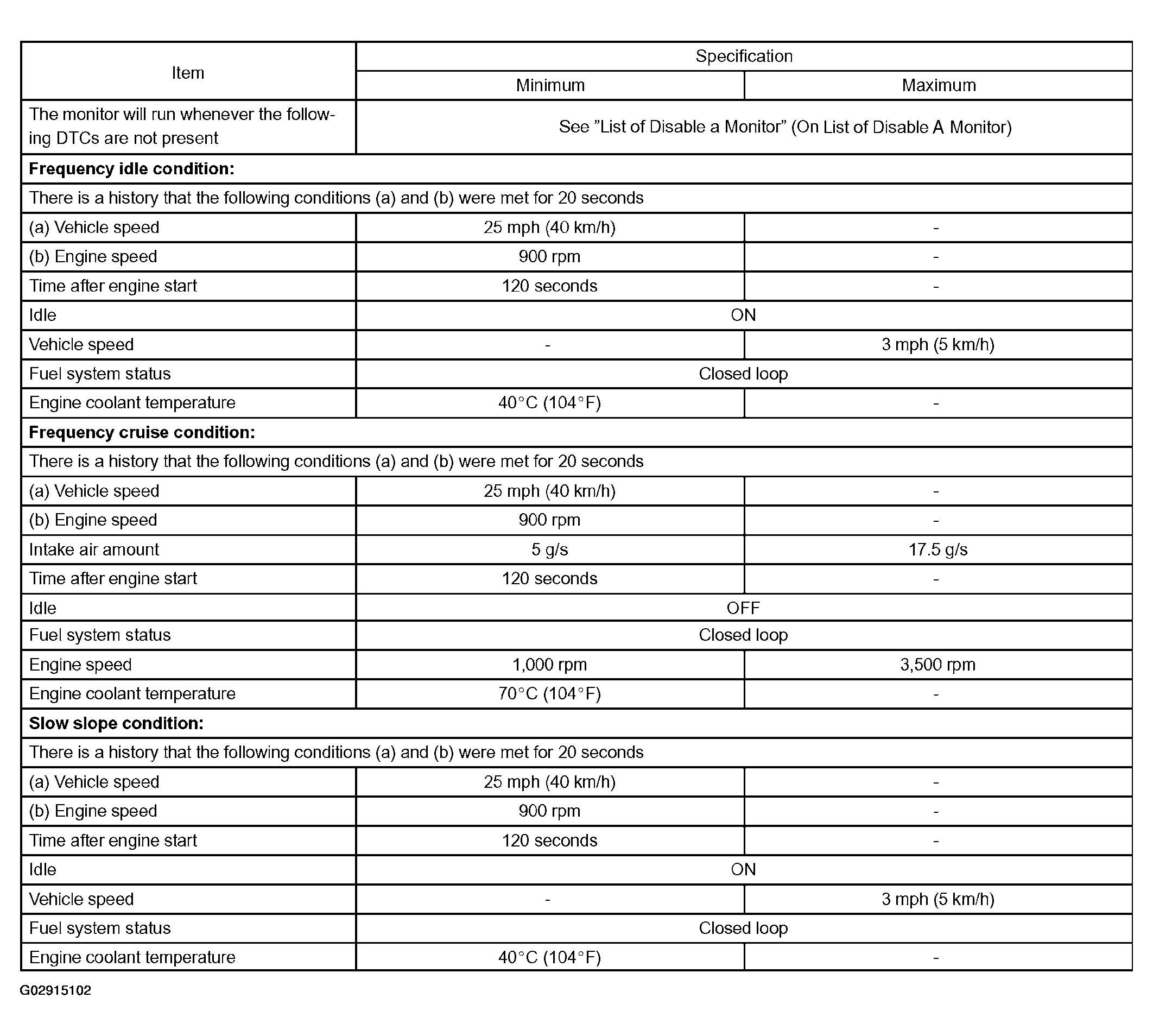

Fig 1: Typical Enabling Condition Table
G02915102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
