Antenna - Navigation: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the instrument panel top cover (Refer to INSTRUMENT PANEL TOP COVER ).
Remove the mounting fasteners (Fig 1 ).

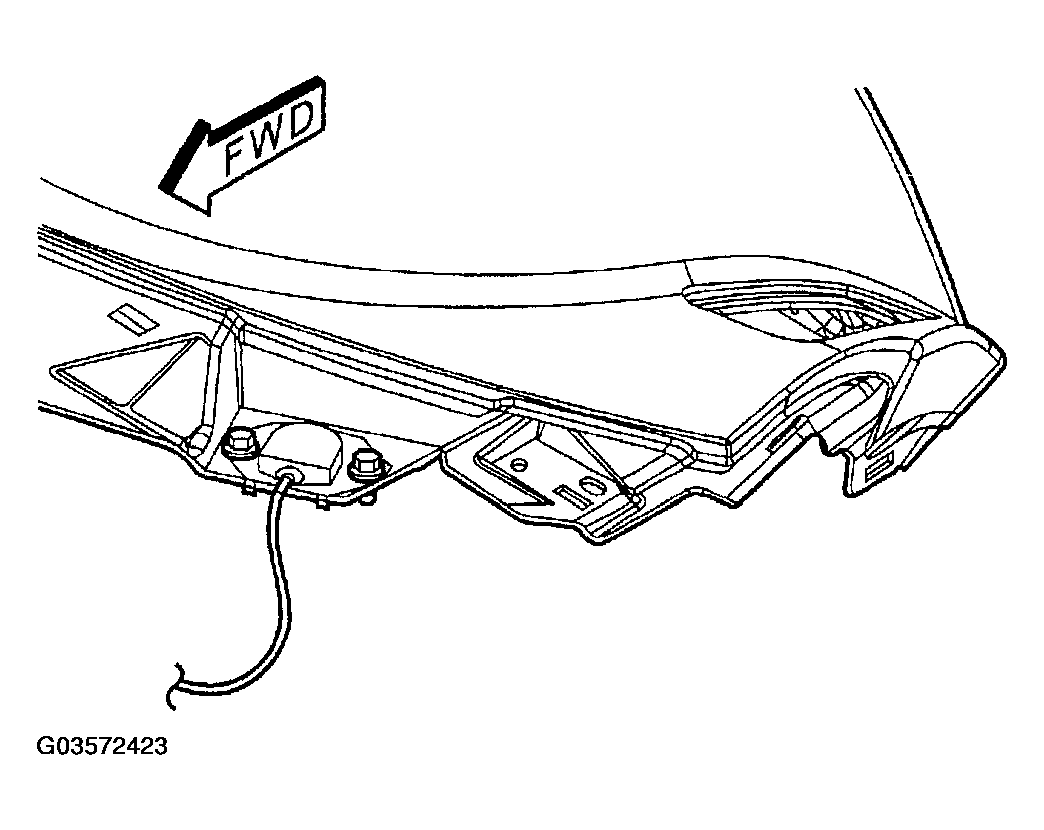

Fig 1: Identifying Antenna Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the antenna connector located near the front passenger side door (Fig 2 ).

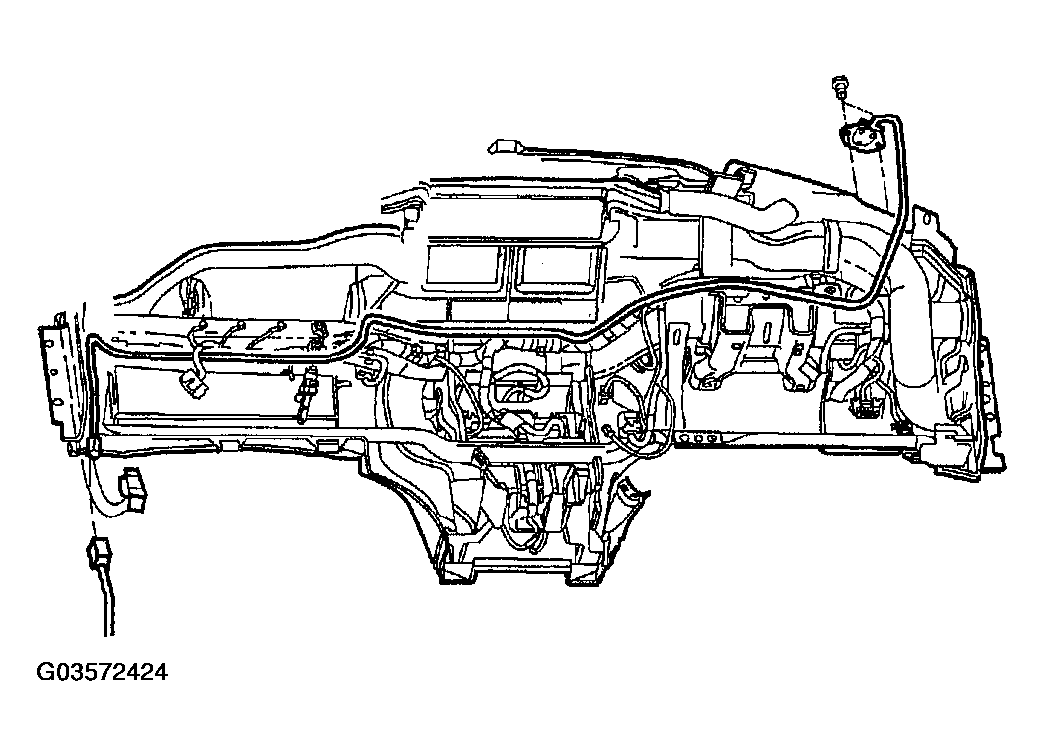

Fig 2: Identifying Antenna Routing
Courtesy of DAIMLERCHRYSLER CORP.
Cut both ends of the cable, leaving the remaining cable in the harness.
