Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT HEADLAMP RELAY
    1. Inspect relay continuity.

      Standard:

      SPECIFIED CONDITION

      Condition Tester connection Specified condition
      Constant 1 - 2 Continuity
      Apply B+ between terminal 1 and 2. 3 - 5 Continuity
      Fig 1: Inspecting Headlamp Relay
      G02894852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE HEADLAMP RELAY
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (BETWEEN INSTRUMENT PANEL J/B ASSY AND HEADLAMP RELAY)
  2. INSPECT HEADLAMP DIMMER SWITCH ASSY (HEAD)
    1. Inspect light control switch continuity.
      1. Check that there is continuity between terminals at each switch position as shown in the chart.
      SPECIFIED CONDITION

      Switch operation Tester connection Specified condition
      OFF - No continuity
      HEAD 13 - 16 - 14 Continuity

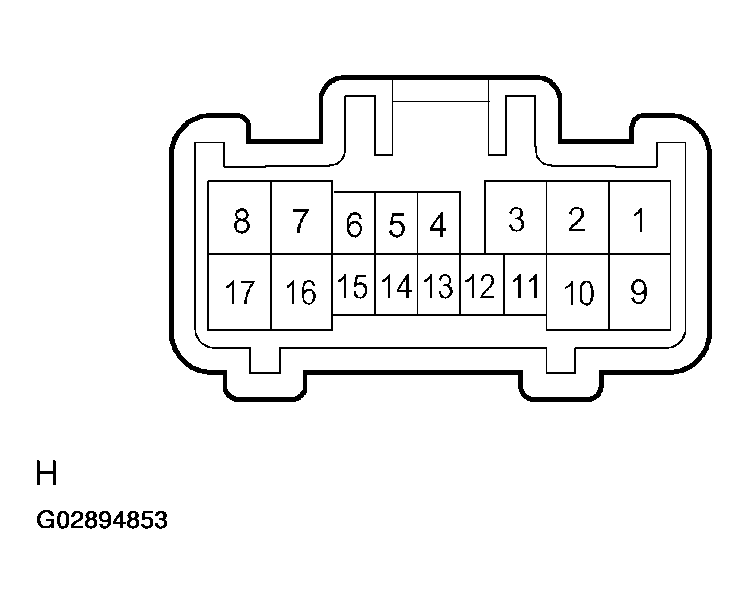

      Fig 2: Inspecting Headlamp Dimmer Switch Assembly
      G02894853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE HEADLAMP DIMMER SWITCH ASSY
    2. OK: CHECK AND REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
