Propeller Shaft Assembly (4WD): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

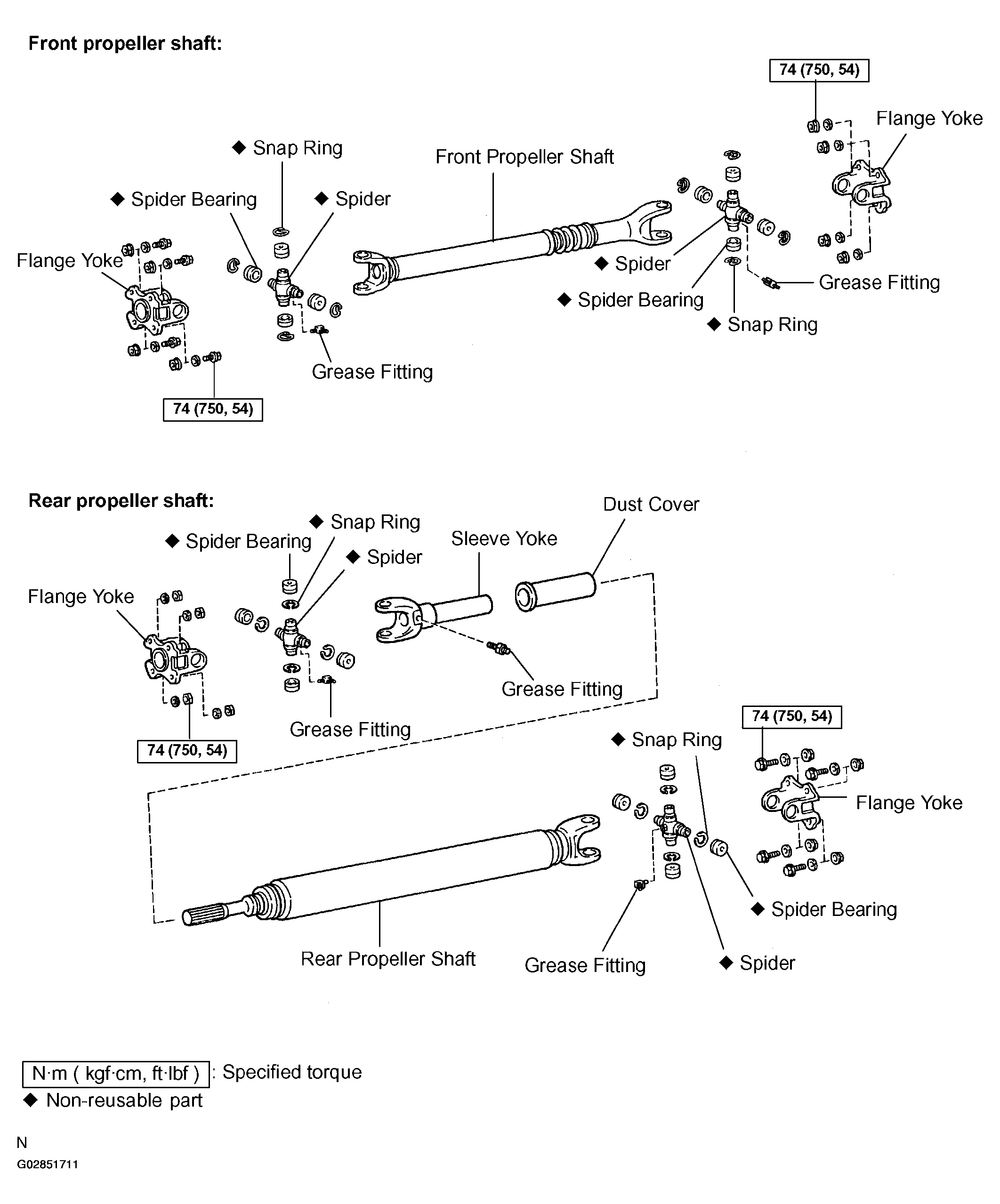

Fig 1: Exploaded View Of Propeller Shaft Assembly (4WD) Components
G02851711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
