Install Propeller Shaft
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- Remove SST from the transmission.
SST 09325-40010
- Insert the yoke into the transmission.

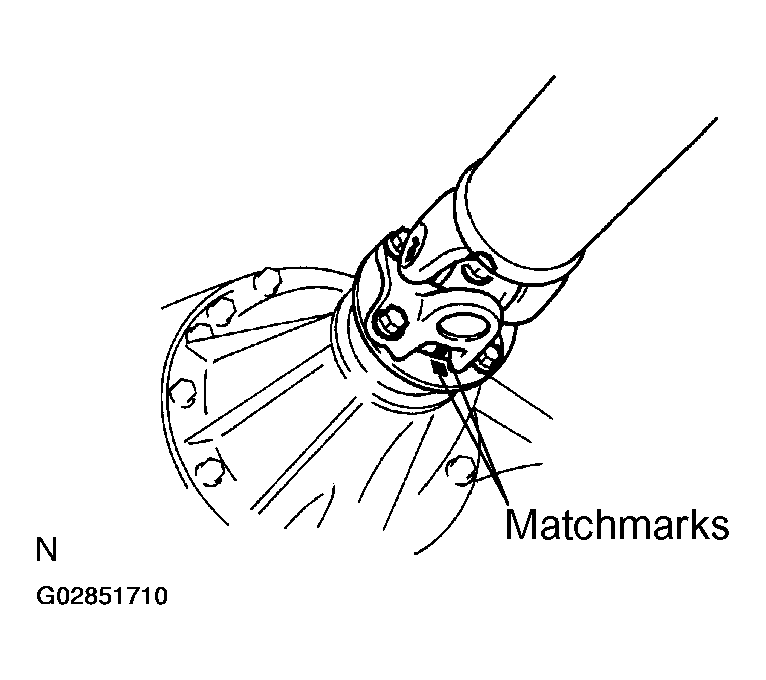

- Align the matchmarks on the flanges and connect the flanges with the 4 stud bolts, washers and nuts.
- Torque the 4 nuts.
Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)
