Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RELAY
1. Inspect TAIL relay continuity.

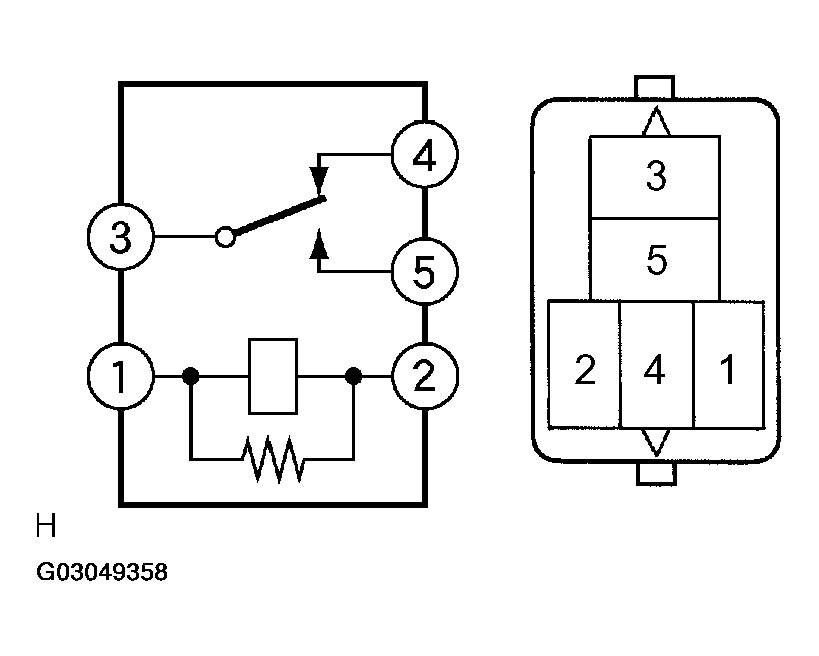

  Fig 1: Inspecting Tail Relay Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Measure the resistance according to the value(s) in Fig 2 .
  Standard:

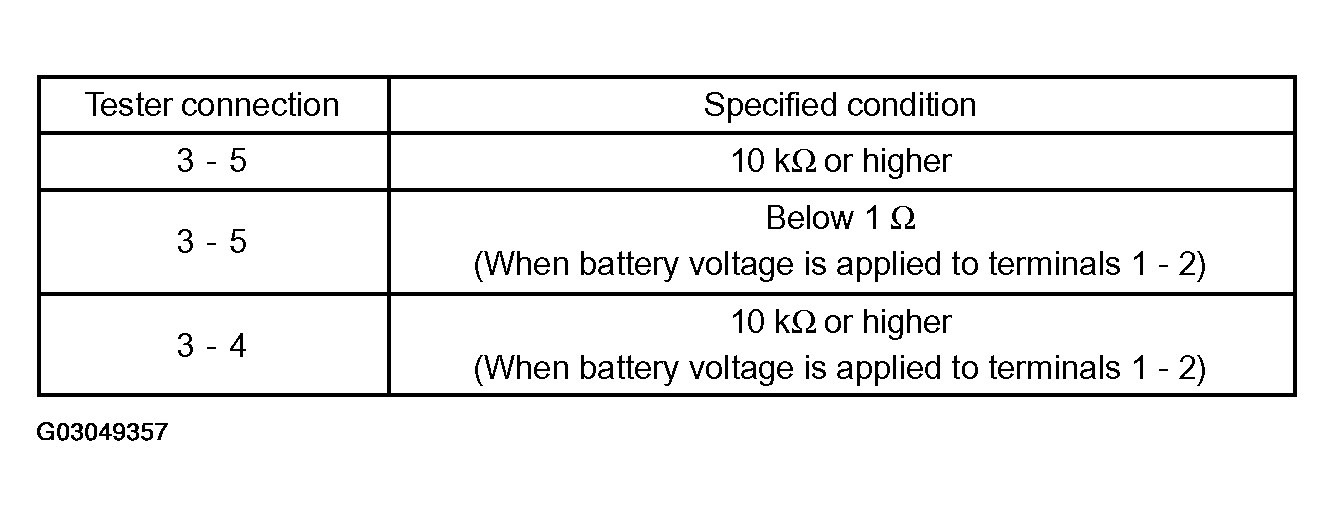

  Fig 2: Measuring Resistance Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE RELAY
2. OK: Go to Next Step.

INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY (POWER SOURCE CIRCUIT)

Disconnect the 2A connector from the instrument panel junction block assy.

Measure the voltage according to the value(s) in SPECIFIED CONDITION .

Standard:

SPECIFIED CONDITION

Tester connection	Condition	Specified condition
2A-1 - Body ground	Always	10 to 14 V

Fig 3: Disconnecting 2A Connector

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - INSTRUMENT PANEL JUNCTION BLOCK ASSY)
OK: Go to Next Step.

INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY
1. Measure the voltage according to the value(s) in Fig 4 .
  Standard:

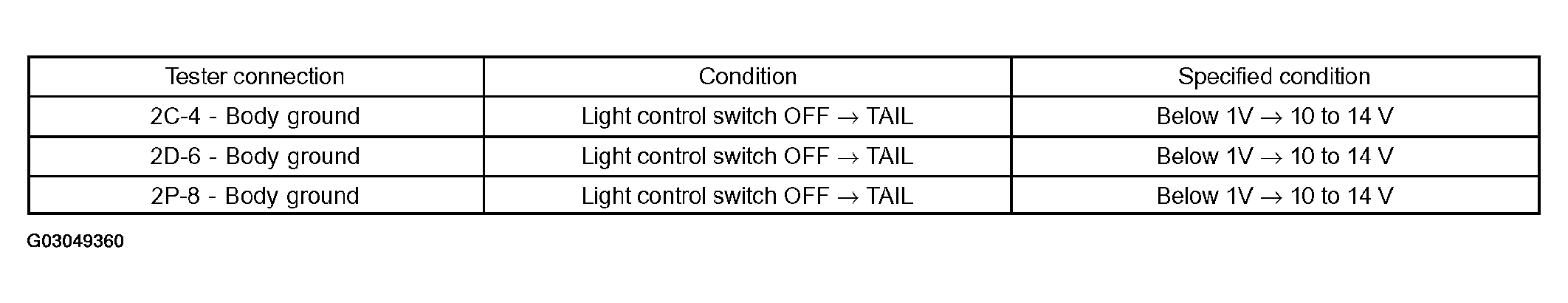

  Fig 4: Measuring Voltage Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

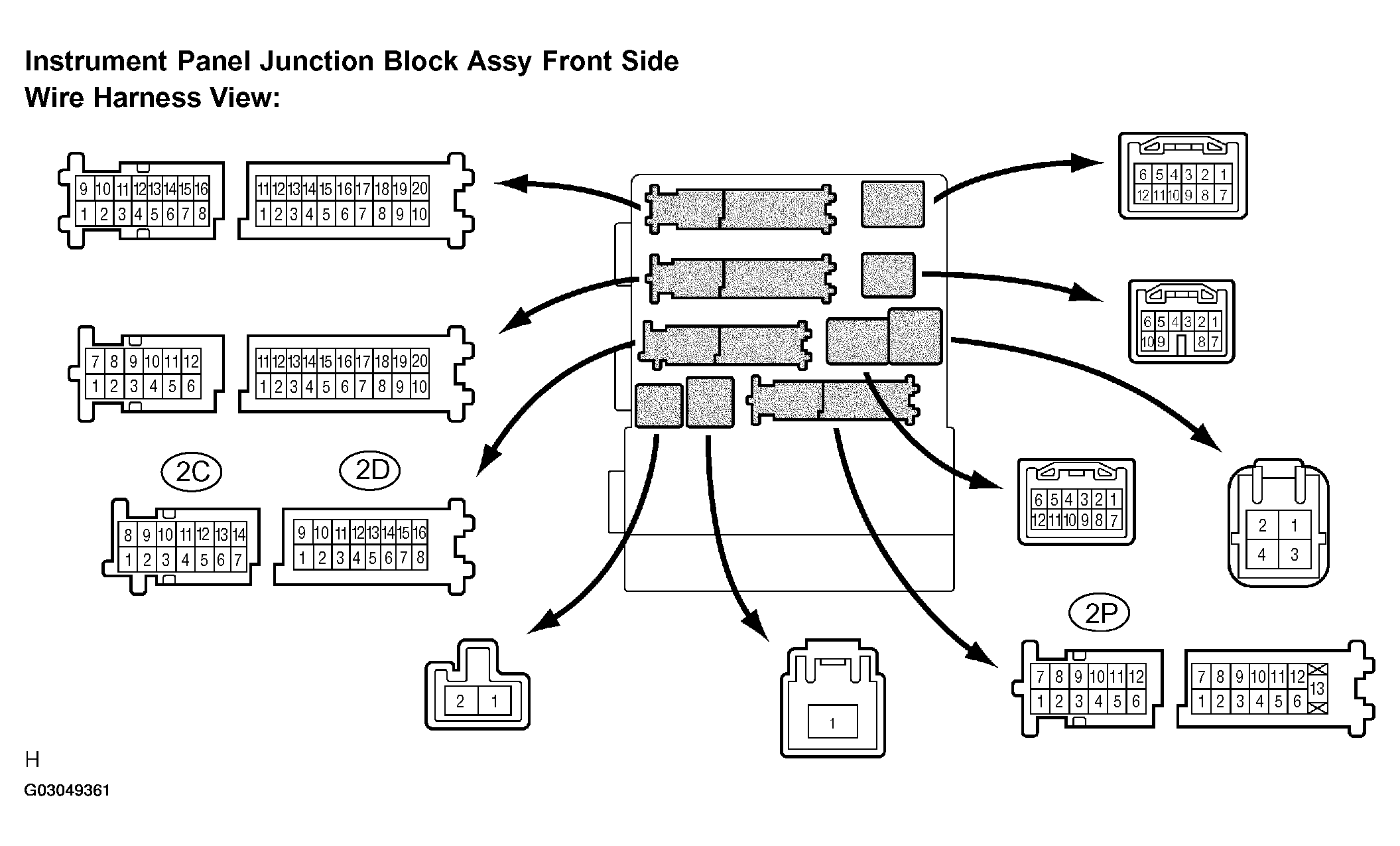

  Fig 5: Inspecting 2C, 2D & 2P Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (EACH OF TAIL LAMP CIRCUIT)
