Engine Control System (SFI) - Diagnostics (1ZZ-FE): Location

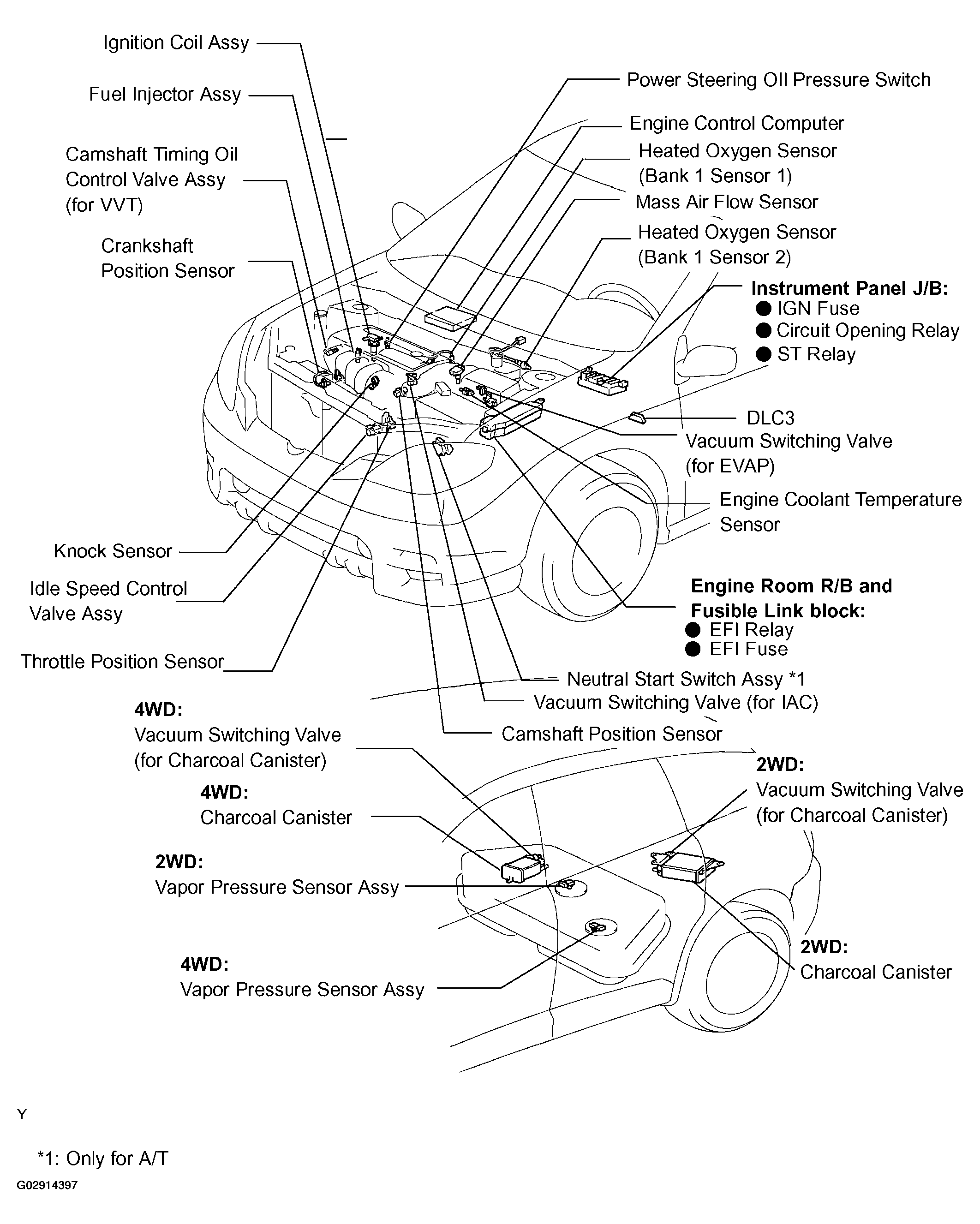

Fig 1: Identifying SFI System Parts

G02914397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
