Rear Seat Belt: Components

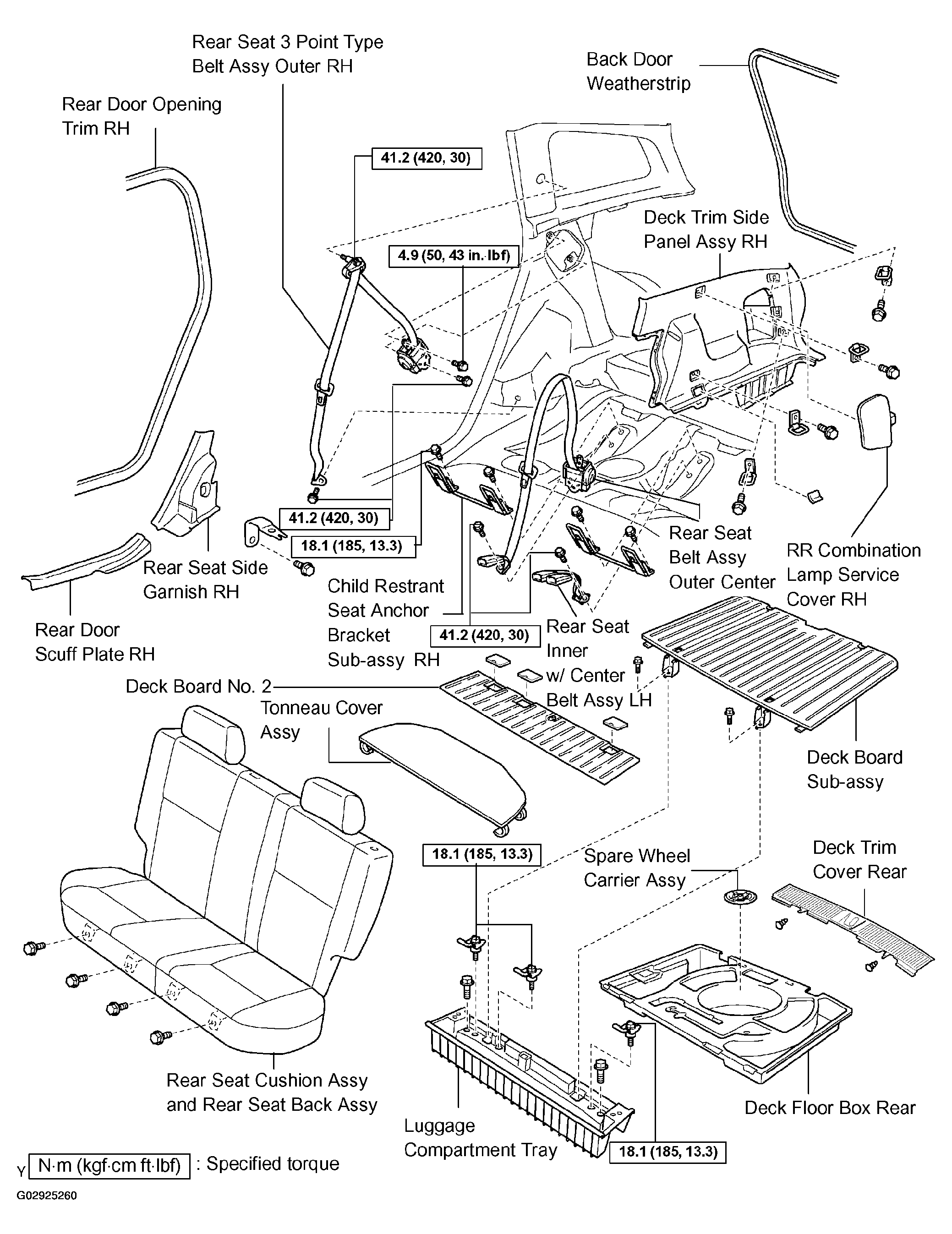

Fig 1: Exploded View Of Rear Seat Belt Assy And Related Components

G02925260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
