Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUSE (ECU-IG, AM1)
    1. Remove the ECU-IG and AM1 fuses from the instrument panel J/B.
    2. Measure the resistance of the switch.

      Standard: Below 1 Ω

    1. NG : REPLACE FUSE
    2. OK : Go to Next Step.
  2. INSPECT RELAY (IG1)
    1. Remove the IG1 relay from the instrument panel J/B.
    2. Check the resistance of the relay.

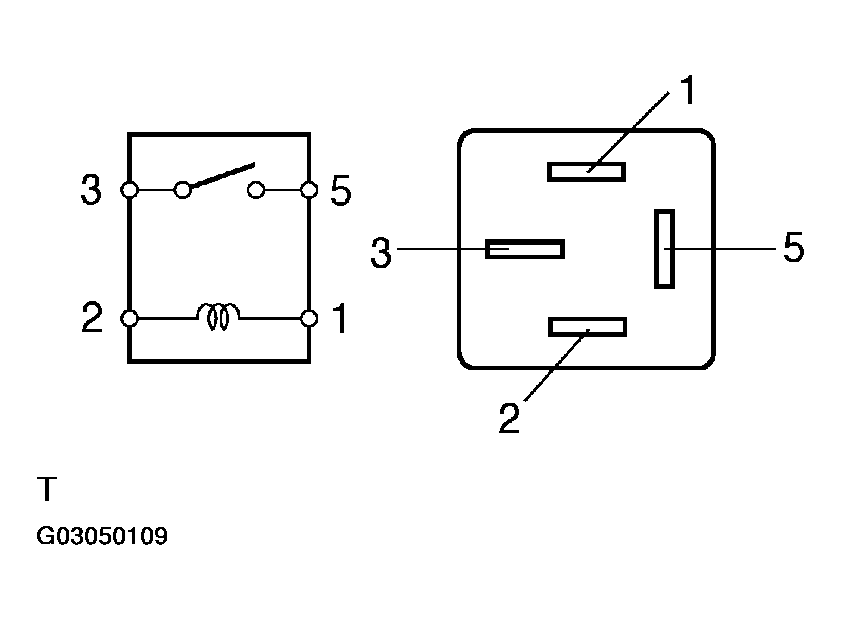

      Fig 1: Checking Resistance Of Relay
      G03050109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
    1. NG : REPLACE RELAY
    2. OK : Go to Next Step.
  3. INSPECT IGNITION SWITCH ASSY
    1. Measure the resistance of the switch.

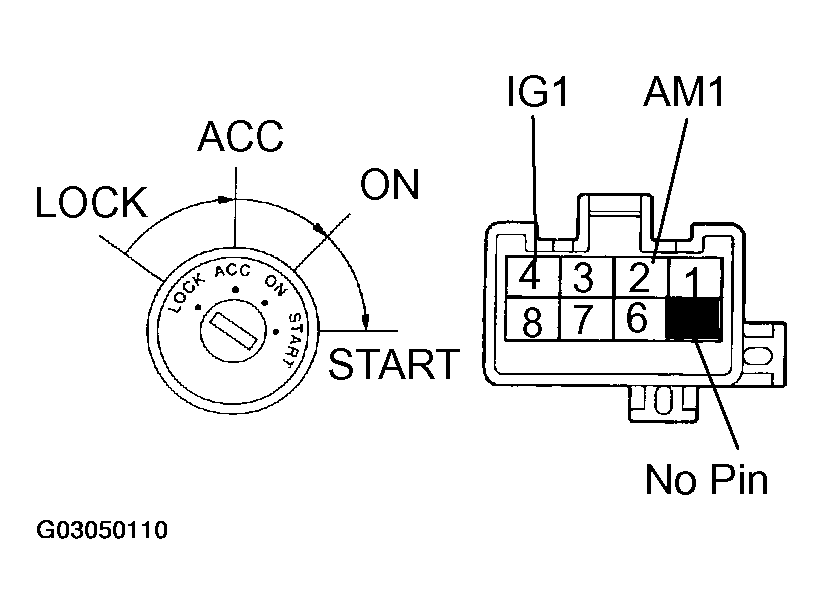

      Fig 2: Measuring Resistance Of Switch
      G03050110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Switch Condition Specified Condition
      2 - 4 ON Below 1 Ω
    1. NG : REPLACE IGNITION SWITCH ASSY
    2. OK : Go to Next Step.
  4. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU) - BATTERY)
    1. Disconnect the 2A J/B connector.
    2. Measure the voltage of the wire harness side connector.

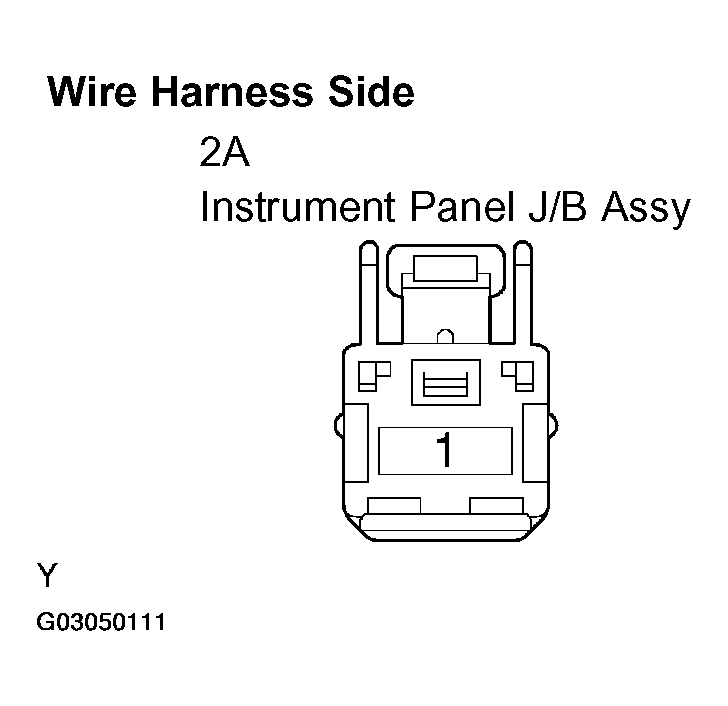

      Fig 3: Measuring Voltage Of Wire Harness Side Connector
      G03050111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      2A-1 - Body ground 10 to 14 V
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : Go to Next Step.
  5. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY - IGNITION SWITCH ASSY)
    1. Disconnect the 2I J/B connector.
    2. Measure the resistance of the wire harness side connector.

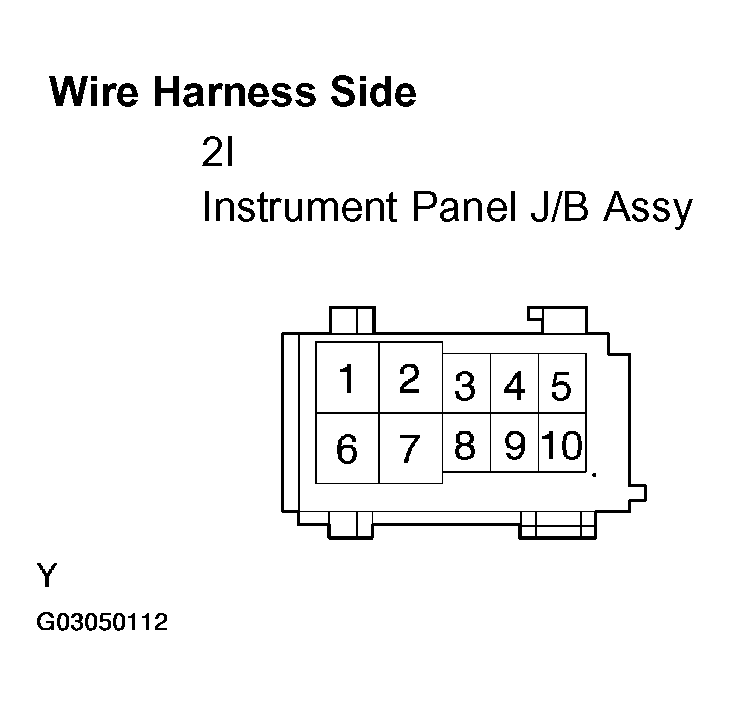

      Fig 4: Measuring Resistance Of Wire Harness Side Connector
      G03050112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection /Condition Specified Condition
      2I-4 - 2I-9 Ignition switch ON Below 1 Ω
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : Go to Next Step.
  6. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY - BODY GROUND)
    1. Disconnect the 2F J/B connector.
    2. Measure the resistance of the wire harness side connector.

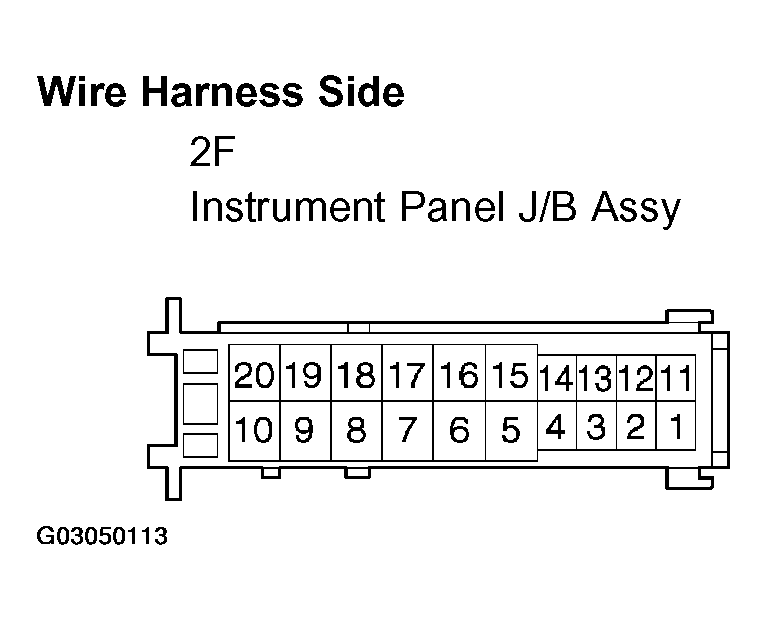

      Fig 5: Measuring Resistance Of Wire Harness Side Connector
      G03050113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      CONNECTOR TERMINAL DESCRIPTION

      Tester Connection Specified Condition
      2F-10 - Body ground Below 1 Ω
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
