Operation Check

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

As for an ABS vehicle, perform procedure from step 2.

TEST MODE (USING SST CHECK WIRE)

Make sure the ignition switch is OFF.
Using SST, connect terminals TS and CG of the DLC3.
SST 09843-18040
Turn the ignition switch to the ON position.

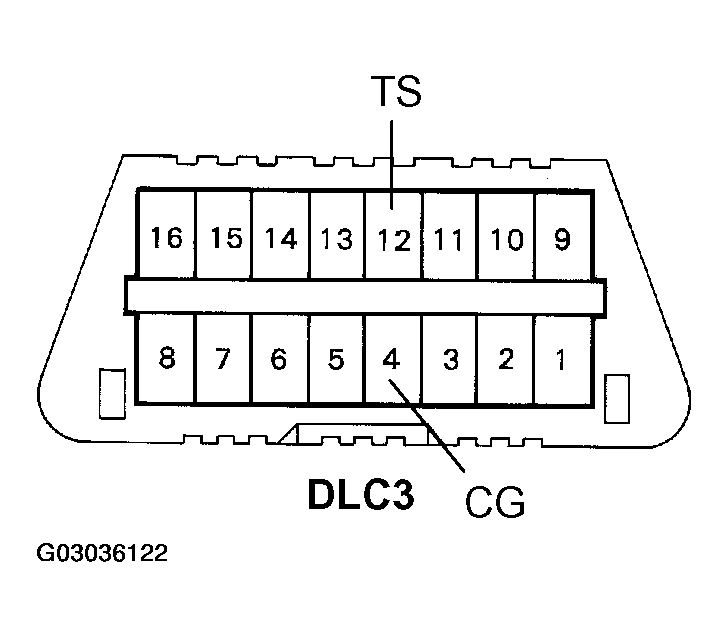

Fig 1: Connecting Terminals TS & CG Of DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Press the tire pressure warning reset switch.

Check that the tire pressure warning lamp comes on.

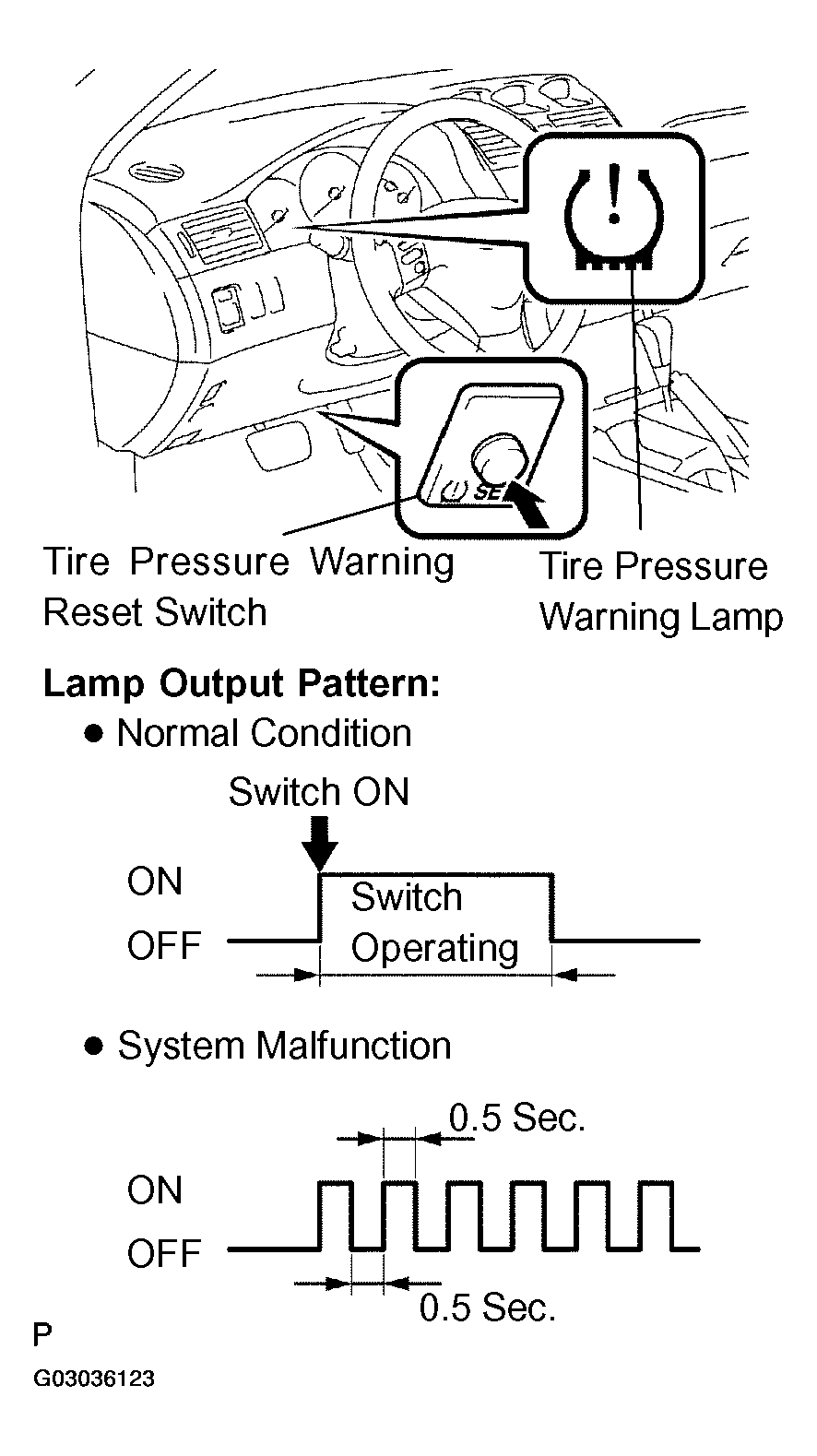

Fig 2: Checking Tire Pressure Warning Lamp Comes ON

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Unless ( d) above is done, the tire pressure warning lamp remains off while in TEST mode.
When there is a problem with the tire pressure warning system, the tire pressure warning lamp blinks at 0.5 second intervals.

If the lamp output result is not normal, proceed to the problem symptoms table or TS terminal circuit.

ITEM SPECIFICATION

Item	See
Problem symptoms table	PROBLEM SYMPTOMS TABLE
TS and CG terminal circuit	TS AND CG TERMINAL CIRCUIT

Turn the ignition switch off.
Remove the SST from the DLC3.
SST 09843-18040
Turn the ignition switch to the ON position.
Check that the tire pressure warning lamp goes off.
Initialize the tire pressure warning system (see INITIALIZATION ).

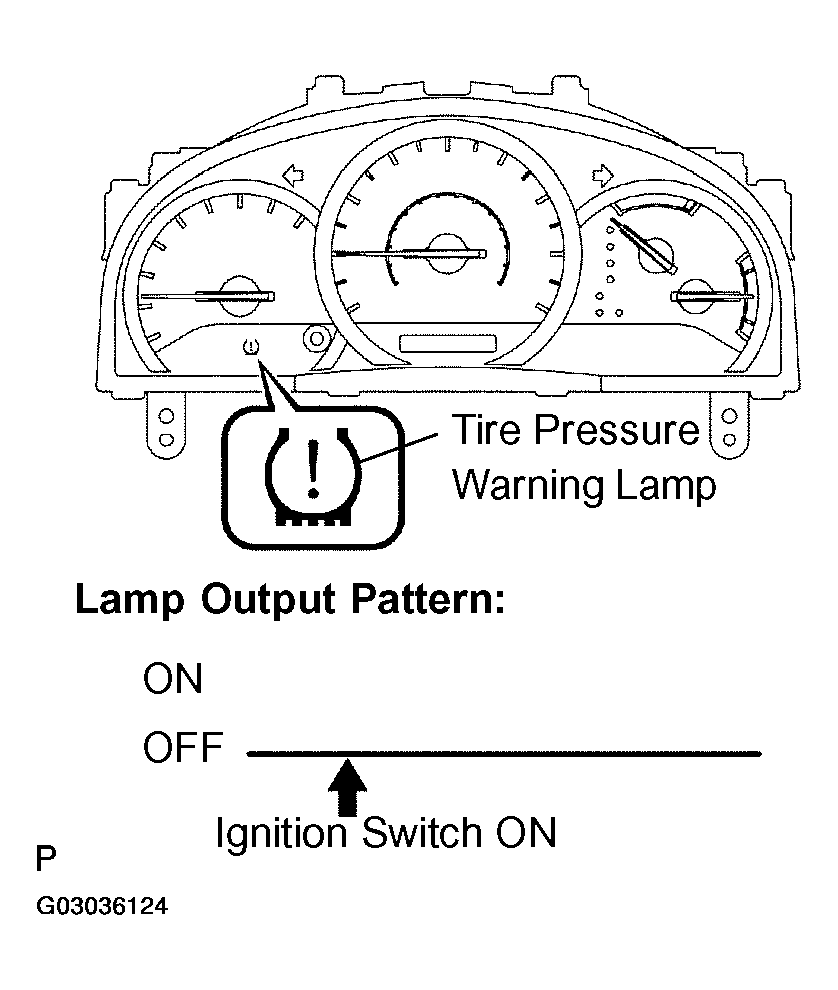

Fig 3: Checking Tire Pressure Warning Lamp

TEST MODE (USING THE HAND-HELD TESTER)
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Select "SIGNAL CHECK", and proceed checking with the hand-held tester.

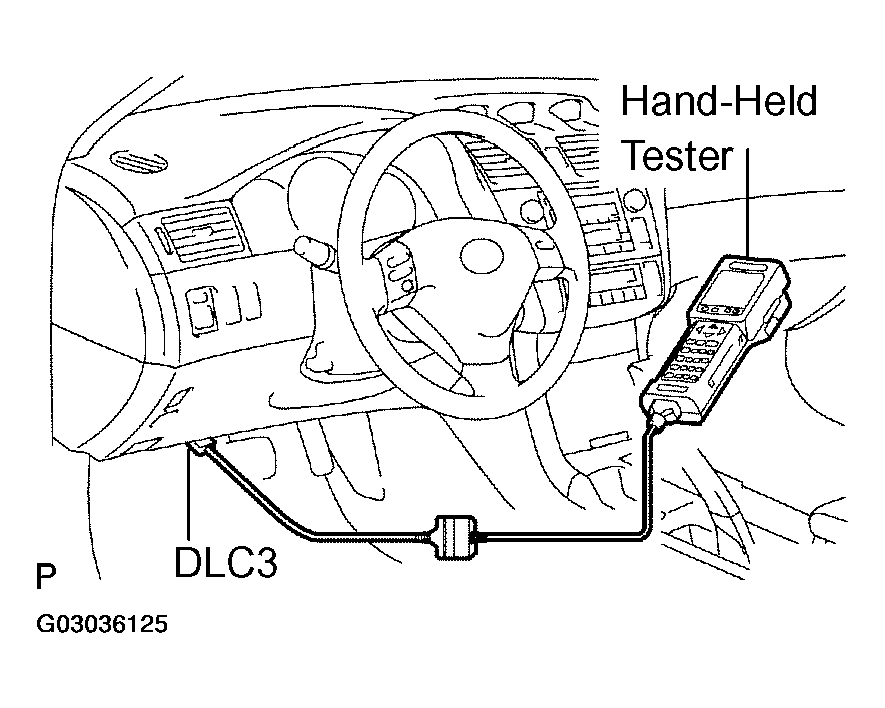

  Fig 4: Connecting Hand-Held Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Press the tire pressure warning reset switch.
5. Check that the tire pressure warning lamp comes on.

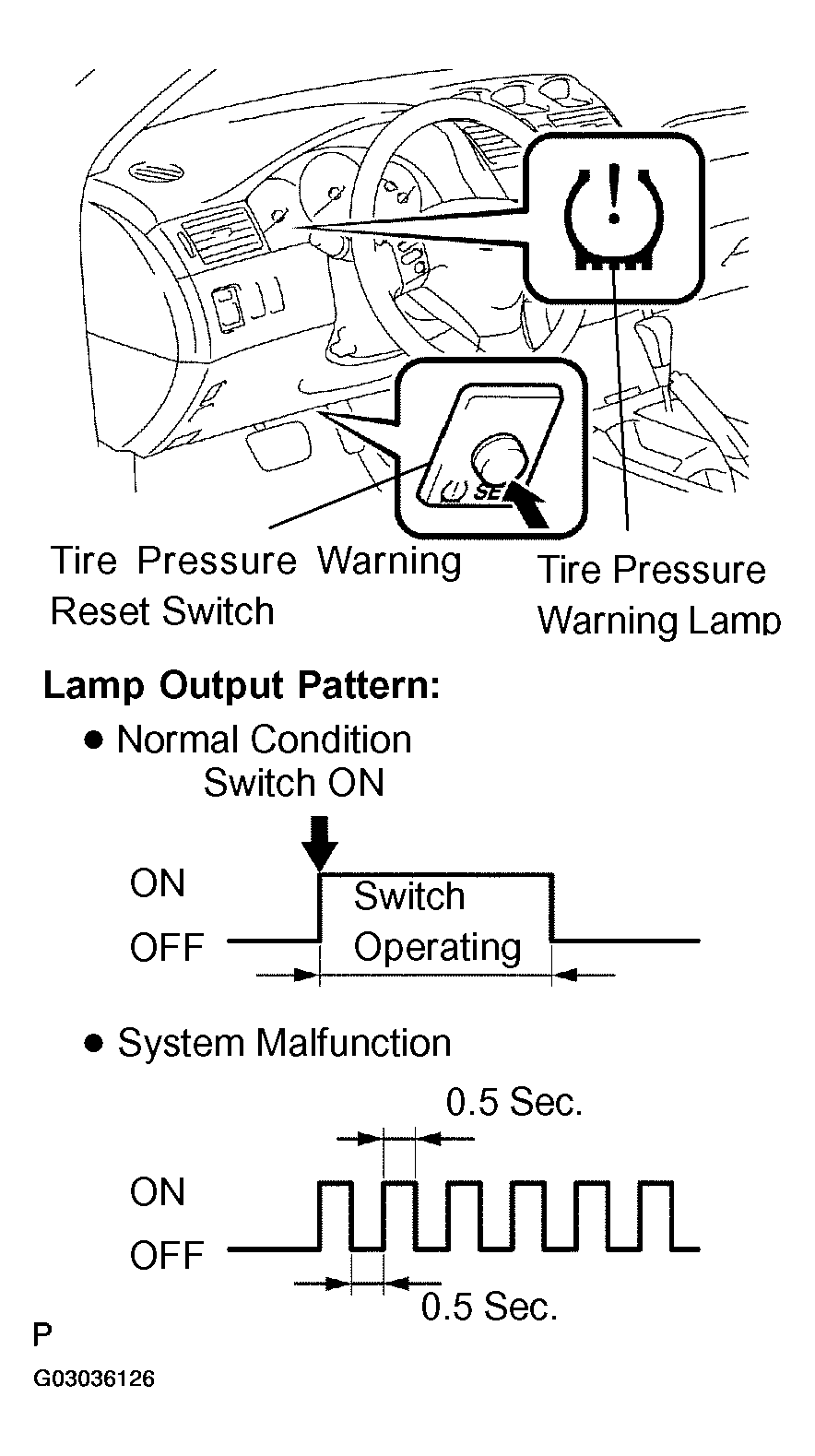

  Fig 5: Checking Tire Pressure Warning Lamp Comes ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Unless ( d) above is done, the tire pressure warning lamp remains off while in TEST mode.
  - When there is a problem with the tire pressure warning system, the tire pressure warning lamp blinks at 0.5 second intervals.
  If the lamp output result is not normal, proceed to the problem symptoms table (see PROBLEM SYMPTOMS TABLE ).
6. Turn the ignition switch off.
7. Turn the ignition switch to the ON position.
8. Check that the tire pressure warning lamp goes off.
9. Initialize the tire pressure warning system (see INITIALIZATION ).

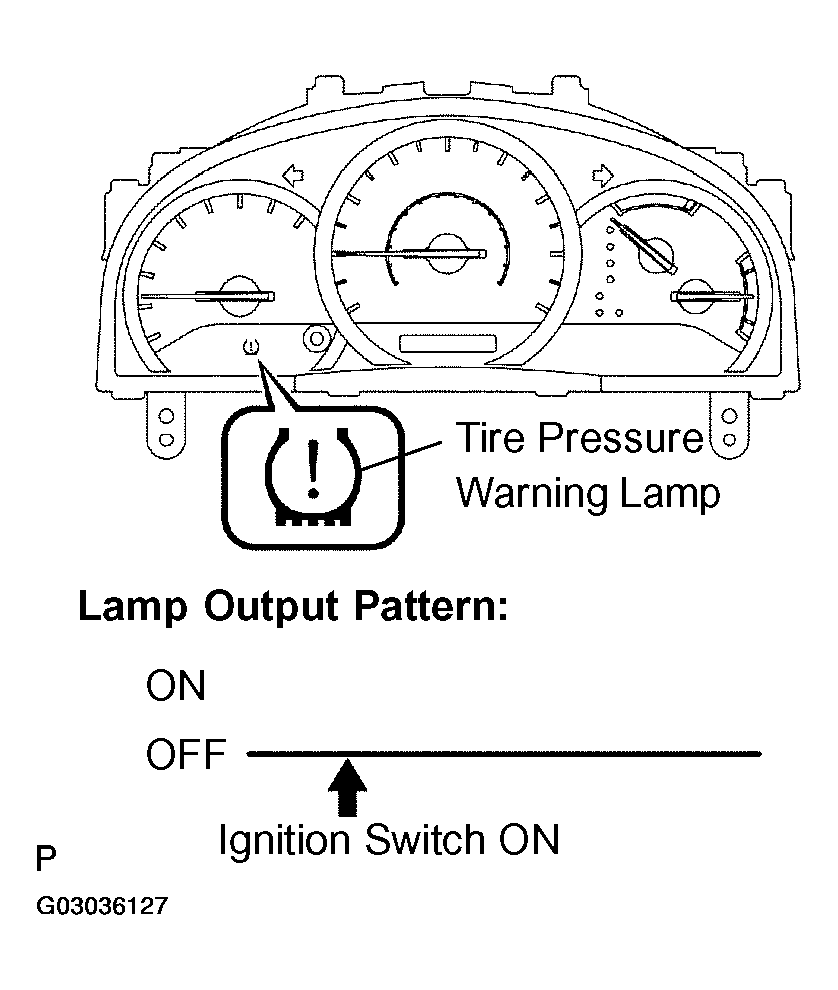

Fig 6: Checking Tire Pressure Warning Lamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
