Data List/Active Test: Notes

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

DATA LIST
HINT:

By accessing the ABS DATA LIST displayed by the hand-held tester, you can read the value of the switches and sensors without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one method to shorten labor time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Following the display on the tester, select the ABS "DATA LIST".
ABS:

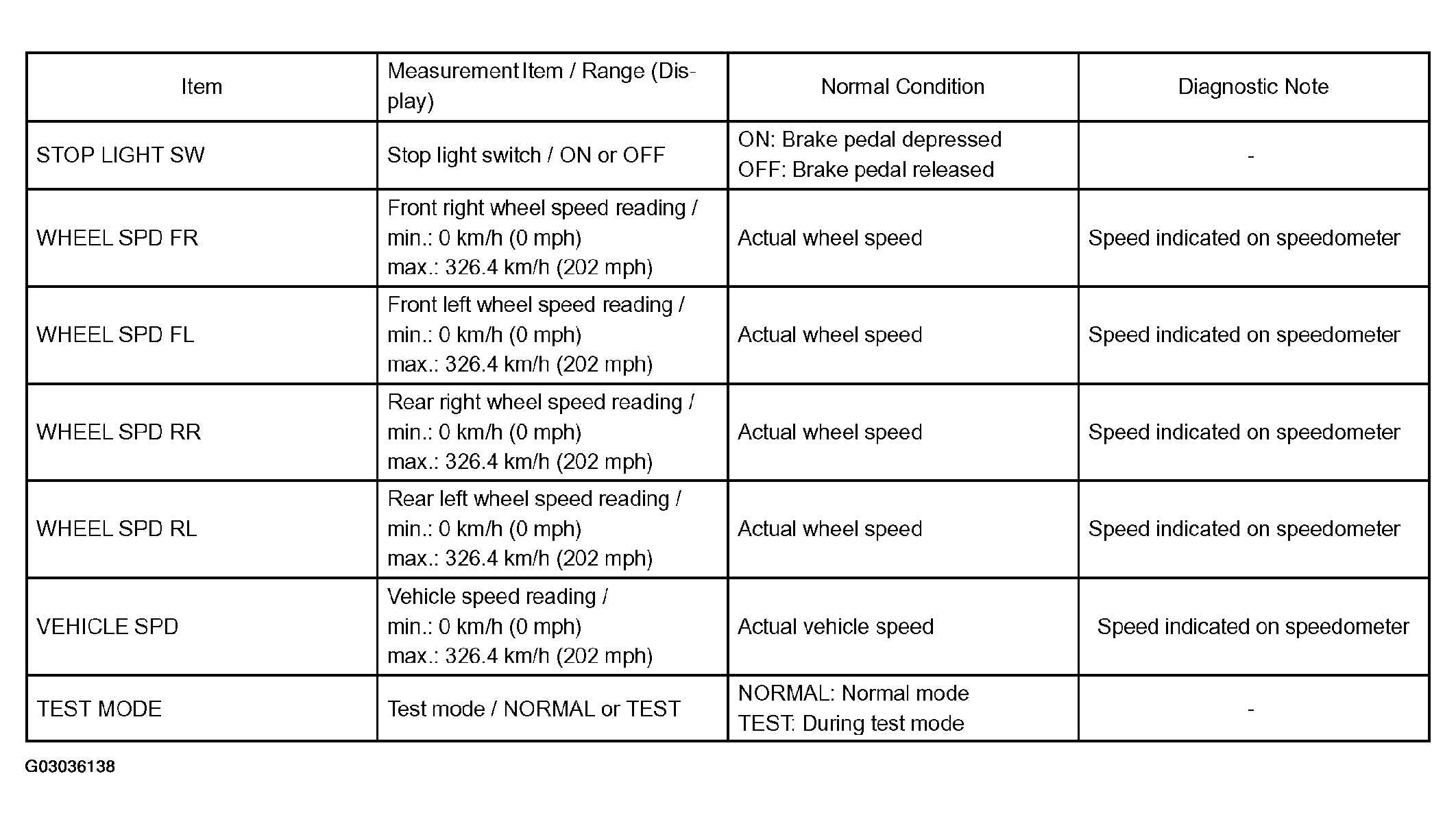

Fig 1: ABS Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ACTIVE TEST LIST

HINT:

Perform the ACTIVE TEST using the hand-held tester to operate the ABS warning lights. Performing the ACTIVE TEST is one of the methods to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

Connect the hand-held tester to the DLC3.
Turn the ignition switch to the ON position.
Following the display on the tester, perform the "ACTIVE TEST".

ABS ACTIVE TEST LIST

Item	Vehicle Condition / Test Details	Diagnostic Note
ABS WARN LIGHT	ABS warning light / ON or OFF	-
