Front Suspension System: Repair
NOTE:
This is a flow chart for vehicle pull
Fig 1
.

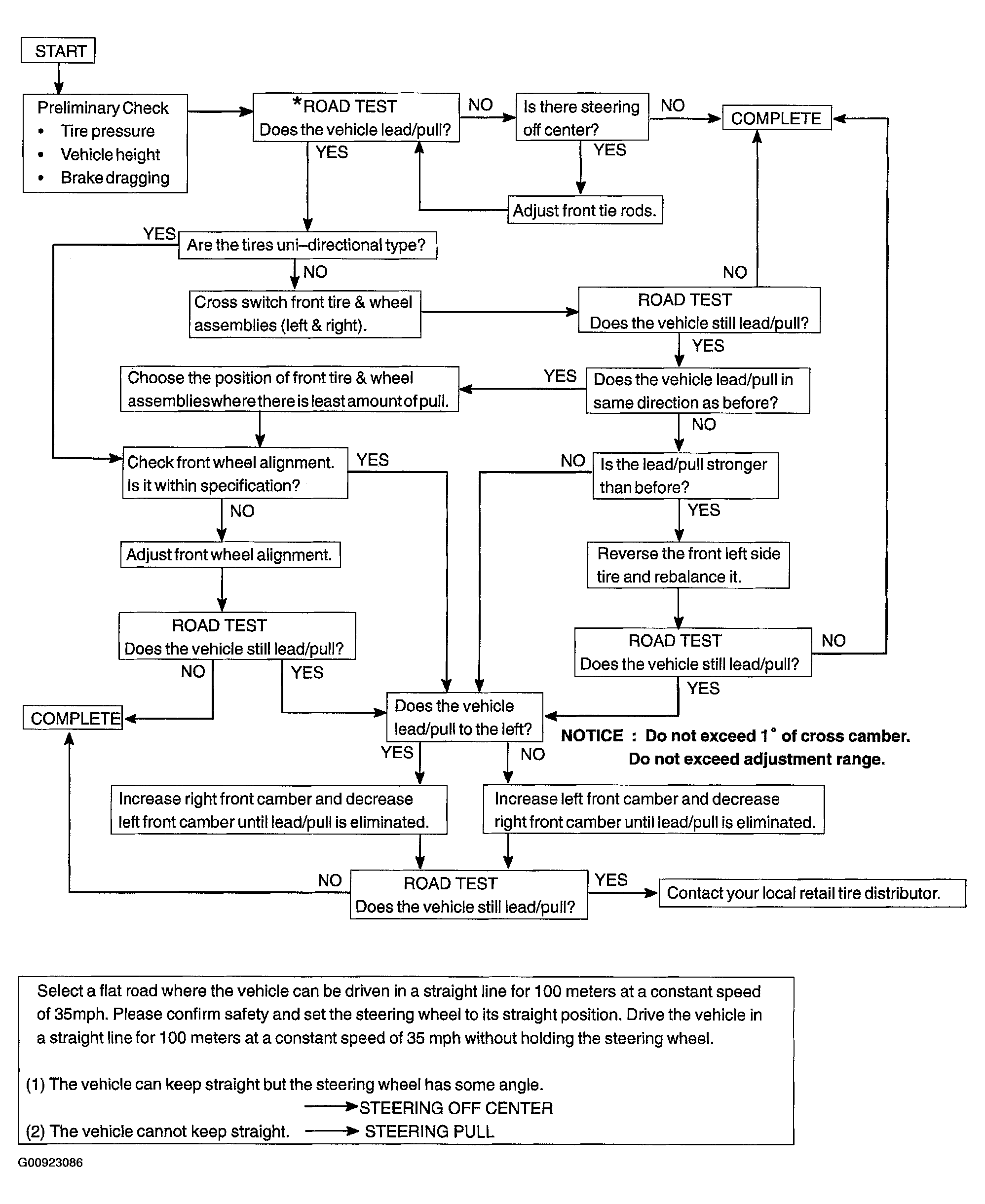

Fig 1: Vehicle Pull - Diagnostic Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
