Vibration Damper: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Raise vehicle on hoist.
  3. Remove the right front wheel and accessory drive belt splash shield.
  4. Remove accessory drive belt (Refer to DRIVE BELTS .
  5. Remove vibration damper bolt.
  6. Use Special Tool 1023 puller, and insert 9020-R, remove crankshaft damper (Fig 1 )

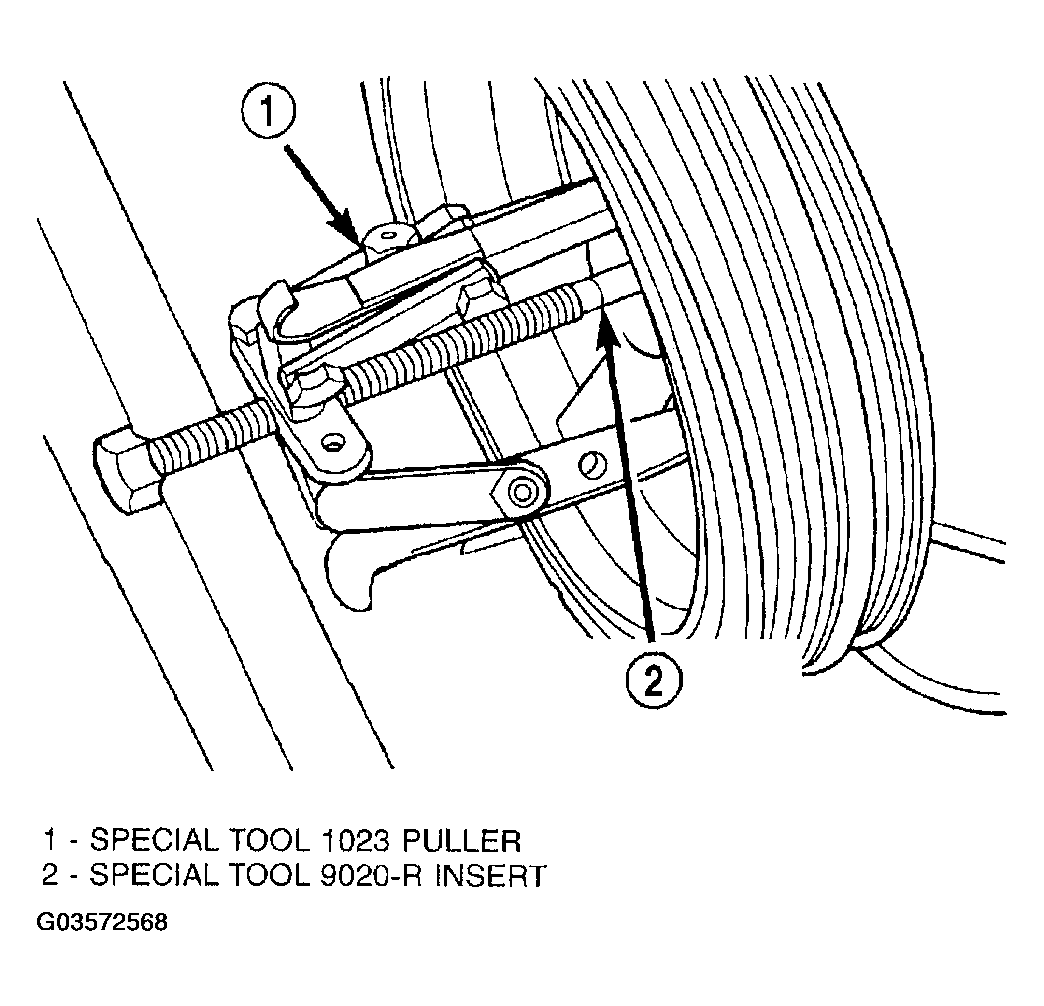

    Fig 1: Removing Crankshaft Damper
    G03572568Courtesy of DAIMLERCHRYSLER CORP.
