Spark Plug Tube: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head cover(s). (Refer to CYLINDER HEAD COVER(S) - REMOVAL  )
  2. Using suitable locking pliers, remove the tube from the cylinder head (Fig 1 ) and discard tube.

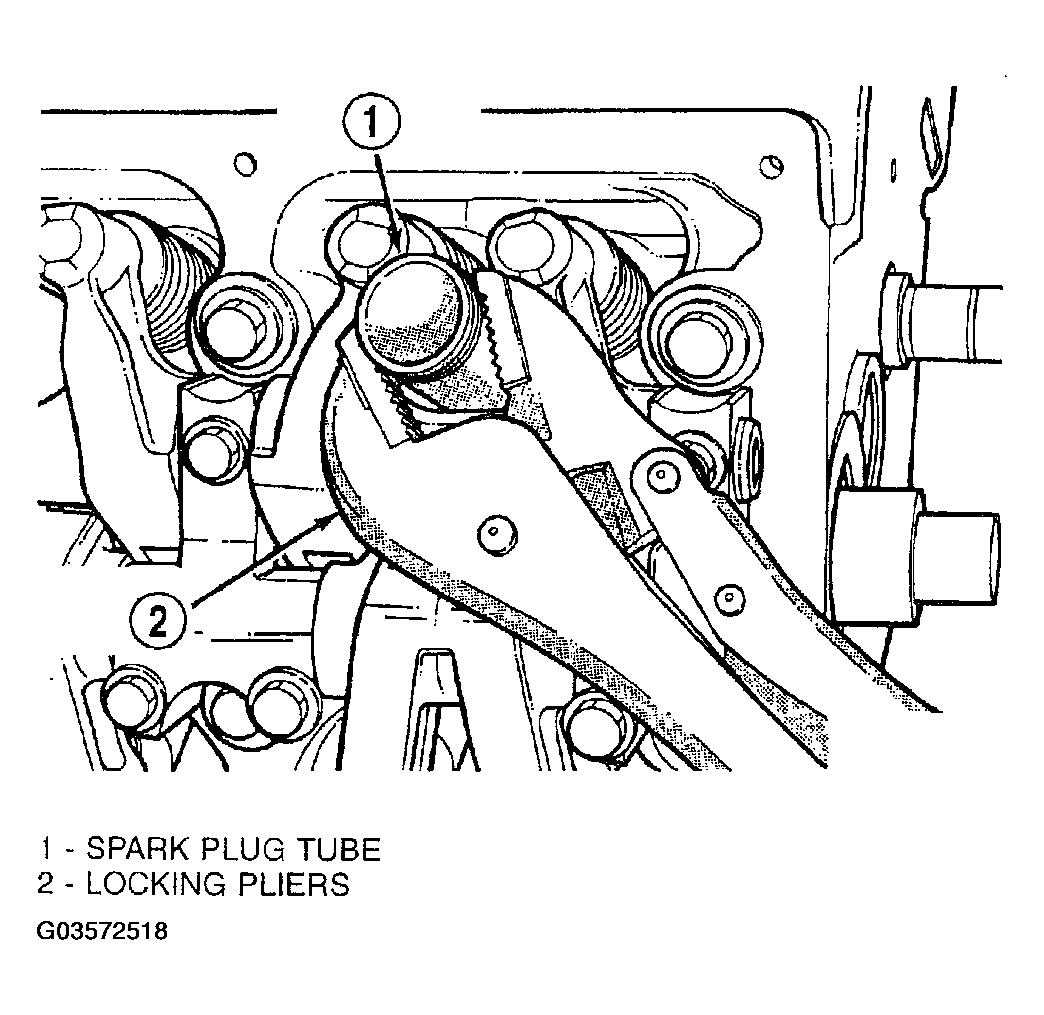

    Fig 1: Servicing Spark Plug Tubes
    G03572518Courtesy of DAIMLERCHRYSLER CORP.
  3. Clean area around spark plug with Mopar(R) Parts Cleaner or equivalent.
