Oil Pump: Assembly

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble oil pump using new parts as required.

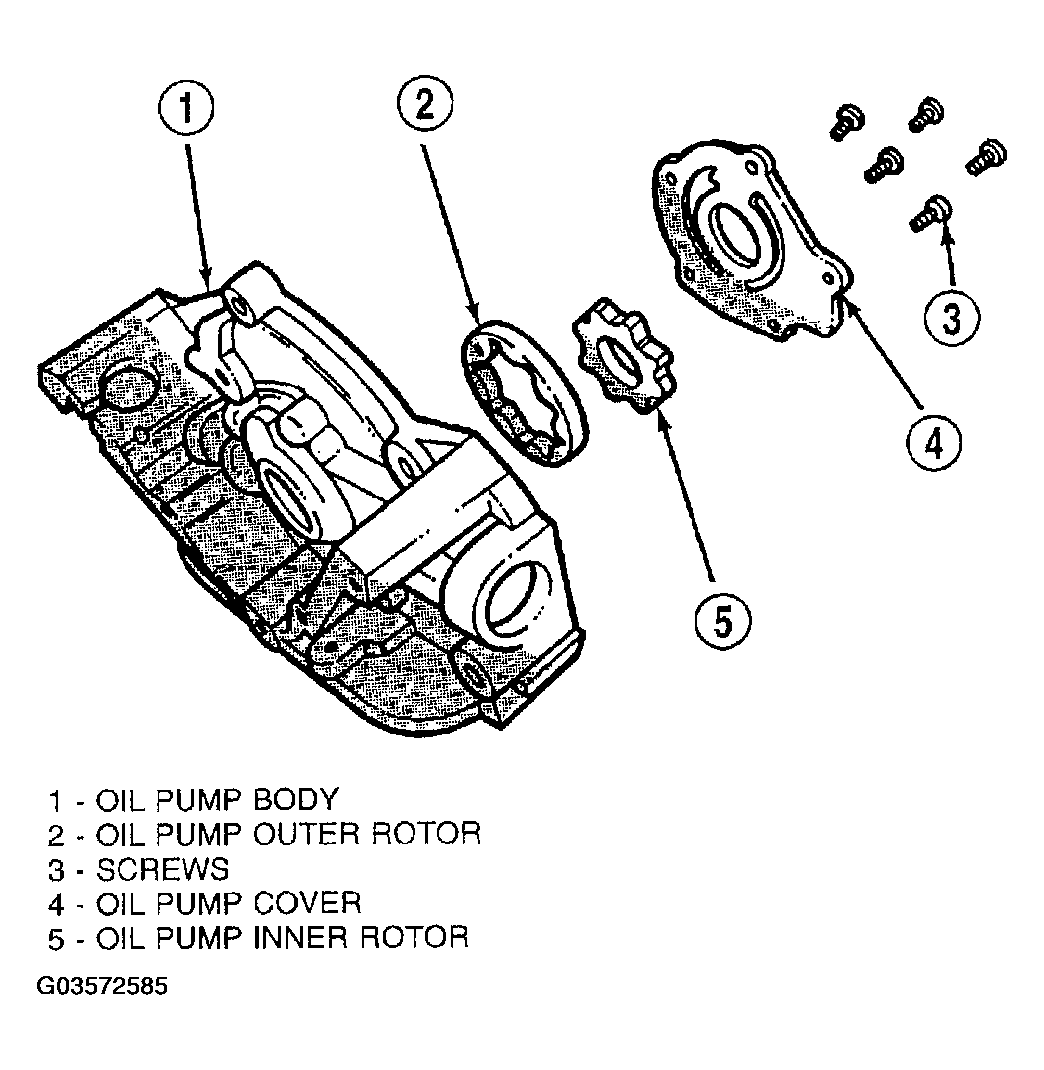

  2. Tighten cover screws to 12 N.m (105 in. lbs.) (Figure ).
  3. Prime oil pump before installation by filling rotor cavity with engine oil.
  4. If oil pressure is low and pump is within specifications, inspect for worn engine bearings or other reasons for oil pressure loss.
