Engine Oil Cooler: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

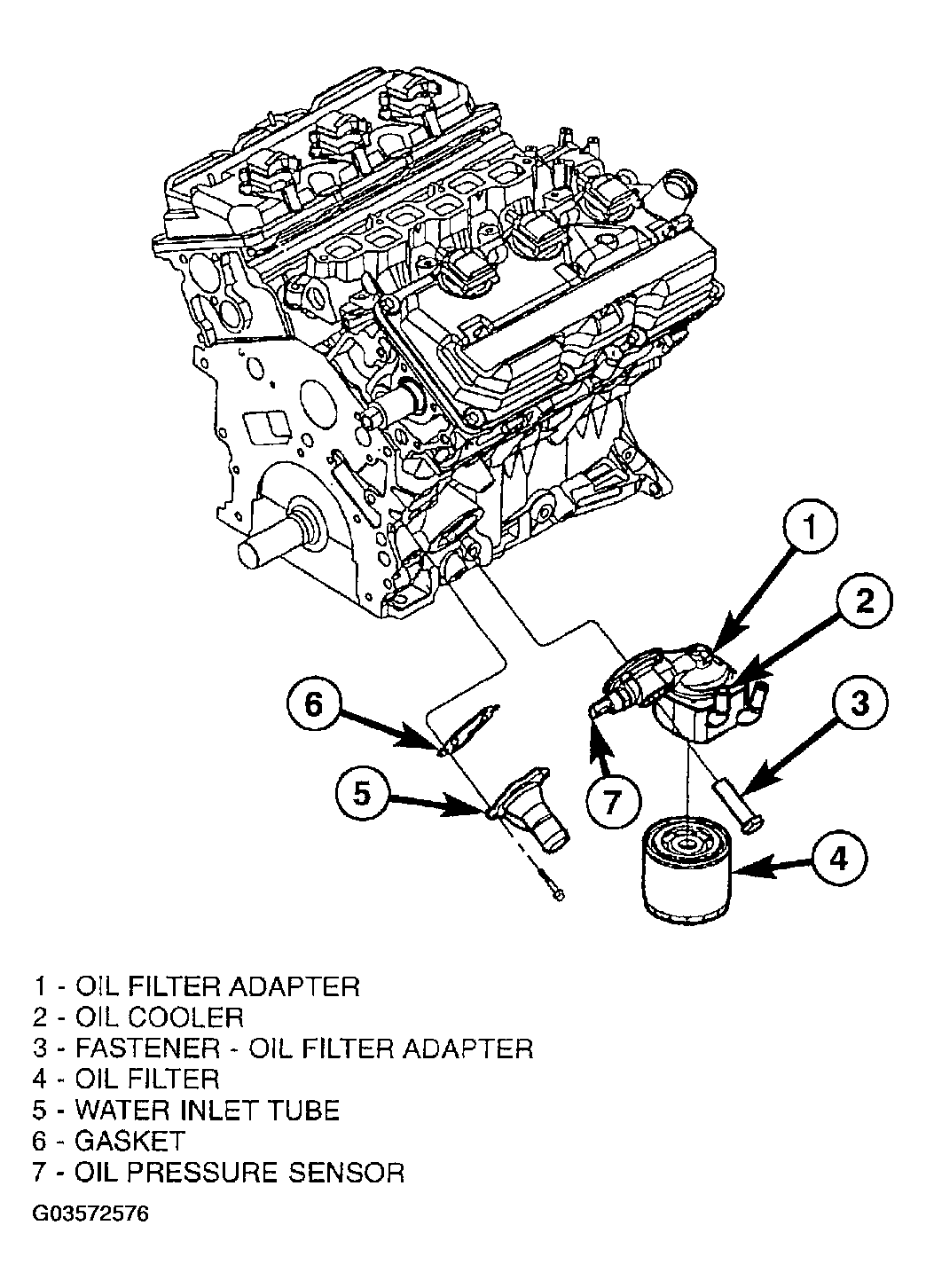

  1. Lubricate seal and position oil cooler to fitting on oil filter adapter (Figure ).
    NOTE: Position the flat side of oil cooler parallel to oil pan rail.
  2. Install oil cooler attaching fastener and tighten to 54 N.m (40 ft. lbs.) (Figure ).
  3. Install oil filter (Figure ).
  4. Connect coolant hoses to oil cooler (Figure ).
  5. Fill cooling system (Refer to STANDARD PROCEDURE - COOLING SYSTEM FILLING ).
