Section 954 (3.5L Engine (Service Information))
>>
Engine 3.5L
>>
Special Tools
>>
3.5L Engine
3.5L Engine
WARNING:
This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

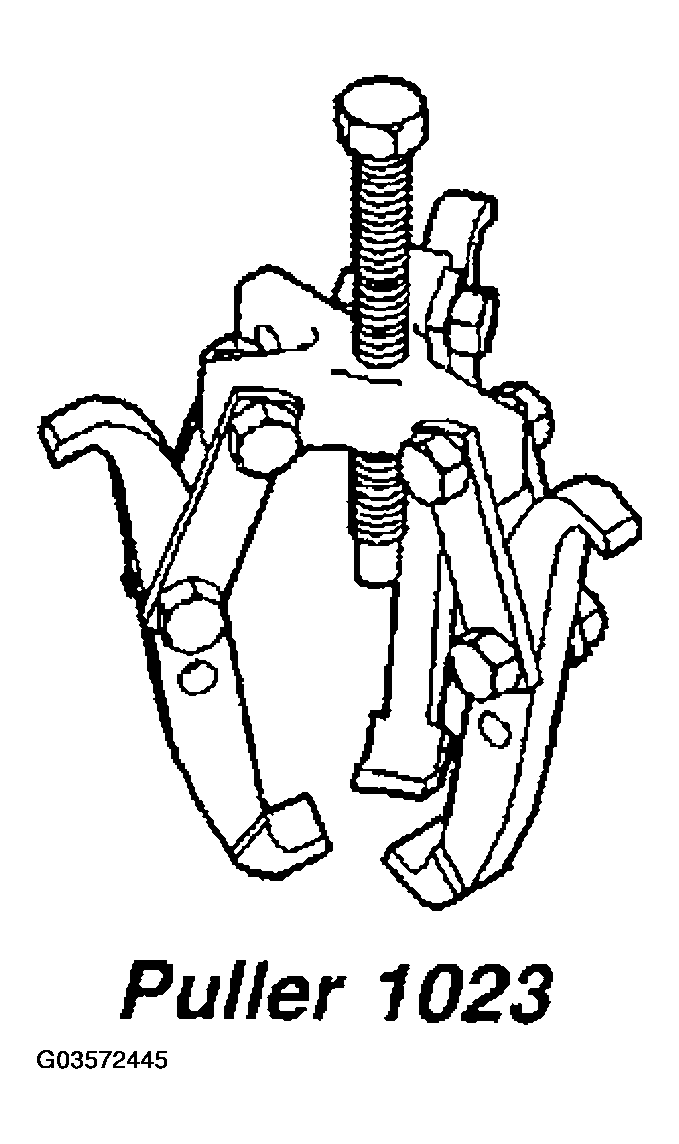

Fig 1: Identifying Puller 1023
Courtesy of DAIMLERCHRYSLER CORP.

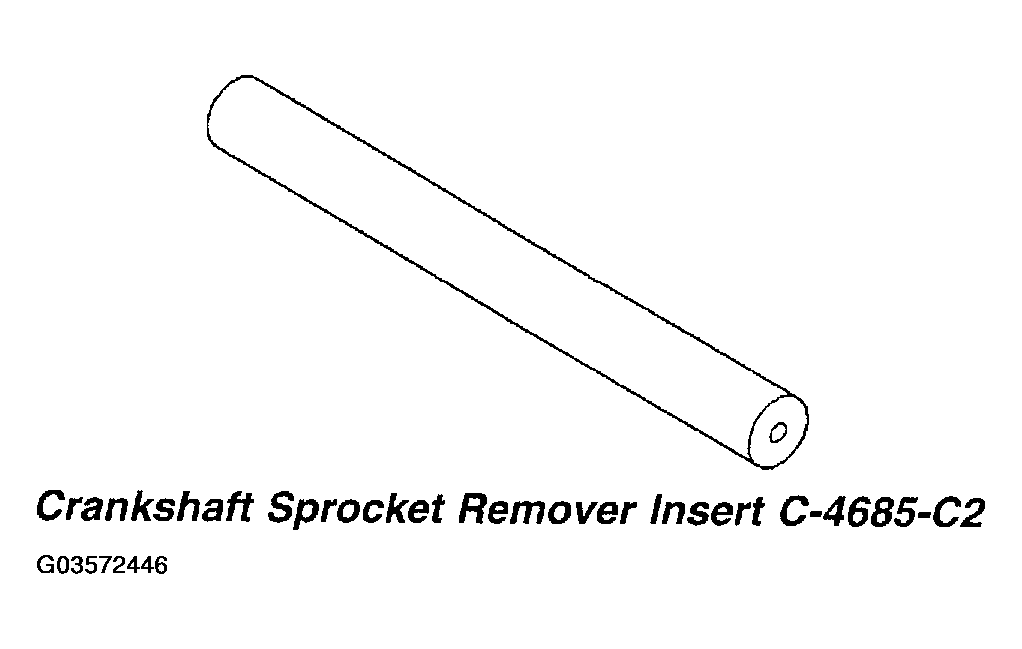

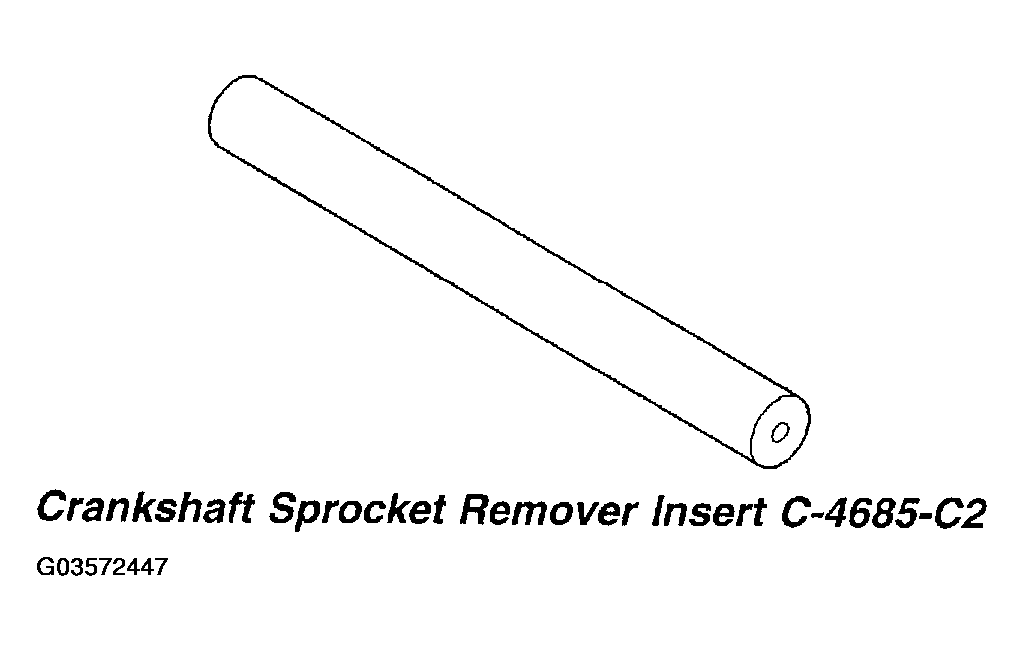

Fig 2: Identifying Crankshaft Sprocket Remover Insert C-4685-C2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Crankshaft Sprocket Remover Insert C-4685-C2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Crankshaft Seal Installer MD-998306
Courtesy of DAIMLERCHRYSLER CORP.

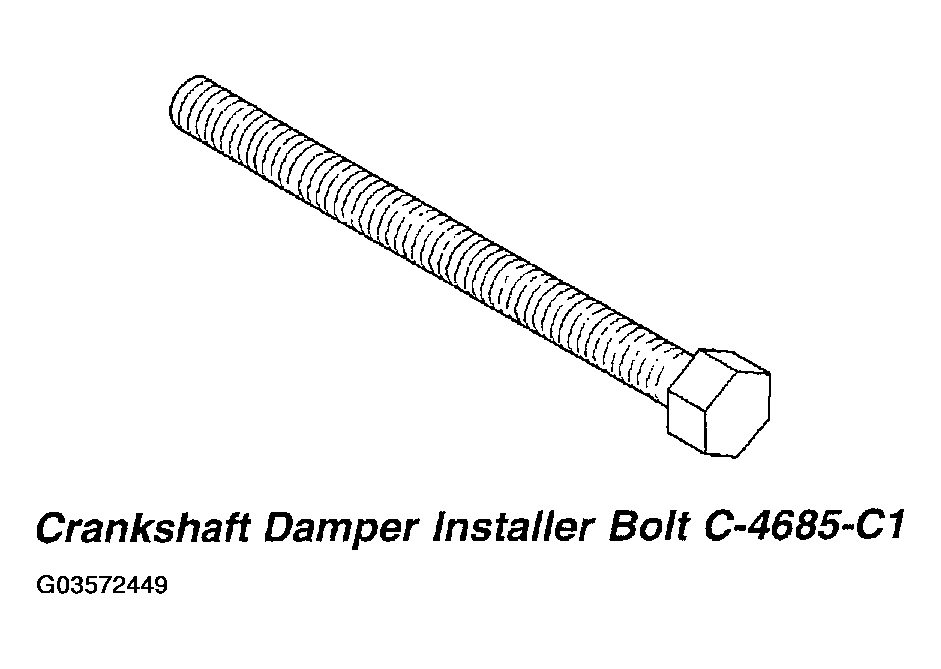

Fig 5: Identifying Crankshaft Damper Installer Bolt C-4685-C1
Courtesy of DAIMLERCHRYSLER CORP.

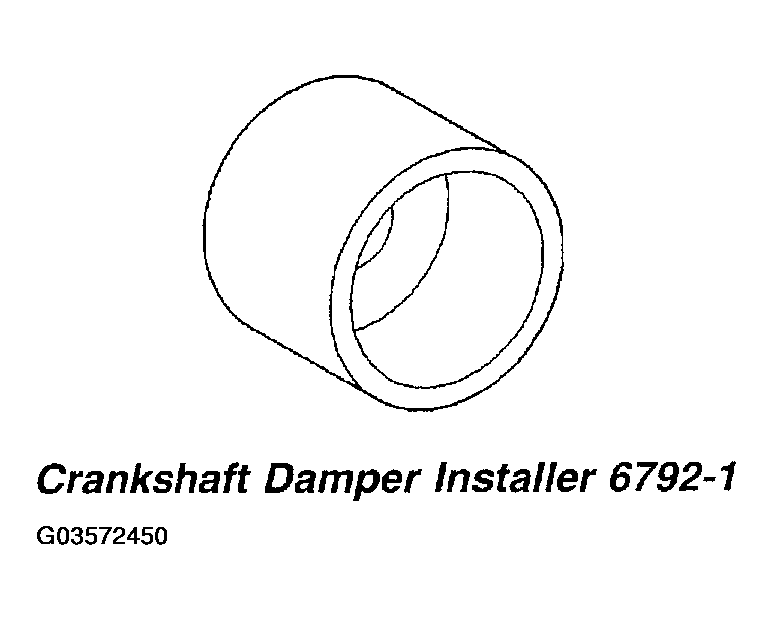

Fig 6: Identifying Crankshaft Damper Installer 6792-1
Courtesy of DAIMLERCHRYSLER CORP.

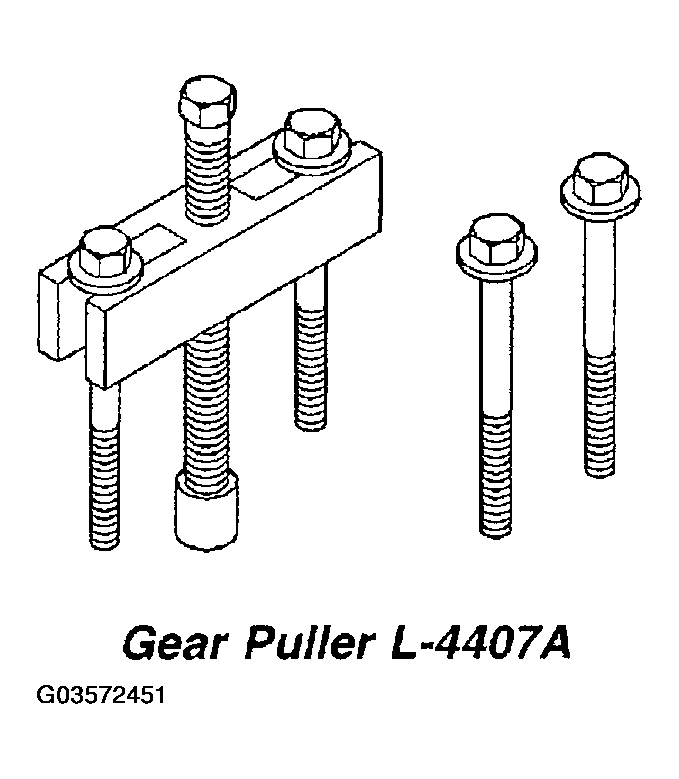

Fig 7: Identifying Gear Puller L4407A
Courtesy of DAIMLERCHRYSLER CORP.

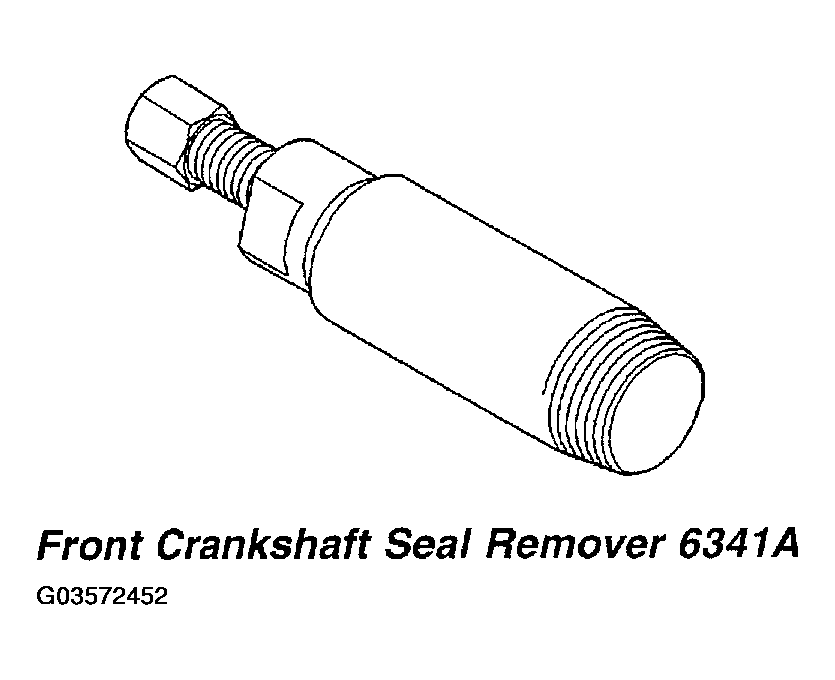

Fig 8: Identifying Front Crankshaft Seal Remover 6341A
Courtesy of DAIMLERCHRYSLER CORP.

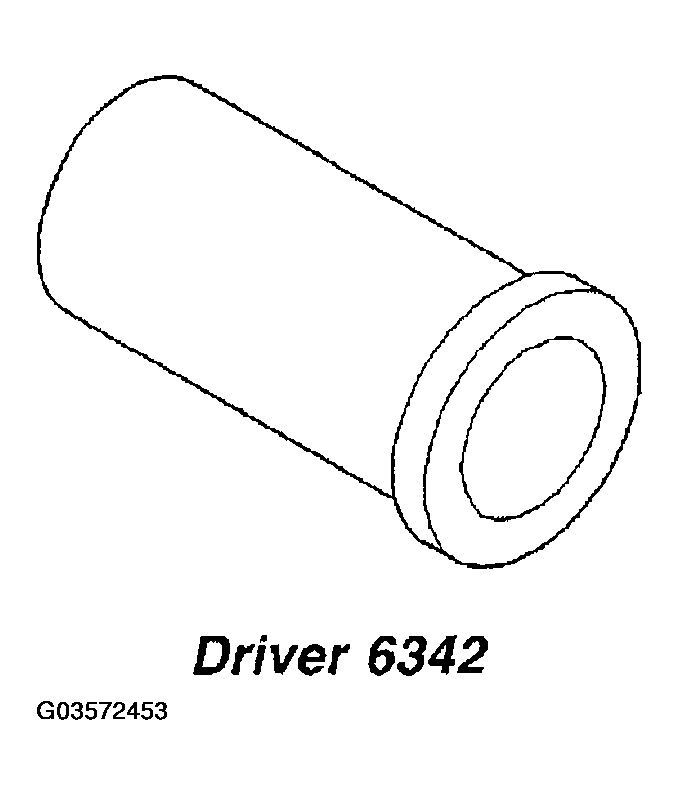

Fig 9: Identifying Driver 6342
Courtesy of DAIMLERCHRYSLER CORP.

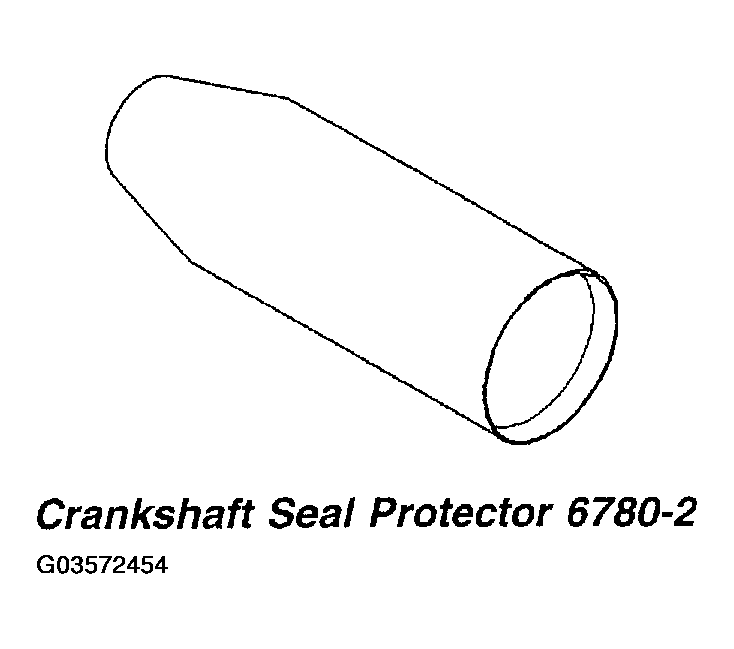

Fig 10: Identifying Crankshaft Seal Protector 6780-2
Courtesy of DAIMLERCHRYSLER CORP.

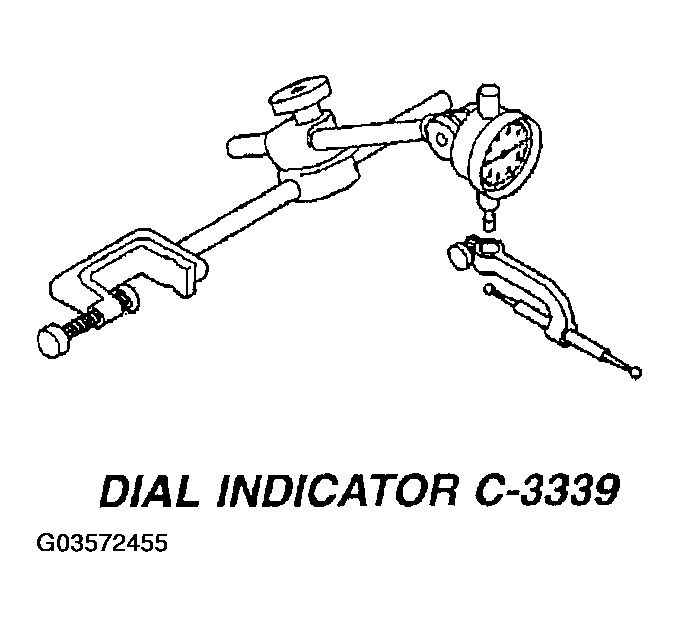

Fig 11: Identifying Dial Indicator C-3339
Courtesy of DAIMLERCHRYSLER CORP.

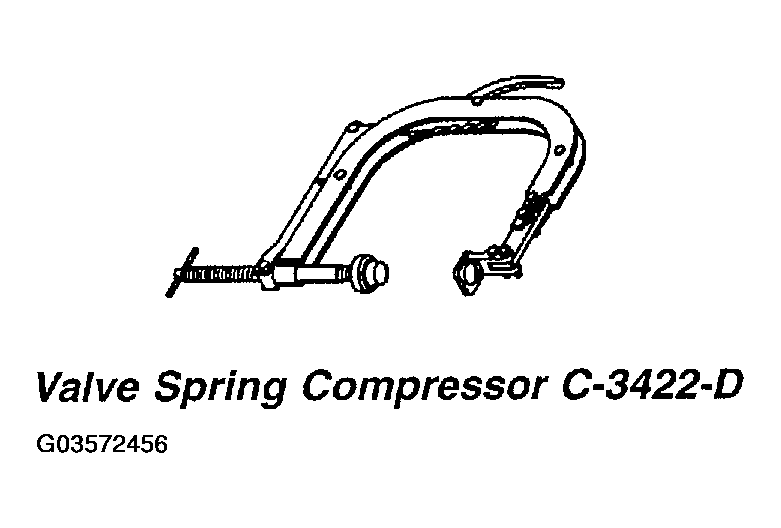

Fig 12: Identifying Valve Spring Compressor C-3422-D
Courtesy of DAIMLERCHRYSLER CORP.

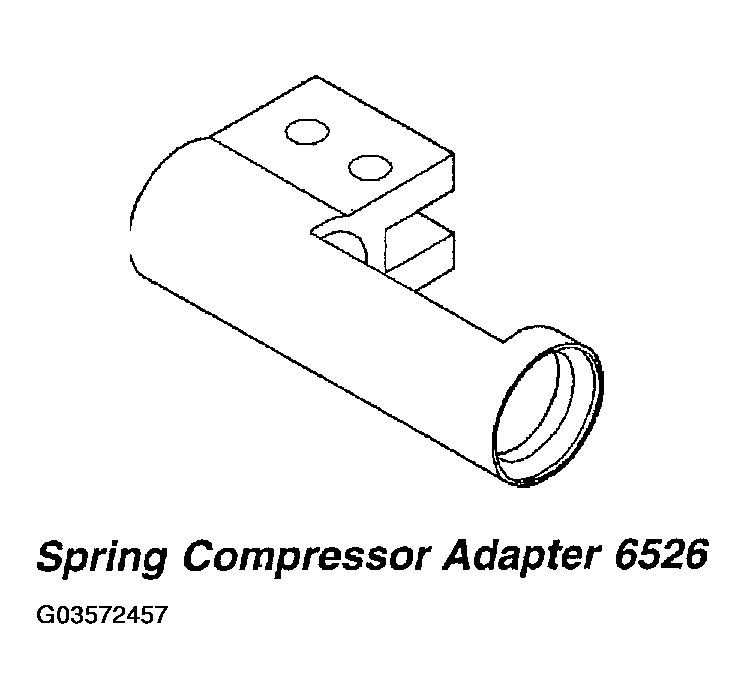

Fig 13: Identifying Spring Compressor Adapter 6526
Courtesy of DAIMLERCHRYSLER CORP.

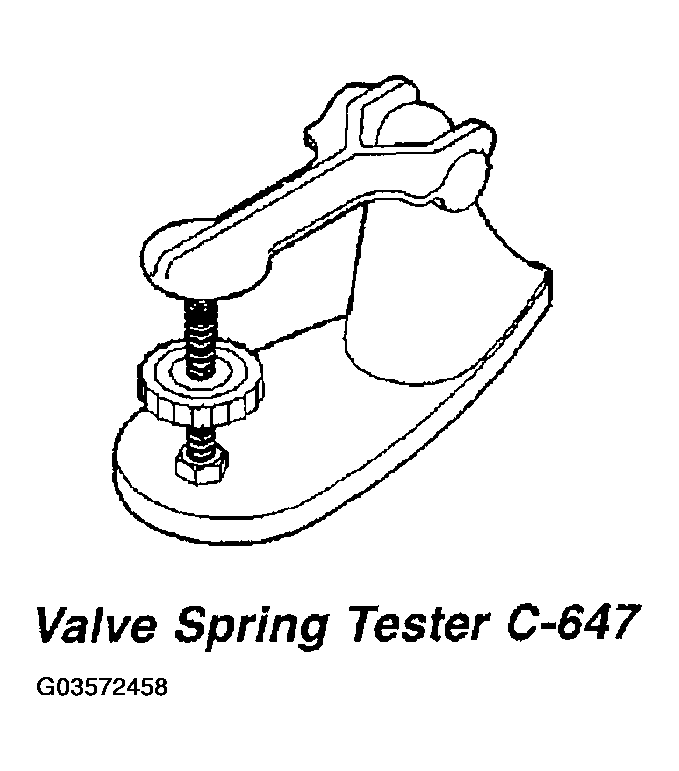

Fig 14: Identifying Valve Spring Testing C-647
Courtesy of DAIMLERCHRYSLER CORP.

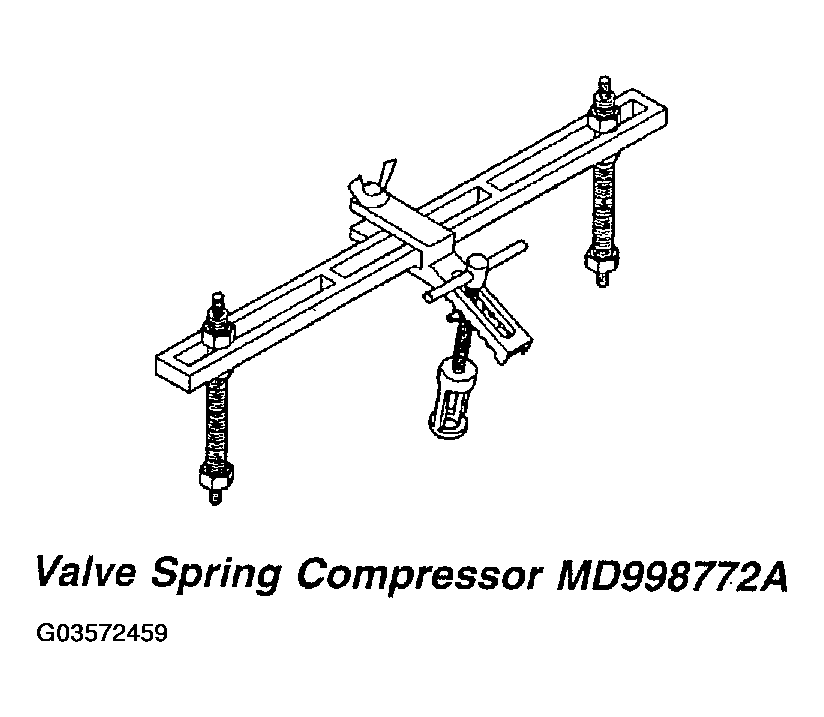

Fig 15: Identifying Valve Spring Compressor MD998772A
Courtesy of DAIMLERCHRYSLER CORP.

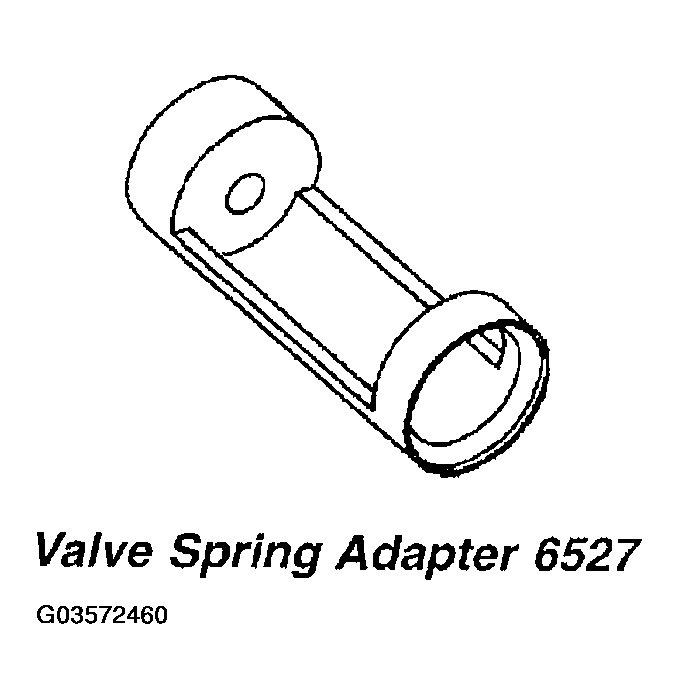

Fig 16: Identifying Valve Spring Adapter 6527
Courtesy of DAIMLERCHRYSLER CORP.

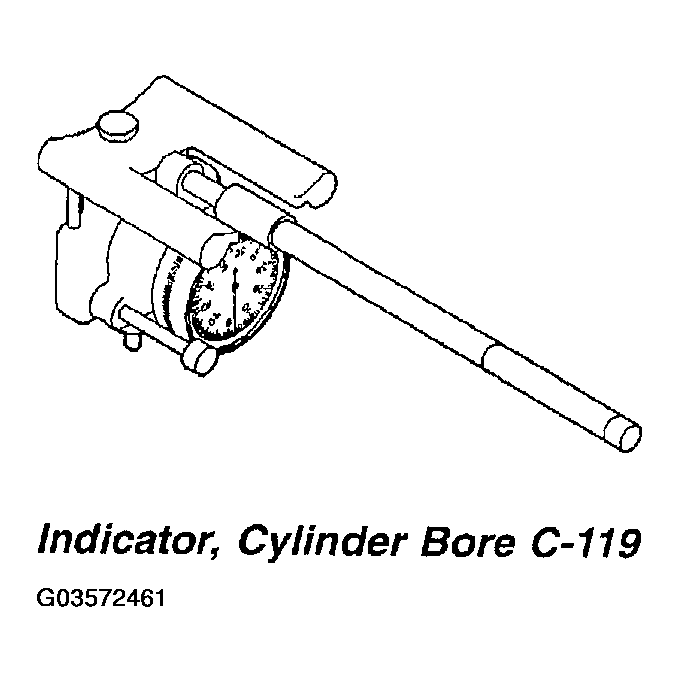

Fig 17: Identifying Indicator, Cylinder Bore C-119
Courtesy of DAIMLERCHRYSLER CORP.

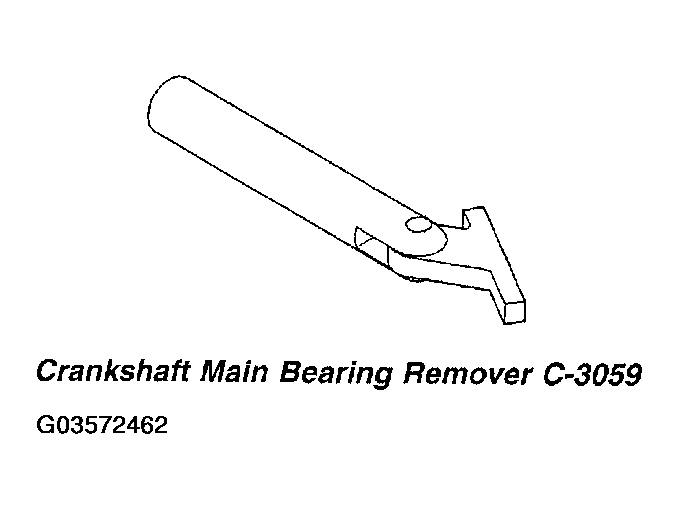

Fig 18: Identifying Crankshaft Main Bearing Remover C-3059
Courtesy of DAIMLERCHRYSLER CORP.

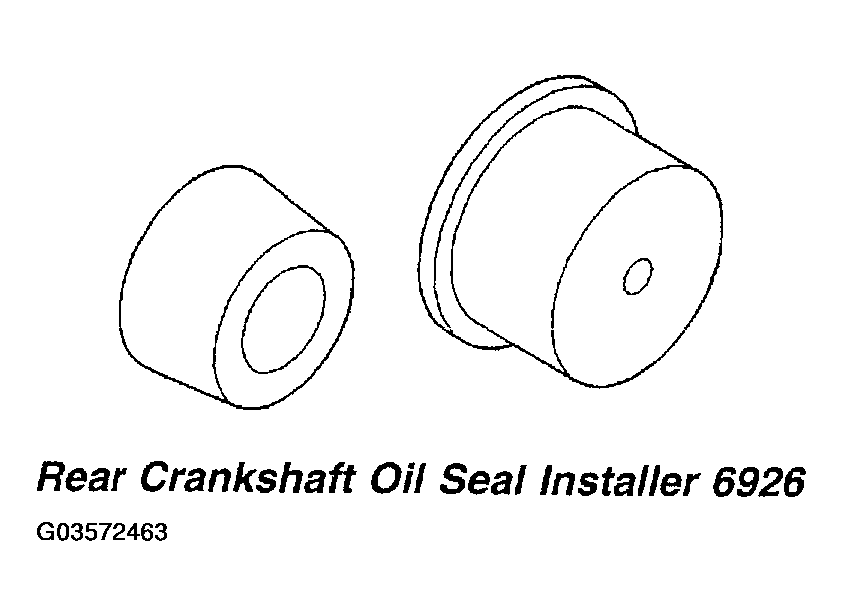

Fig 19: Identifying Rear Crankshaft Oil Seal Installer 6926
Courtesy of DAIMLERCHRYSLER CORP.

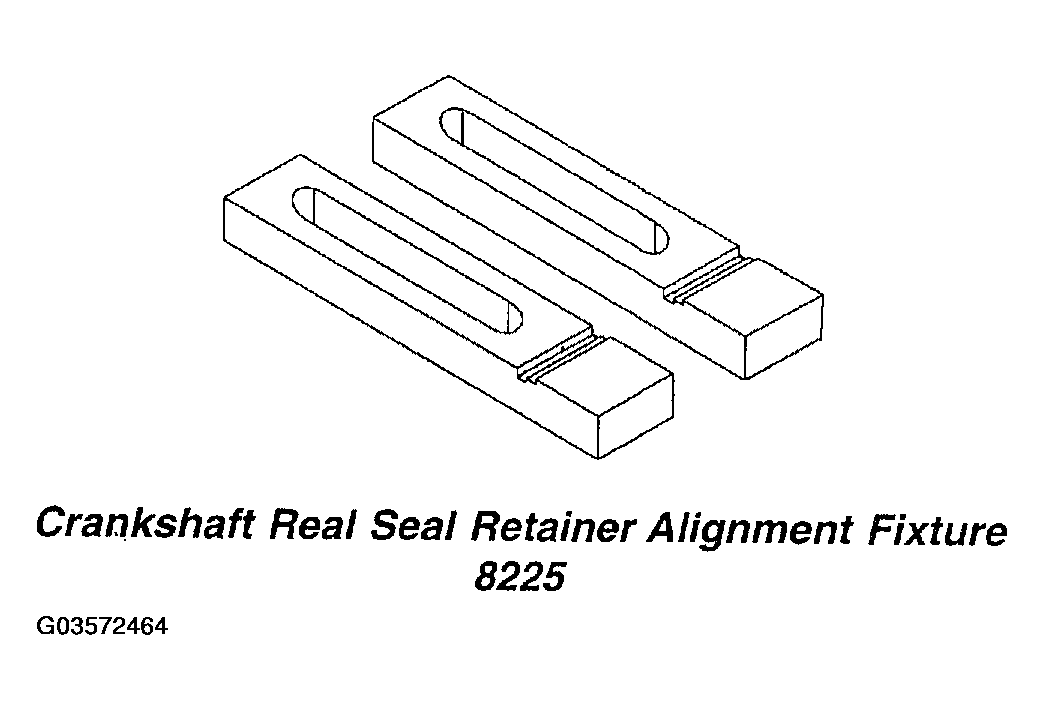

Fig 20: Identifying Crankshaft Real Seal Retainer Alignment Fixture 8225
Courtesy of DAIMLERCHRYSLER CORP.

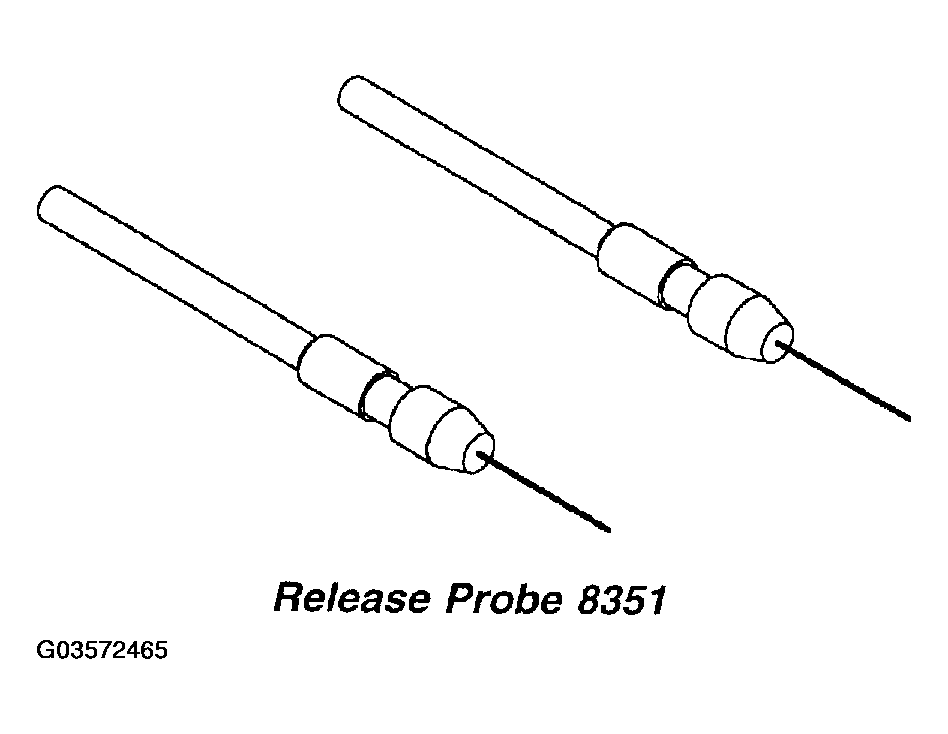

Fig 21: Identifying Release Probe 8351
Courtesy of DAIMLERCHRYSLER CORP.

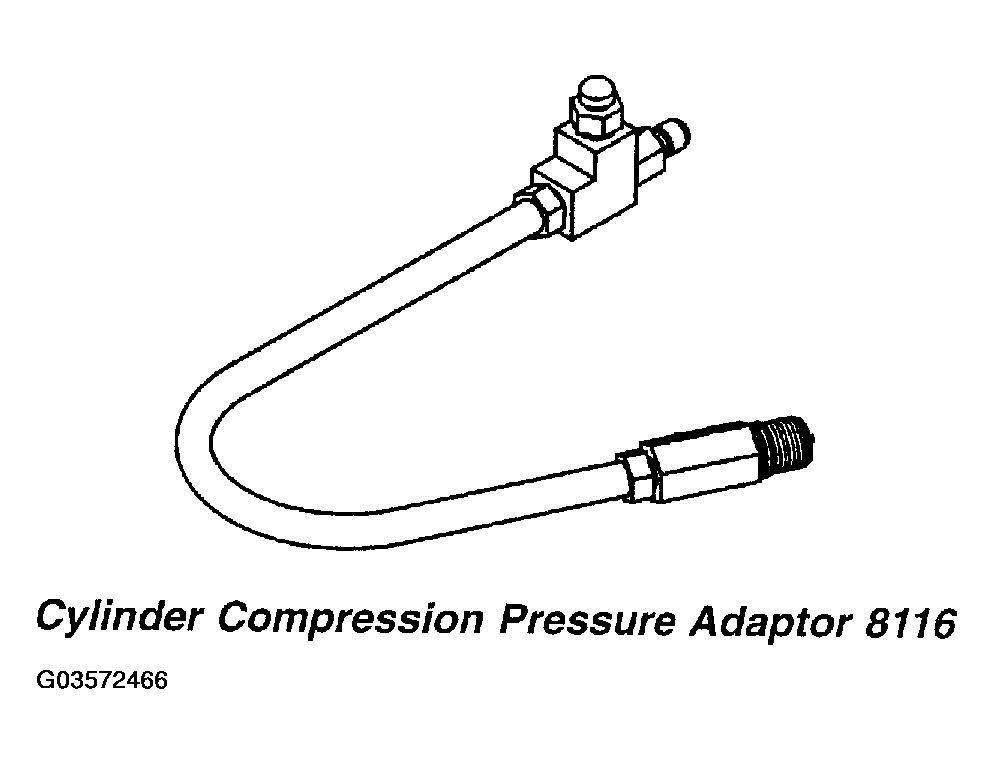

Fig 22: Identifying Cylinder Compression Pressure Adaptor 8116
Courtesy of DAIMLERCHRYSLER CORP.

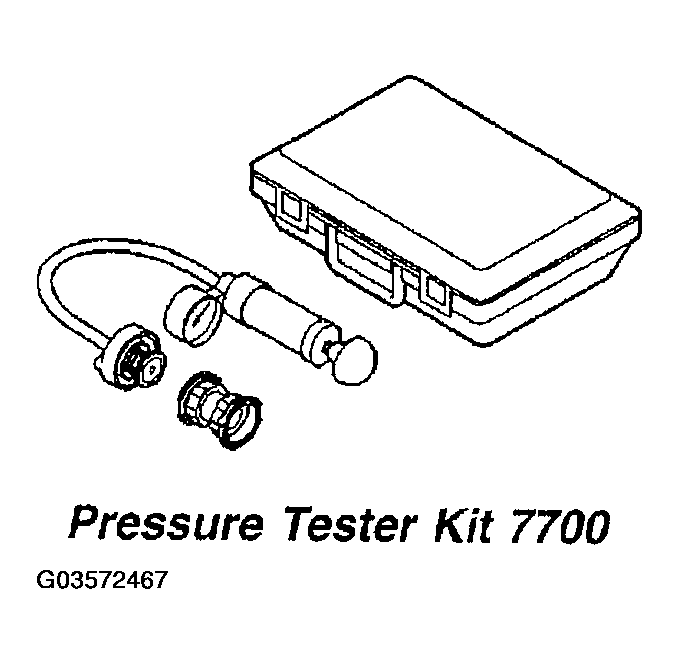

Fig 23: Identifying Pressure Tester Kit 7700
Courtesy of DAIMLERCHRYSLER CORP.

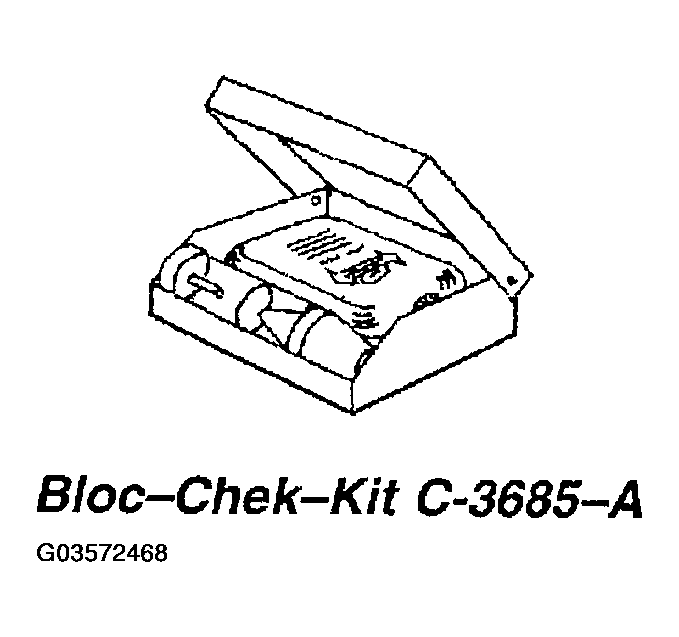

Fig 24: Identifying Bloc-Chek-Kit C-3685-A
Courtesy of DAIMLERCHRYSLER CORP.

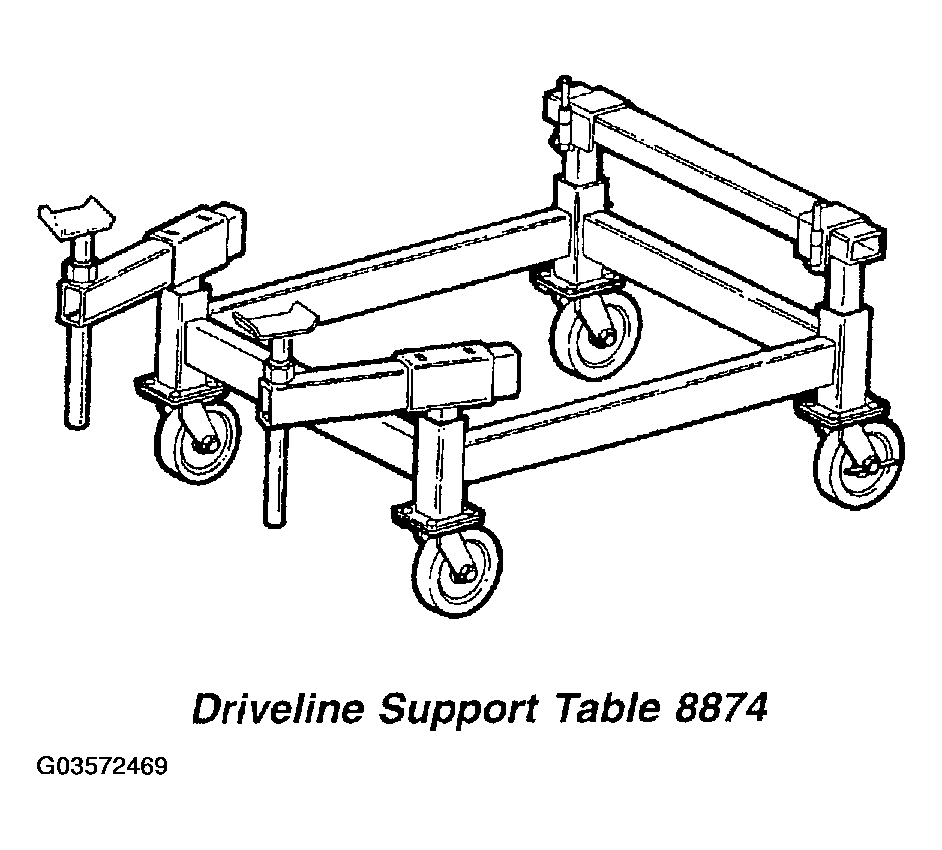

Fig 25: Identifying Driveline Support Table 8874
Courtesy of DAIMLERCHRYSLER CORP.

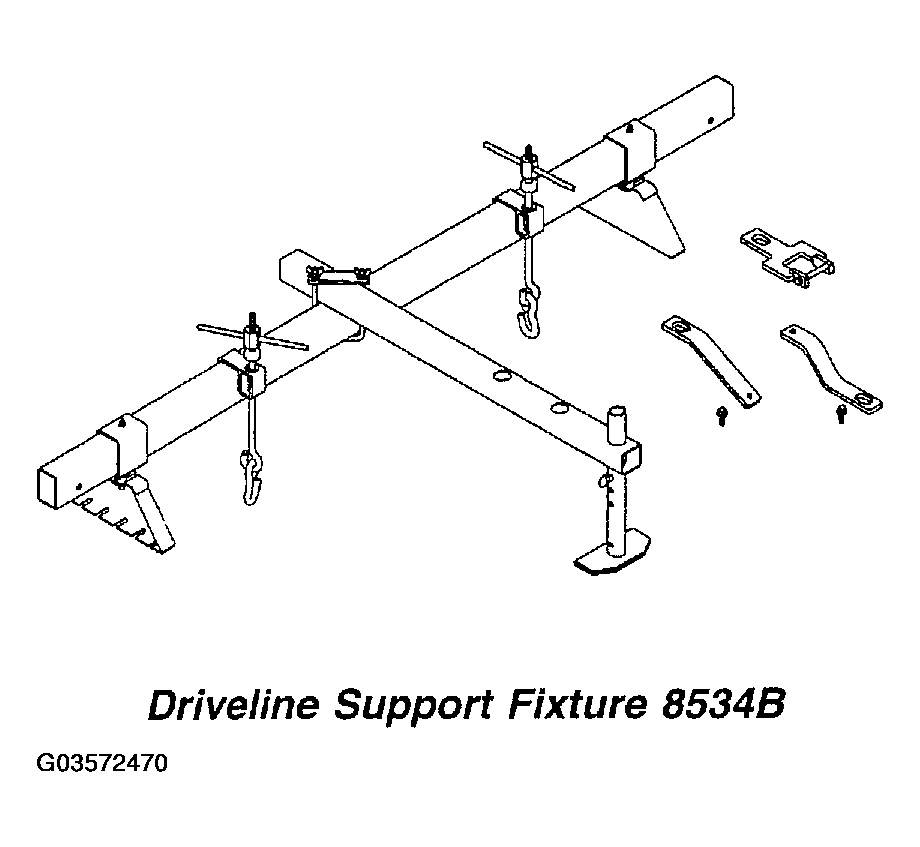

Fig 26: Identifying Driveline Support Fixture 8534B
Courtesy of DAIMLERCHRYSLER CORP.
