Engine 3.5L: Description

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

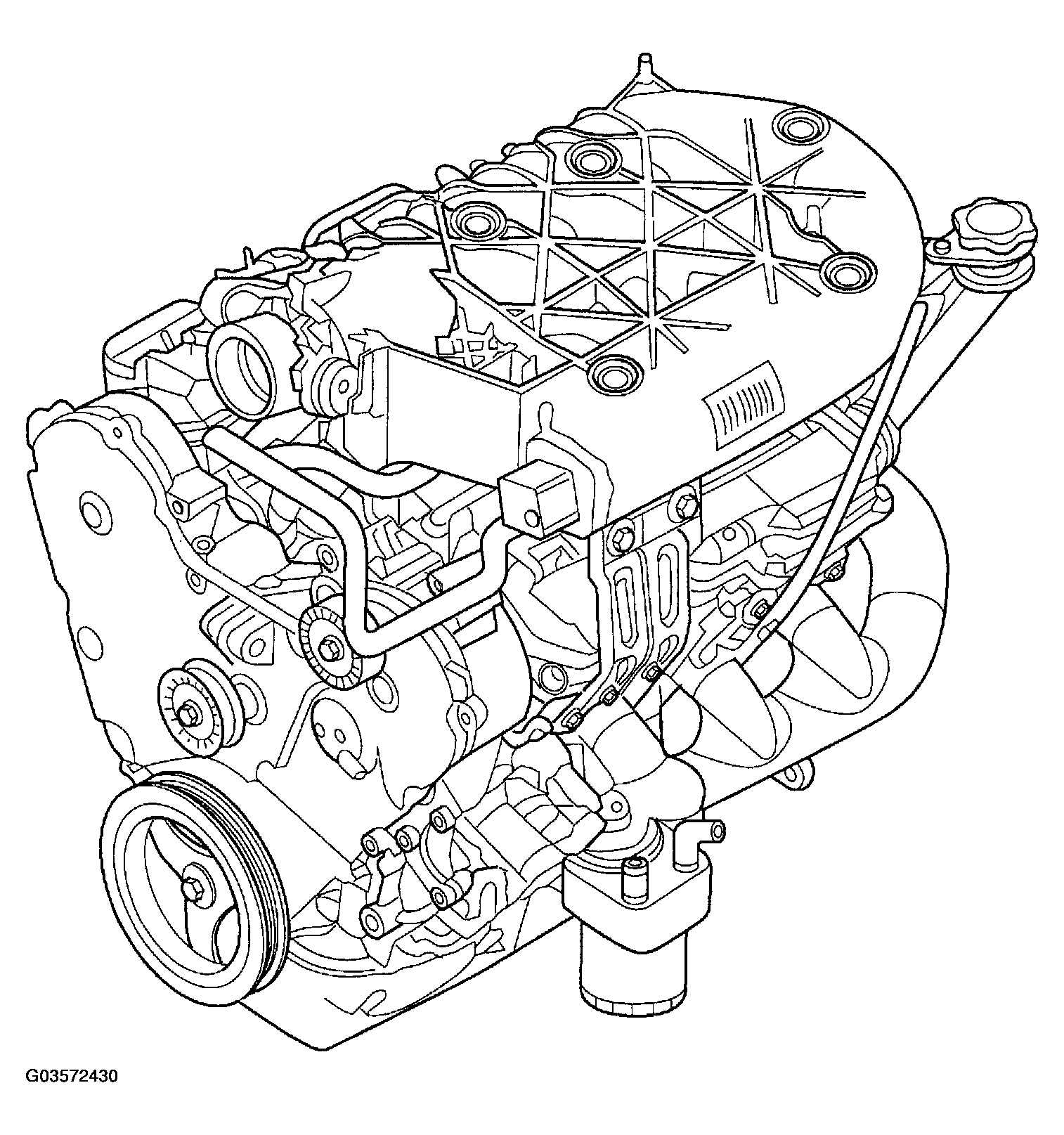

Fig 1: View Of 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

The 3.5 Liter (214 Cubic Inches) 60 degree V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig 1 ). The engine does not have provisions for a free wheeling valve train.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig 2 ). The firing order is 1-2-3-4-5-6.

The engine identification number is located on the rear of engine block just below the left cylinder head (Fig 3 ).

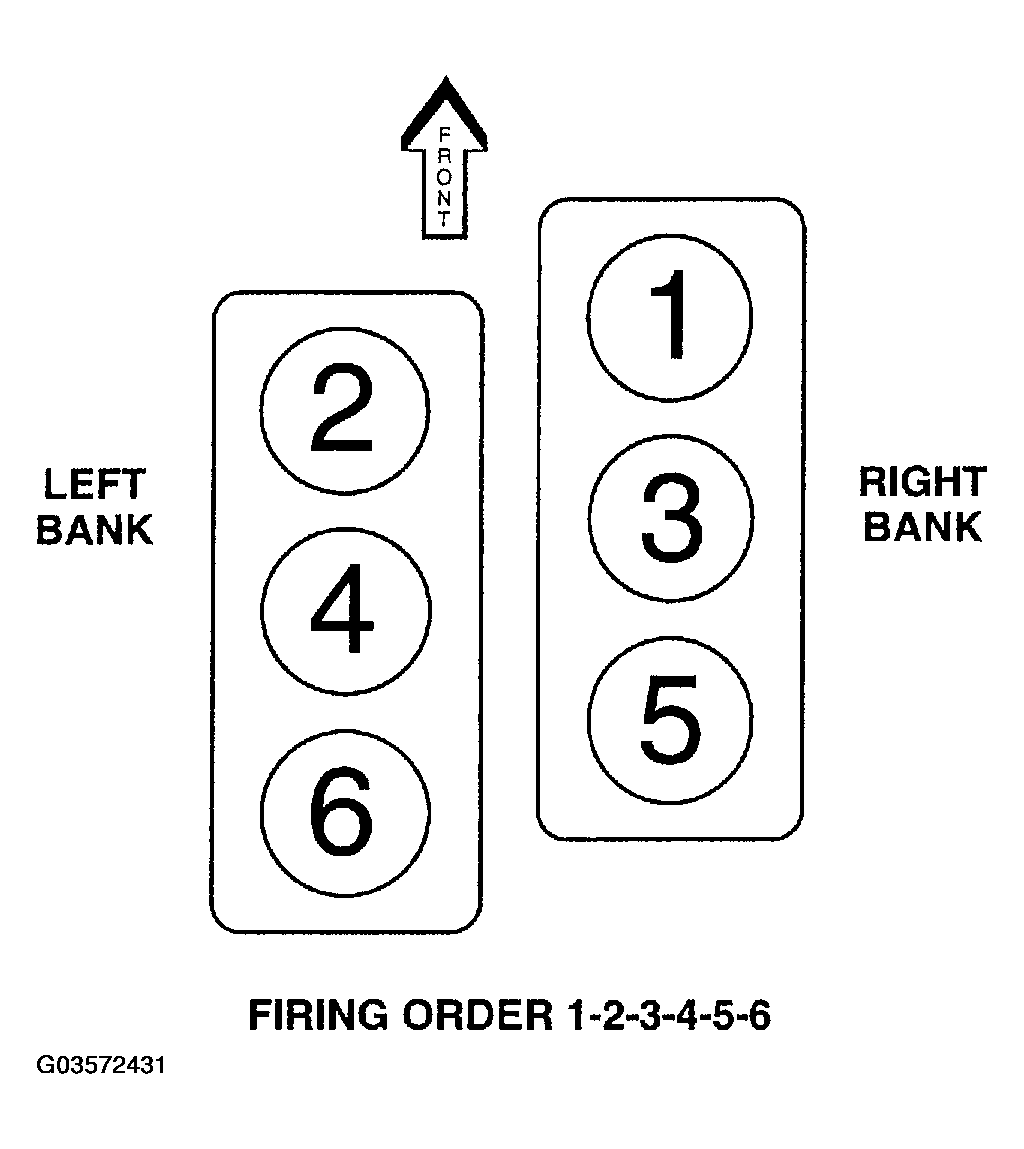

Fig 2: Identifying Cylinder Numbering and Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

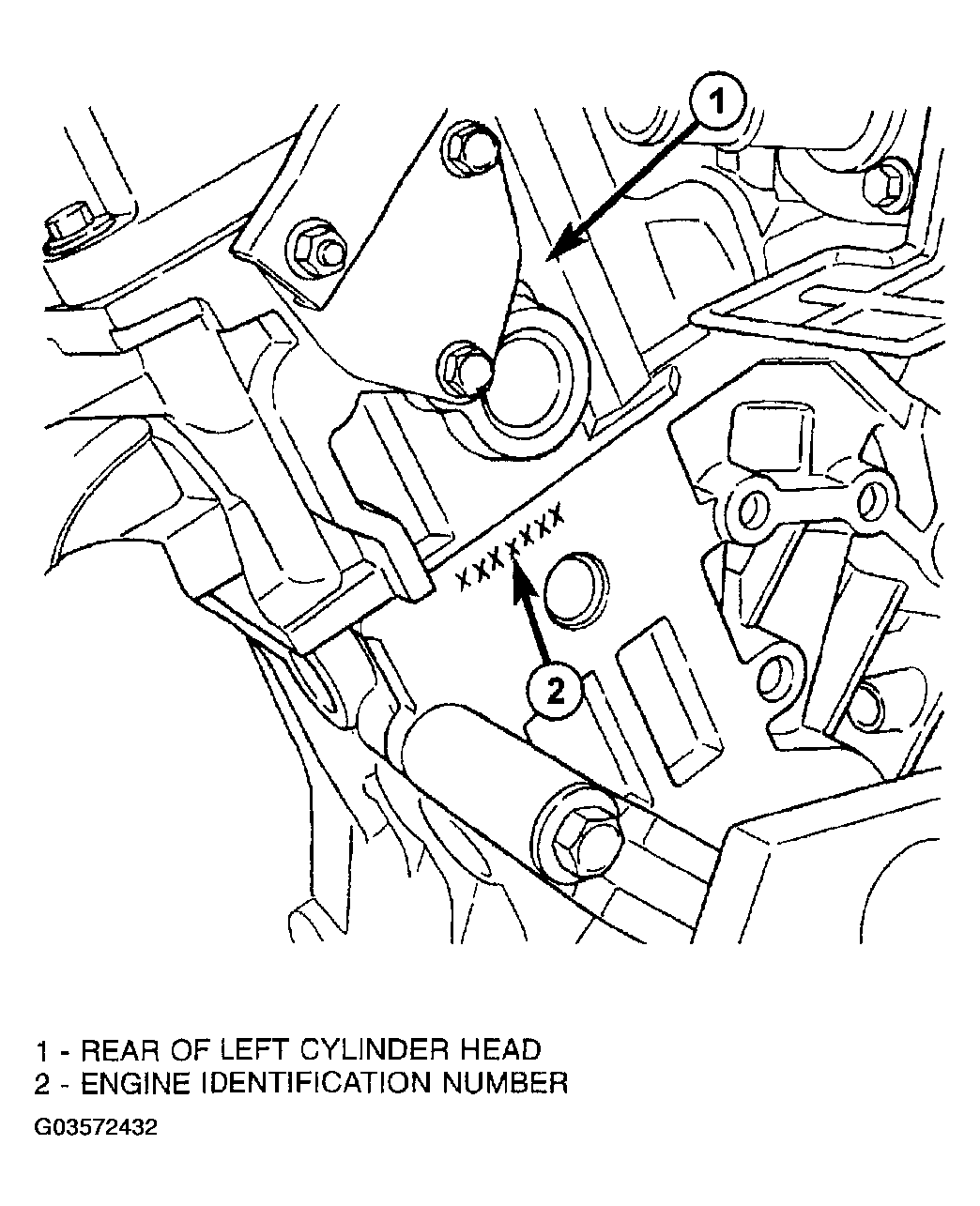

Fig 3: Locating Engine Identification Number

Courtesy of DAIMLERCHRYSLER CORP.
