Air Cleaner Element: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

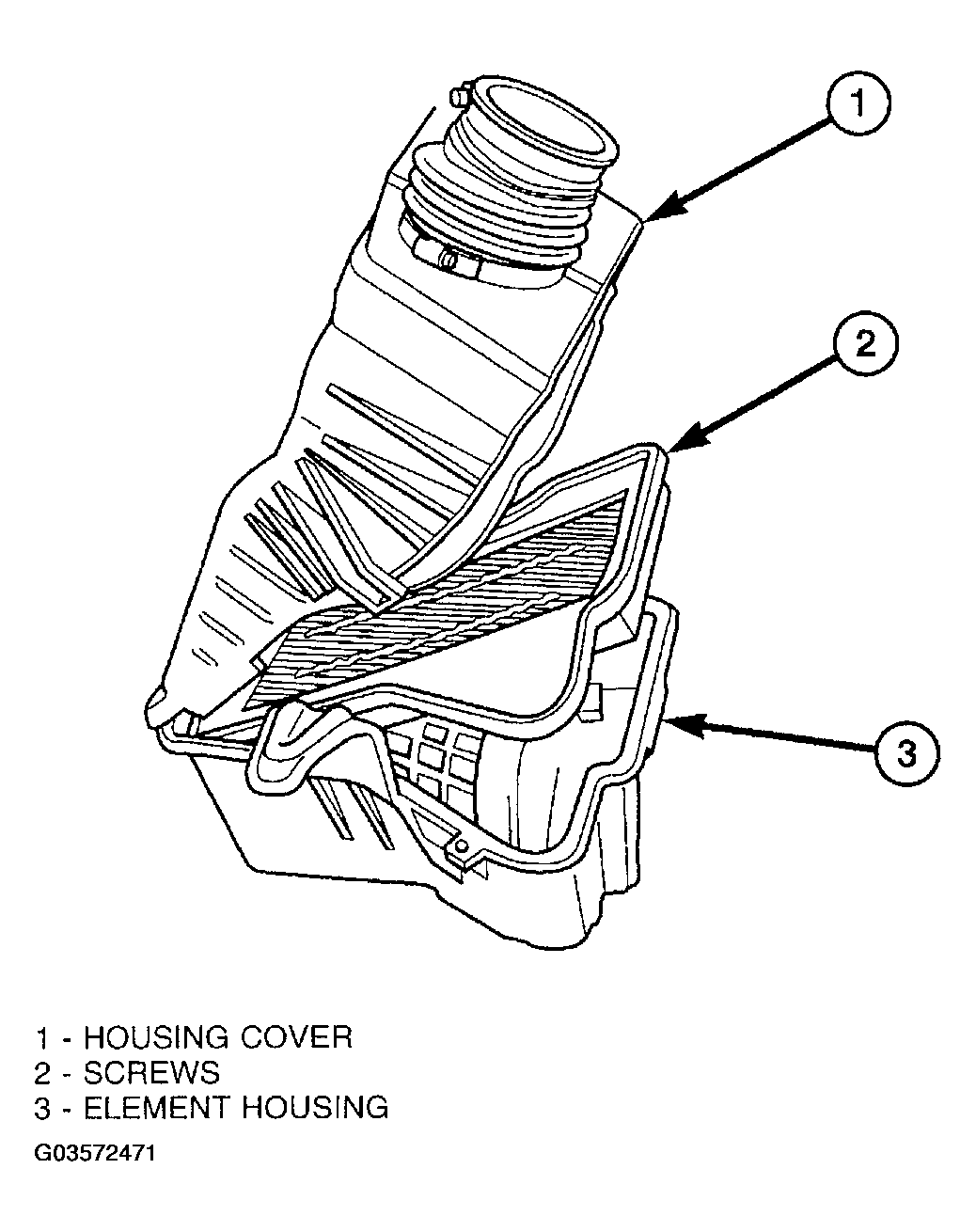

  1. Install the air filter element into air box (Figure ).
  2. Move cover so that the tabs insert into the air box.
  3. Seat cover onto element housing and tighten the screws.
  4. Reconnect the air inlet tube and tighten clamp.
  5. Connect the intake air temperature sensor wire harness connector.
