Hose Clamps: Operation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
The worm type hose clamp uses a specified torque value to maintain proper tension on a hose connection.

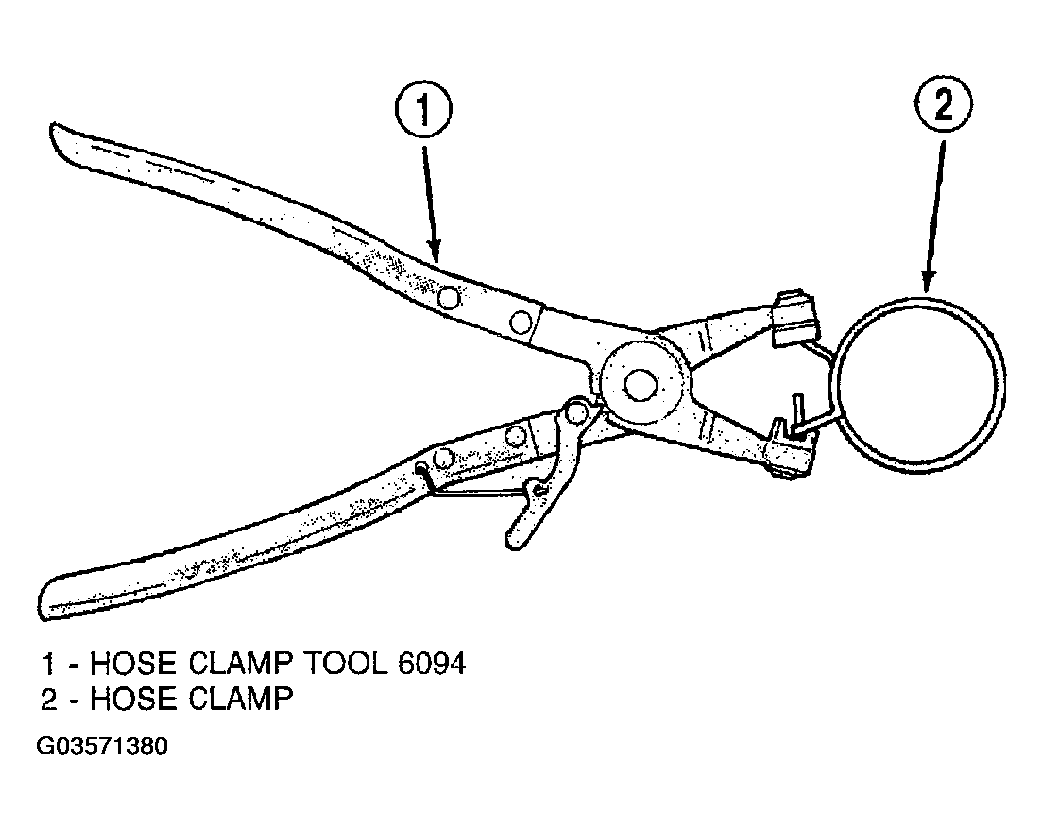

The spring type hose clamp applies constant tension on a hose connection. To remove a spring type hose clamp, use Special Tool 6094 or equivalent, constant tension clamp pliers (Fig 1 ) to compress the hose clamp.
