Hood Support: Disposal

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

DISPOSE OF HOOD SUPPORT ASSY LH

Horizontally fix the stay in a vise with the piston-rod pulled out.

Wearing safety glasses, gradually cut a part between A and B as shown in Fig 1 using a metal saw to gradually release the gas.

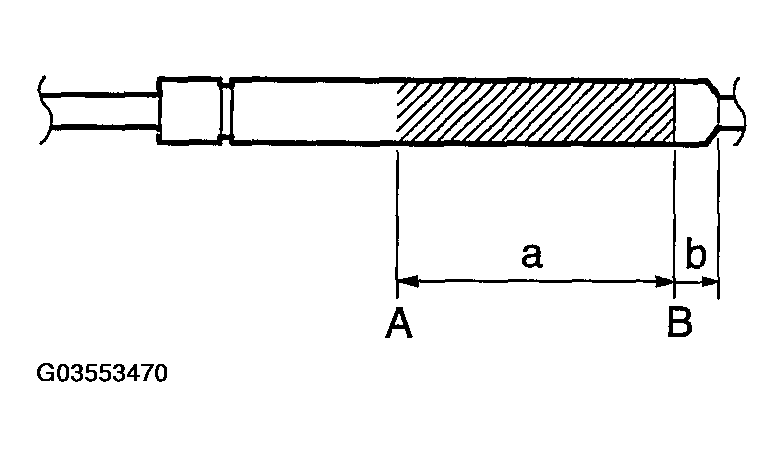

Fig 1: Cutting Part Between A & B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Specification:

MEASUREMENT SPECIFICATION

Area	Measurement
a	80 mm (3.15 in.)
b	20 mm (0.80 in.)

CAUTION: Be careful to cover the area that is being cut as there is a possibility that metal debris could be blown out by the gas (the gas is colorless, odorless and harmless).
