Automatic Transaxle (U241E): Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

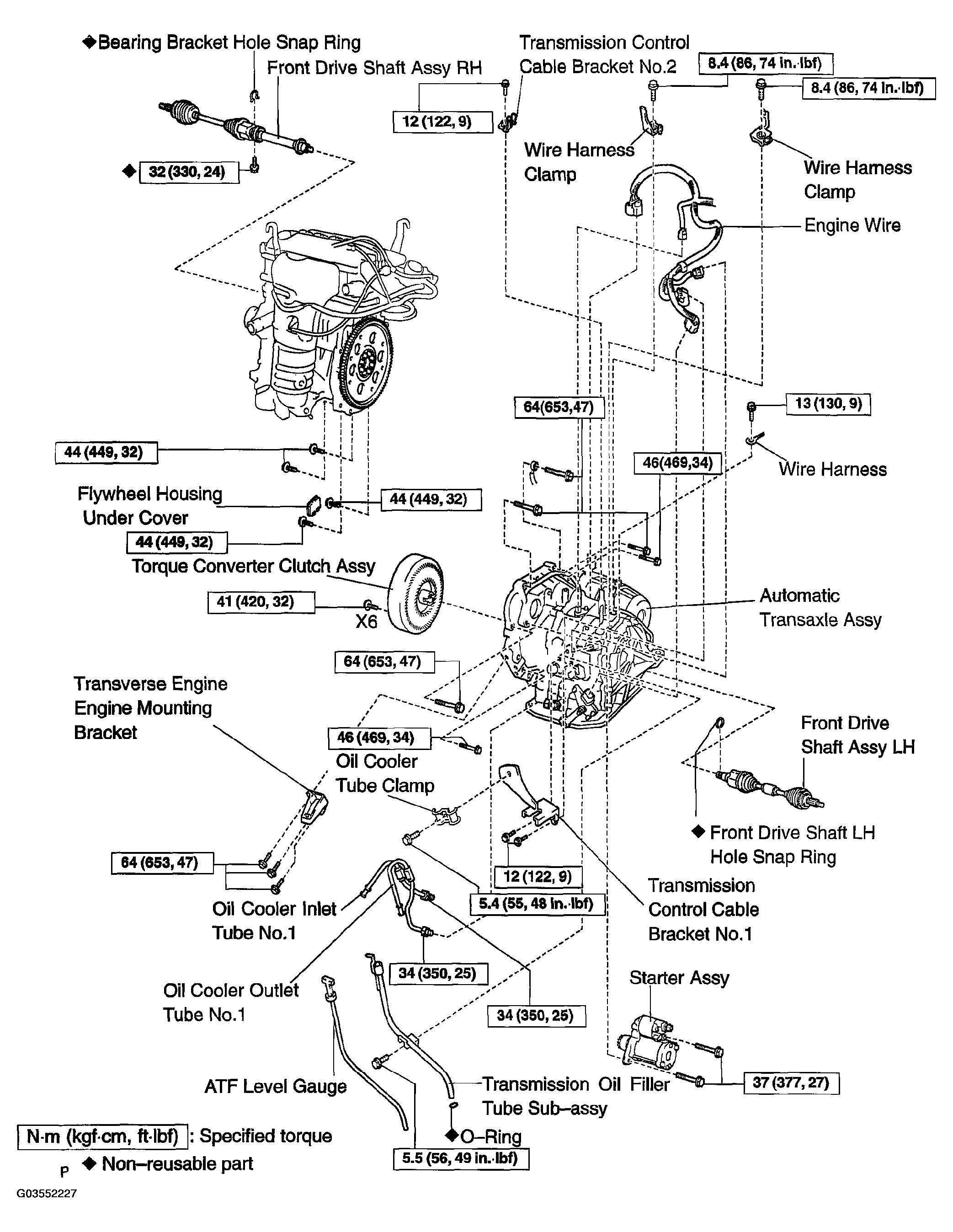

Fig 1: Identifying Automatic Transaxle Components (U241E)
G03552227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
